Chemicals Resistant Single Core Solar Cable , XLPE Insulation Solar DC Cable 10mm2

China Chemicals Resistant Single Core Solar Cable , XLPE Insulation Solar DC Cable 10mm2 supplier
Chemicals Resistant Single Core Solar Cable , XLPE Insulation Solar DC Cable 10mm2 supplier Chemicals Resistant Single Core Solar Cable , XLPE Insulation Solar DC Cable 10mm2 supplier

Large Image :  Chemicals Resistant Single Core Solar Cable , XLPE Insulation Solar DC Cable 10mm2

Product Details:

Place of Origin: China
Brand Name: Pntech
Certification: TUV/CE/CQC/ISO9001
Model Number: PV1-F 1x10mm2

Payment & Shipping Terms:

Minimum Order Quantity: 100m
Price: Negotiation
Packaging Details: 100m/roll, two rolls per carton, Carton size: 42*42*22cm Also pack according to customer's requirements
Delivery Time: 3-15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 70000 Meters per Day
Contact Now
Detailed Product Description
Product Name: 10mm² DC Solar Cable Insulation Material: XLPE
Conductor: Tinned Copper Construction: 80/0.4mm
Thickness: 0.8mm Resistance:: 1.95 Ω/km (MAX. At 20℃)
Cable OD: 8.5mm Color: Black Or Red



TUV CE single core solar XLPE Cable 10mm2 PV 25years warranty 1000V AC 1800V DC



PV Photovoltaic Cable DC Solar Power Cable Consruction:



Conductor: Class 5 flexible tinned copper conductor
Insulation: Halogen-free cross-linked compound
Sheath: Halogen-free cross-linked, flame retardant compound, Black



PV Photovoltaic Cable DC Solar Power Cable Application



These cables are designed for connecting photovoltaic system components inside and outside

of buildings and equipment with high mechanical requirements and extreme weather

conditions.



PV Photovoltaic Cable DC Solar Power Cable Standards

DIN EN 50618
Fire-resistance performance: IEC 60332-1
Low smoke emission : EN/IEC 61034-2
Halogen free according to EN 50525-1, Annex B
Low corrosivity of gases according to EN 50267-2-2, IEC 60754-2



PV Photovoltaic Cable DC Solar Power CableTechnical Character:


Working voltage:AC: 600/1000V DC: 1800V
Maxium Voltage:1.8KV
Test Voltage: 6.5kV AC
Working Temperature:-40-90 º C
Bending Radiu:
Fixed: 4 x overall diameter
Flexed: 5 x overall diameter
Max. Conductor temperature: 120º C
Short-circuit max. Conductor temperature:250°C
Insulation resistance: 10 MΩ x km



No. of Cores×Nominal Cross Section No. of Stranding Nominal Conductor Diameter Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diamater Nominal Weight
No.×mm2 - mm mm mm mm kg/km
1×1.5 30/0.25 1.58 0.7 0.8 4.8 40
1×2.5 50/0.25 2.04 0.7 0.8 5.5 50
1×4.0 56/0.30 2.59 0.7 0.8 6.1 70
1×6.0 84/0.30 3.17 0.7 0.8 7.0 80
1×10 80/0.40 4.07 0.7 0.8 8.5 130
1×16 120/0.40 5.22 0.7 0.9 10.2 200
1×25 199/0.40 6.51 0.9 1 12.5 290
1×35 279/0.40 7.71 0.9 1.1 14 400
1×50 396/0.40 9 1 1.2 16.3 550
1×70 360/0.50 10.8 1.1 1.2 18.7 750
1×95 475/0.50 12.6 1.1 1.3 20.8 970
1×120 608/0.50 14.2 1.2 1.3 22.8 1220
1×150 756/0.50 15.8 1.4 1.4 25.5 1510
1×185 925/0.50 17.4 1.6 1.6 28.5 1850
1×240 1221/0.50 20.4 1.7 1.7 32.1 2400



Features:


1) Electron beam cross-linked materials do not melt or flow, even at high temperature, high resistance against heat, cold,abrasion, UV resistant, ozone and hydrolyses.
2) These cables provide the means to interconnect between photovoltaic(PV) panels and from panels to the inverter.
3) They operate at DC voltage and provide long life in exposed conditions.



Name PV Cable
The product description Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
Product features Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F
18, 16 and 14, 12, 10, 8, 6, 4, 2 mm ^ 2 PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
Detailed parameters Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.



FAQ:



1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please

call us to give complete specifications about the cable. price will be calculated soon.

2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?
We accept T/T (bank transfer), L/C

4. Do you accept the customized order?
Yes, we do.

5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

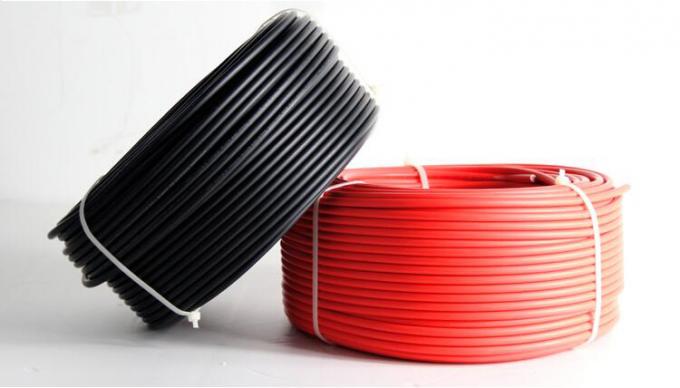

Picture of 10mm² PV DC Solar XLPE Cable



Chemicals Resistant Single Core Solar Cable , XLPE Insulation Solar DC Cable 10mm2Chemicals Resistant Single Core Solar Cable , XLPE Insulation Solar DC Cable 10mm2
