Product Details
Place of Origin: China
Brand Name: Pntech
Certification: TUV/CE/CQC/ISO9001
Model Number: PV1-F 1x10mm2
Payment & Shipping Terms
Minimum Order Quantity: 100m
Price: Negotiation
Packaging Details: 100m/roll, two rolls per carton, Carton size: 42*42*22cm Also pack according to customer's requirements
Delivery Time: 3-15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 70000 Meters per Day
Product Name: |
10mm² DC Solar Cable |
Insulation Material: |
XLPE |
Conductor: |
Tinned Copper |
Construction: |
80/0.4mm |
Thickness: |
0.8mm |
Resistance:: |
1.95 Ω/km (MAX. At 20℃) |
Cable OD: |
8.5mm |
Color: |
Black Or Red |
Product Name: |
10mm² DC Solar Cable |
Insulation Material: |
XLPE |
Conductor: |
Tinned Copper |
Construction: |
80/0.4mm |
Thickness: |
0.8mm |
Resistance:: |
1.95 Ω/km (MAX. At 20℃) |
Cable OD: |
8.5mm |
Color: |
Black Or Red |
TUV CE 10mm2 PV single core DC Solar Cable Tinned copper XLPE double insulation
The advantage of 10mm2 DC solar cable
1. 99.9% high-purity oxygen-free copper: high quality tin-plated copper, high purity,
anti-aging, high electrical conductivity, low loss, strong current carrying capacity, high
corrosion resistance, and can adapt to outdoor harsh environment.
2, low eccentricity: thickness uniformity, effectively prevent the current breakdown fire,
to ensure safety.
3. Double protection: The solar photovoltaic cable adopts insulation and Jacket double
protection structure to extend the service life of the cable.
4, high-performance polymer materials: Insulating and jacket all use environmentally
friendly low-smoke halogen-free flame-retardant cross-linked polyolefin materials, with
wear-resistant, high temperature, oil, ozone, UV, high flame retardant properties.
5, strong flexibility: cable has a pressure, bending, strong toughness.
6, long service life: normal outdoor use, service life> 25 years
7, advanced equipment: The company has advanced foreign production, scientific research
equipment, passed the ISO9001-2000 quality management system certification, IATF16949:
2016 quality management system certification.
PV Photovoltaic Cable DC Solar Power CableTechnical Character:
Working voltage:AC: 600/1000V DC: 1800V
Maxium Voltage:1.8KV
Test Voltage: 6.5kV AC
Working Temperature:-40-90 º C
Bending Radiu:
Fixed: 4 x overall diameter
Flexed: 5 x overall diameter
Max. Conductor temperature: 120º C
Short-circuit max. Conductor temperature:250°C
Insulation resistance: 10 MΩ x km
| No. of Cores×Nominal Cross Section | No. of Stranding | Nominal Conductor Diameter | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diamater | Nominal Weight |
| No.×mm2 | - | mm | mm | mm | mm | kg/km |
| 1×1.5 | 30/0.25 | 1.58 | 0.7 | 0.8 | 4.8 | 40 |
| 1×2.5 | 50/0.25 | 2.04 | 0.7 | 0.8 | 5.5 | 50 |
| 1×4.0 | 56/0.30 | 2.59 | 0.7 | 0.8 | 6.1 | 70 |
| 1×6.0 | 84/0.30 | 3.17 | 0.7 | 0.8 | 7.0 | 80 |
| 1×10 | 80/0.40 | 4.07 | 0.7 | 0.8 | 8.5 | 130 |
| 1×16 | 120/0.40 | 5.22 | 0.7 | 0.9 | 10.2 | 200 |
| 1×25 | 199/0.40 | 6.51 | 0.9 | 1 | 12.5 | 290 |
| 1×35 | 279/0.40 | 7.71 | 0.9 | 1.1 | 14 | 400 |
| 1×50 | 396/0.40 | 9 | 1 | 1.2 | 16.3 | 550 |
| 1×70 | 360/0.50 | 10.8 | 1.1 | 1.2 | 18.7 | 750 |
| 1×95 | 475/0.50 | 12.6 | 1.1 | 1.3 | 20.8 | 970 |
| 1×120 | 608/0.50 | 14.2 | 1.2 | 1.3 | 22.8 | 1220 |
| 1×150 | 756/0.50 | 15.8 | 1.4 | 1.4 | 25.5 | 1510 |
| 1×185 | 925/0.50 | 17.4 | 1.6 | 1.6 | 28.5 | 1850 |
| 1×240 | 1221/0.50 | 20.4 | 1.7 | 1.7 | 32.1 | 2400 |
Features:
1) Electron beam cross-linked materials do not melt or flow, even at high temperature, high resistance against heat, cold,abrasion, UV resistant, ozone and hydrolyses.
2) These cables provide the means to interconnect between photovoltaic(PV) panels and from panels to the inverter.
3) They operate at DC voltage and provide long life in exposed conditions.
| Name | PV Cable |
| The product description | Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries. |
| Product features | Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant. |
| Flame retardant, cutting resistance and penetration resistance. | |
| Cable protection level Ⅱ level. | |
| With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus. | |
| It conforms to ROHS, and the insulation resistance is small after immersion. | |
| Electrical | 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km |
| 2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm | |
| 3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω. | |
| Cable structure | Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F |
| 18, 16 and 14, 12, 10, 8, 6, 4, 2 mm ^ 2 PV wire | |
| Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer. | |
| Sheath: low smoke and halogen free material thickness > 0.5mm. | |
| Detailed parameters | Ambient temperature: - 40 ℃ ~ + 90 ℃ |
| The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃) | |
| Limited voltage: AC0.6/1kv dc1.8kv. |
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please
call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

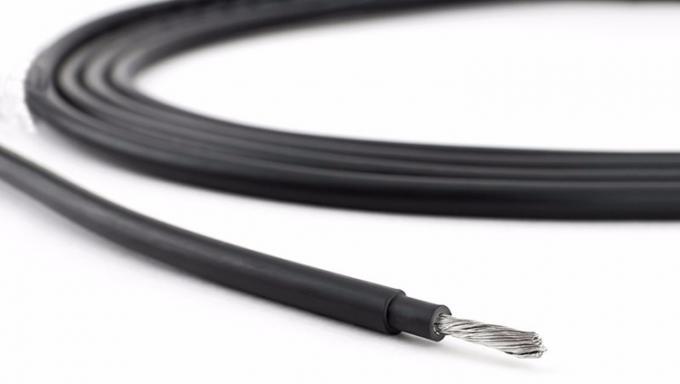

Picture of 10mm² PV Photovoltaic DC Solar Cable
