Double Protection 6mm Single Core Cable Adapt To Outdoor Harsh Environment
| Place of Origin | China |
|---|---|
| Brand Name | Pntech |
| Certification | TUV/CE/ISO9001 |
| Model Number | H1Z2Z2-K 1x6mm2 |
| Minimum Order Quantity | 200m / roll |
| Price | Negotiation |
| Packaging Details | 200m/roll, two rolls per carton, Carton size: 42*42*22cm Also pack according to customer's requirements |
| Delivery Time | 3-7days |
| Payment Terms | L/C, T/T |
| Supply Ability | 70000m per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Solar Panel Cable 6mm2 | Structure | 78/0.3mm |
|---|---|---|---|
| Insulation Material | XLPE | Temperature Range | -40℃～+90℃ |
| Conductor Material | Stranded Tinned Copper | Cable OD | 6mm |
| Resistance | ≤3.39（Ω/KM） | Rated Voltage | AC Uo/U0.6~1.0KV , DC1.5KV |
| Color | Black / Red | Packing | 200m Per Roll |
| High Light | single core electrical cable,tuv solar cable |
||
Product Description
TUV EN50618 XLPE double insulation solar panel Cable 6mm2 1000V AC 1.5KV DC
The advantage of solar cable
1. 99.9% high-purity oxygen-free copper: high quality tin-plated copper, high purity,
anti-aging, high electrical conductivity, low loss, strong current carrying capacity, high
corrosion resistance, and can adapt to outdoor harsh environment.
2, low eccentricity: thickness uniformity, effectively prevent the current breakdown fire,
to ensure safety.
3. Double protection: The solar photovoltaic cable adopts insulation and Jacket double
protection structure to extend the service life of the cable.
4, high-performance polymer materials: Insulating and jacket all use environmentally
friendly low-smoke halogen-free flame-retardant cross-linked polyolefin materials, with
wear-resistant, high temperature, oil, ozone, UV, high flame retardant properties.
5, strong flexibility: cable has a pressure, bending, strong toughness.
6, long service life: normal outdoor use, service life> 25 years
7, advanced equipment: The company has advanced foreign production, scientific research
equipment, passed the ISO9001-2000 quality management system certification, IATF16949:
2016 quality management system certification.
Specification :
1. Rating:Voltage: 600/1000V Temperature:-40°C-- 90°C
2. Description:
(1) Conductor: Tinned annealed copper
(2) Insulation:90°C XLPE , black
(3) Jacket:90°C XLPE , black or red
(4) Conductor:78/0.3mm
(5) Cable OD: 6.0mm
3. Marking:Marking:
TÜV SÜD EN 50618:2014 H1Z2Z2-K 1x6,0mm2 DC 1.5 KV NINGBO PNTECH NEW ENERGY CO.,LTD
Application :
Specifically designed for connecting photovoltaic system components inside and
outside of building and equipment with high mechanical requirements and extreme weather
conditions .For permanent installations.
General characteristics:
Cable made of electron-beam cross-linked insulation and coating; high resistance against heat , cold, oil, abrasion, ozone,UV and weather; with improved reaction in case of fire . low smoke, halogen free , flame free ,
flame retardant; flexible, easy to strip, very low space requirement, extremely, extremely
mechanically robust, very long lifetime.
| Product Name | TUV Standard Solar Cable |
| Model NO. | H1Z2Z2-K 1x 6mm2 |
| Voltage | High Voltage Cable |
| Insulation Material | XLPE |
| Material Shape | Round Wire |
| Certification | ROSH, CE, TUV |
| Standards | TUV EN50618 |
| Cores | 1 Core |
| Transport Package | Iron-Wooden Drum, Iron Drum |
| Application | Construction, Underground, Industrial, Power Station |
| Sheath Material | XLPE |
| Wire Core Material | Tinned Copper |
| Cross Section | 6mm2 |
| Name | PV Cable |
| The product description | Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries. |
| Product features | Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant. |
| Flame retardant, cutting resistance and penetration resistance. | |
| Cable protection level Ⅱ level. | |
| With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus. | |
| It conforms to ROHS, and the insulation resistance is small after immersion. | |
| Electrical | 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km |
| 2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm | |
| 3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω. | |
| Cable structure | Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F |
| 25, 16 and 10, 6, 4, 2 mm ^ 2 PV wire | |
| Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer. | |
| Sheath: low smoke and halogen free material thickness > 0.5mm. | |
| Detailed parameters | Ambient temperature: - 40 ℃ ~ + 90 ℃ |
| The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃) | |
| Limited voltage: AC0.6/1kv dc1.8kv. |
(We also produce single core of 2.5mm2,4mm2 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

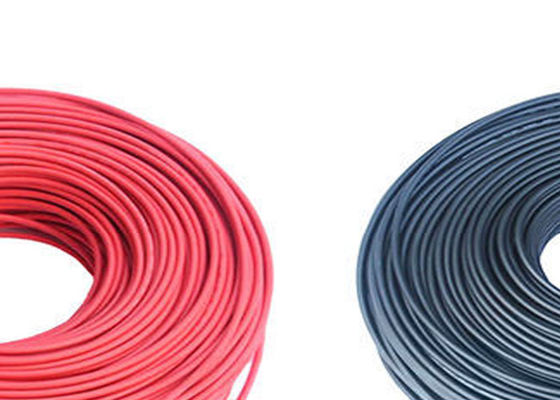

Pictures of 6mm DC PV solar panel Cable
