Halogen Free Single Core Solar Cable , Non Toxic 6mm2 Solar Photovoltaic Cable

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: TUV/CE/CQC/ISO9001

Model Number: PV1-F 1x6mm2

Payment & Shipping Terms

Minimum Order Quantity: 200m

Price: Negotiation

Packaging Details: 200m/roll, two rolls per carton, Carton size: 42*42*22cm Also pack according to customer's requirements

Delivery Time: 3-15days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 70000 Meters per Day

Get Best Price
Contact Now
Specifications
Highlight:

double insulated single core cable

,

single core electrical cable

Product Name:
6mm² PV Photovoltaic DC Solar Power Cable
Temperature Range:
-40℃~+90℃
Conductor:
Tinned Copper
Construction:
84/0.3mm
Thickness:
0.8mm
Resistance::
3.39 Ω/km (MAX. At 20℃)
Cable OD:
7.0mm
Color:
Black Or Red
Product Name:
6mm² PV Photovoltaic DC Solar Power Cable
Temperature Range:
-40℃~+90℃
Conductor:
Tinned Copper
Construction:
84/0.3mm
Thickness:
0.8mm
Resistance::
3.39 Ω/km (MAX. At 20℃)
Cable OD:
7.0mm
Color:
Black Or Red
Description
Halogen Free Single Core Solar Cable , Non Toxic 6mm2 Solar Photovoltaic Cable



TUV 6mm2 PV Photovoltaic DC Solar Power Cable Tinned copper XLPE insulation



PV Photovoltaic Cable DC Solar Power CableTechnical Character:


Working voltage:AC: 600/1000V DC: 1800V
Maxium Voltage:1.8KV
Test Voltage: 6.5kV AC
Working Temperature:-40-90 º C
Bending Radiu:
Fixed: 4 x overall diameter
Flexed: 5 x overall diameter
Max. Conductor temperature: 120º C
Short-circuit max. Conductor temperature:250°C
Insulation resistance: 10 MΩ x km



No. of Cores×Nominal Cross Section No. of Stranding Nominal Conductor Diameter Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diamater Nominal Weight
No.×mm2 - mm mm mm mm kg/km
1×1.5 30/0.25 1.58 0.7 0.8 4.8 40
1×2.5 50/0.25 2.04 0.7 0.8 5.5 50
1×4.0 56/0.30 2.59 0.7 0.8 6.1 70
1×6.0 84/0.30 3.17 0.7 0.8 7.0 80
1×10 80/0.40 4.07 0.7 0.8 8.5 130
1×16 120/0.40 5.22 0.7 0.9 10.2 200
1×25 199/0.40 6.51 0.9 1 12.5 290
1×35 279/0.40 7.71 0.9 1.1 14 400
1×50 396/0.40 9 1 1.2 16.3 550
1×70 360/0.50 10.8 1.1 1.2 18.7 750
1×95 475/0.50 12.6 1.1 1.3 20.8 970
1×120 608/0.50 14.2 1.2 1.3 22.8 1220
1×150 756/0.50 15.8 1.4 1.4 25.5 1510
1×185 925/0.50 17.4 1.6 1.6 28.5 1850
1×240 1221/0.50 20.4 1.7 1.7 32.1 2400



Features:


1) Electron beam cross-linked materials do not melt or flow, even at high temperature, high resistance against heat, cold,abrasion, UV resistant, ozone and hydrolyses.
2) These cables provide the means to interconnect between photovoltaic(PV) panels and from panels to the inverter.
3) They operate at DC voltage and provide long life in exposed conditions.



Name PV Cable
The product description Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
Product features Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F
18, 16 and 14, 12, 10, 8, 6, 4, 2 mm ^ 2 PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
Detailed parameters Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.



FAQ:



1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please

call us to give complete specifications about the cable. price will be calculated soon.

2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?
We accept T/T (bank transfer), L/C

4. Do you accept the customized order?
Yes, we do.

5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

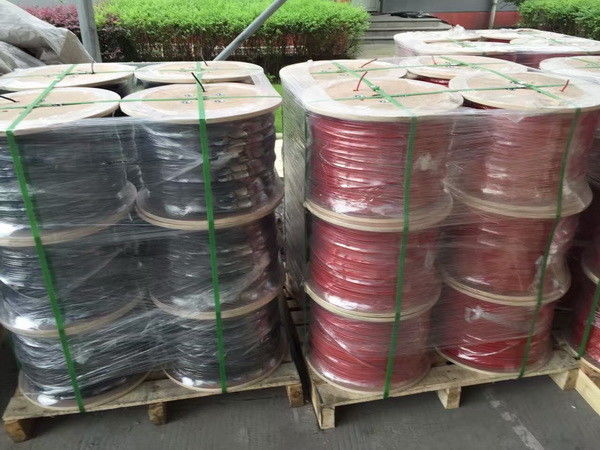

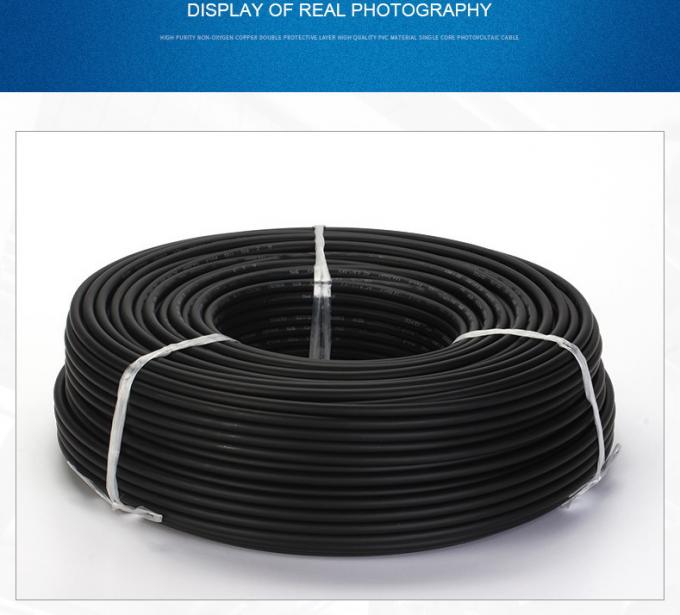

Picture of 6mm² PV Photovoltaic Cable DC Solar Power Cable



Halogen Free Single Core Solar Cable , Non Toxic 6mm2 Solar Photovoltaic Cable 0Halogen Free Single Core Solar Cable , Non Toxic 6mm2 Solar Photovoltaic Cable 1
