Ozone Resistant 4mm Solar PV Cable Excellent Resistance To Abrasion
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Solar Pv Cable 4mm | Structure | 56/0.3mm |
|---|---|---|---|
| Insulation Material | XLPE | Jacket Material | XLPE |
| Conductor Material | Stranded Tinned Copper | Cable OD | 6.1mm |
| Resistance | ≤5.09（Ω/KM） | Rated Voltage | AC Uo/U0.6~1.0KV , DC1.8KV |
| Color | Black / Red | Packing | 250m Per Roll |
| High Light | double insulated single core cable,single core electrical cable |
||
Product Description
TUV 2 PfG 1169 PV1-F solar pv cable 4mm Copper Conductor XLPE Insulated Material
Advantages of PV1-F 2PFG 1169 4mm2 solar pv cable TUV black and red
1) Electron-beam cross-linked compounds.
2) UV, ozone and hydrolysis resistant.
3) High temperature resistant, the materials do not metl or flow.
4) Good cold flexibility.
5) Very long service life > 25years at 90C.
6) Compatible to all popular connectors.
Application :
Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .
Outstanding Advantages :
1. Dual wall insulation.Electron beam cross-linked
2. Excellent resistance to U.V,oil,greases,oxygen and ozone
3. Excellent resistance to abrasion
4. Halogen free, flame retardant,low toxicity
5. Excellent flexibility and stripping performance
6. High current carring capacity
7. TUV approved
| Type | Cross Section | Strand Design | Conductor Diameter | Conductor Resistance | Outer Diameter | Rated Voltage | Rated Current |
| PV-1x4mm2 | 4.0mm2 | 56x φ0.3mm | 2.6mm | 5.09 Ω/km | 6.1mm | 1800VDC | 70A |
| Name | PV Cable |
| The product description | Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries. |
| Product features | Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant. |
| Flame retardant, cutting resistance and penetration resistance. | |
| Cable protection level Ⅱ level. | |
| With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus. | |
| It conforms to ROHS, and the insulation resistance is small after immersion. | |
| Electrical | 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km |
| 2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm | |
| 3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω. | |
| Cable structure | Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F |
| 25, 16 and 10, 6, 4, 2 mm ^ 2 PV wire | |
| Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer. | |
| Sheath: low smoke and halogen free material thickness > 0.5mm. | |
| Detailed parameters | Ambient temperature: - 40 ℃ ~ + 90 ℃ |
| The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃) | |
| Limited voltage: AC0.6/1kv dc1.8kv. |
(We also produce single core of 2.5mm2, 6mm2 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

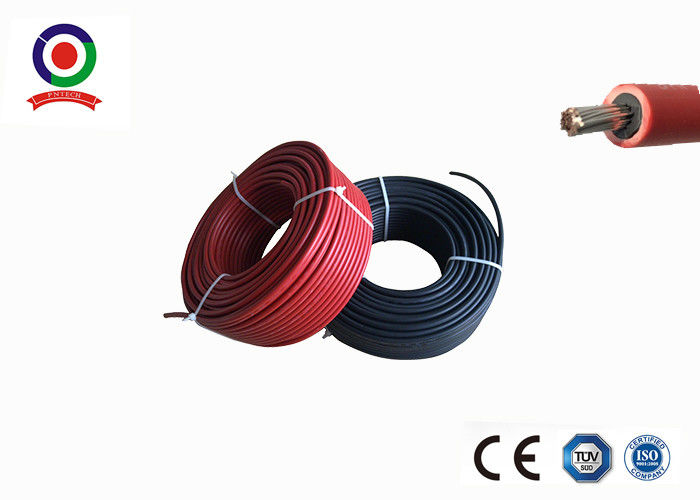

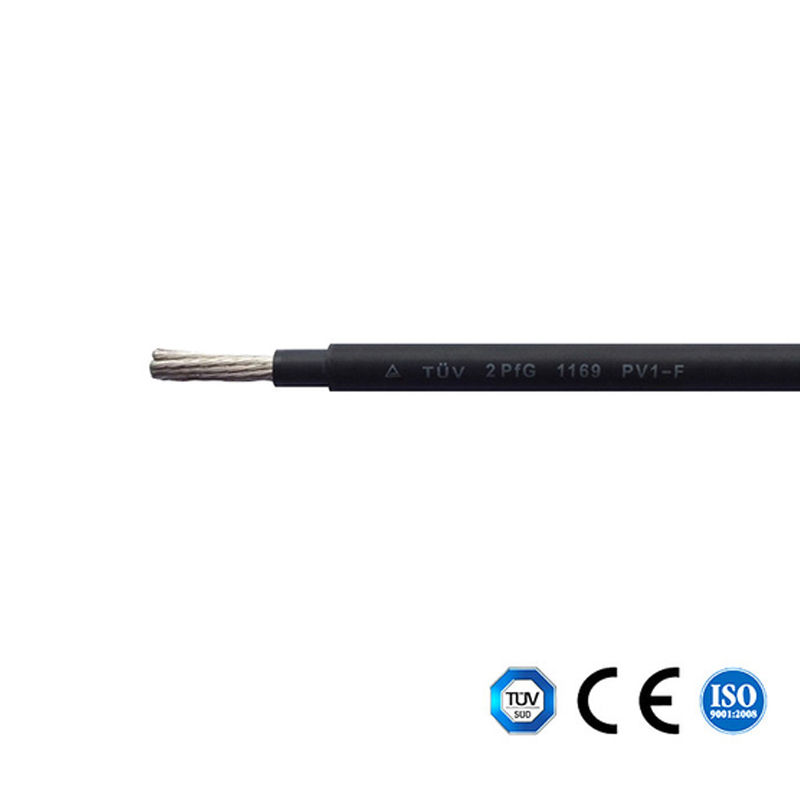

Pictures of 4mm DC Solar Cable
