Product Details
Place of Origin: China
Brand Name: Pntech
Certification: TUV/CE/ISO9001
Model Number: PV1-F 1x4mm2
Payment & Shipping Terms
Minimum Order Quantity: 250m / roll
Price: Negotiation
Packaging Details: 100m per roll , 250m per roll , 500m per drum
Delivery Time: 3-7days
Payment Terms: L/C, T/T
Supply Ability: 40000m per day
Conductor Material: |
Tinned Copper |
Structure: |
56/0.3mm |
Insulation Material: |
XLPE |
Jacket Material: |
XLPE |
Jacket Thickness: |
0.8mm |
Cable OD: |
6.1mm |
Resistance: |
≤5.09（Ω/KM） |
Rated Voltage: |
AC Uo/U0.6~1.0KV , DC1.8KV |
Color: |
Black / Red |
Packing: |
250m Per Roll |
Conductor Material: |
Tinned Copper |
Structure: |
56/0.3mm |
Insulation Material: |
XLPE |
Jacket Material: |
XLPE |
Jacket Thickness: |
0.8mm |
Cable OD: |
6.1mm |
Resistance: |
≤5.09（Ω/KM） |
Rated Voltage: |
AC Uo/U0.6~1.0KV , DC1.8KV |
Color: |
Black / Red |
Packing: |
250m Per Roll |
Black red color DC Solar cable 4mm2 XLPE dual insulation CE TUV certification
Application
Used for interconnection wiring of grounded and ungrounded photovoltaic power systems
Techinical data
Voltage rating :600/1000V AC,1000/1800V DC
Test voltage :AC 6.5 KV
Temperature rating :-40℃~90℃
Sunlight resistant
Flame rated : Vertical flame per IEC 60332-1
Conductor structure: 56/0.3mm
Cable OD: 6.1mm
Products description
Conductor : Stranded ,tinned copper
Refer to IEC 60228 class 5
Inner insulation :XLPE
Outer jackter :XLPE
Colour :Black and red
Industry Standards
TUV 2Pfg 1169/08.2007
(We also produce single core of 2.5mm2, 6mm2 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)
| Wire: Copper (Class 5, tinned) | UV resistance |
| Insulation material: XLPE | High wear and abrasion resistance |
| Double insulation | Flame test according to: DIN EN 50265-2-1 UL1571(VW-1) |
| Halogen-free | Smallest permissible Bending Radius : 5 x D |
| High resistance against oil, greases, oxygen and ozone | Temperature range: -40℃ ~ +90℃ |
| Microde-resistant | Colours: Black & Red |

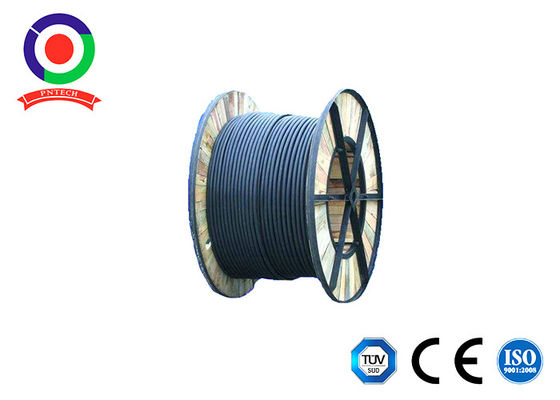

Pictures of 4mm DC Solar Cable
