PPO Solar Fuse Connector 1000V DC 20A IP67 Black

Name: PPO Solar Fuse Connector 1000V DC 20A IP67 Black
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV004-F
Availability: InStock

Product Details

Place of Origin: China

Certification: CE/ISO9001

Model Number: PV004-F

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Negotiation

Packaging Details: PP bag

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 5000pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    DC 1000V Inline Fuse Connector, PPO Solar Fuse Connector


Product Name:	Connector With Fuse	Material:	PPO
Connector:	Female And Male	Rated Voltage:	DC 1000V
Protection Degree:	IP67	Flame Class::	UL94-V0
Rated Current:	10-20A	Color:	Black

Product Name:	Connector With Fuse
Material:	PPO
Connector:	Female And Male
Rated Voltage:	DC 1000V
Protection Degree:	IP67
Flame Class::	UL94-V0
Rated Current:	10-20A
Color:	Black

Description

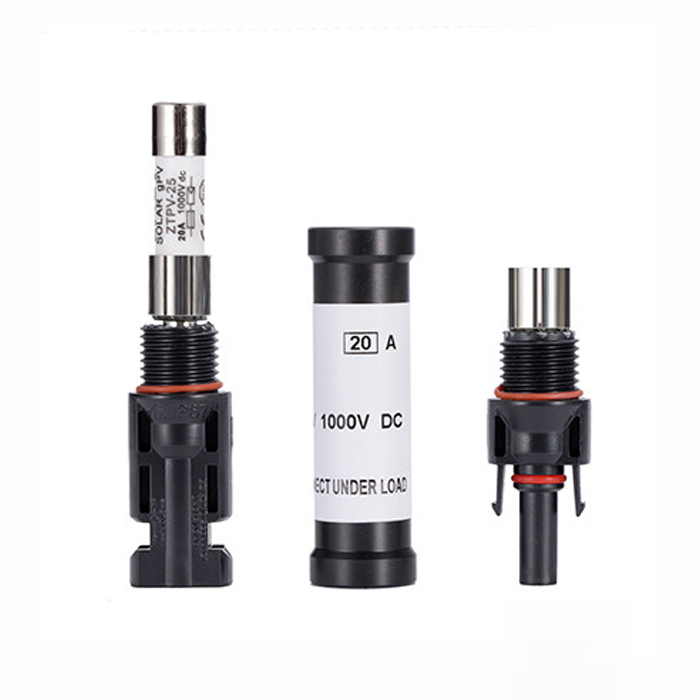

PPO Solar Fuse Connector 1000V DC 20A IP67 Black

Class II 4.0mm Pin DC 1000V PPO Inline Fuse Connector

CE PPO Black IP67 1000V 10A 20A connector with fuse for solar systems. This fuse series connector features auto-lock equipment for male and female points, enabling easier and more reliable connections.

Key Features

Anti-aging and UV-resistant outer cover
Popular design suitable for most field installations
Simple on-site processing
Convenient installation with strong commonality

Technical Specifications

Product Name	Connector With fuse
Housing Material	PPO
Contact Material	Copper, silver plated
Pin Dimension	4.0 mm
Contact Resistance	Less than 0.5 mΩ
Application Class	Class A
Rated Voltage	TUV1500V DC/UL 600V DC
Rated Current	10~20A
Test Voltage	6KV (5Hz, 1Min)
Flame Class	UL94-V0
Plug Force	Less than 50N
Withdrawal Force	More than 50N
Rated Temperature	-40°C~+85°C
Upper Limited Temperature	100°C
Waterproof	IP67/IP68
Pollution Degree	2
Protection Degree	Class II
Standard	TUV
Service Life	20 years
Suitable Cable Cross Sections	2.5mm/4mm/6mm (14AWG/12AWG/10AWG) PV Wire

Product Advantages

Designed for harsh environments
Double seal rings for superior waterproofing
Dust-proof sealed design
Quick, tool-free assembly and disassembly
Low contact resistance
Excellent aging resistance and UV endurance
High current and voltage load capability
Strong pulling force capability
Resistant to extreme temperatures and fireproof

Frequently Asked Questions

When can I get the quotation?

Within 24 hours of getting the inquiry. For urgent pricing, please call with complete specifications.

How long is the delivery time?

Typically 3-4 working days after payment, depending on quantity.

What are your payment terms?

We accept T/T (bank transfer) and L/C.

Do you accept customized orders?

Yes, we do.

Do you offer OEM & ODM services?

Yes, OEM & ODM are available.
