Excellent Flexibility 6mm Solar Panel Cable High Electrical Conductivity With Connector

Name: Excellent Flexibility 6mm Solar Panel Cable High Electrical Conductivity With Connector
Brand: Pntech
SKU: DC-DC
Rating: 4.8 (112 reviews)

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: TUV/CE/ISO9001

Model Number: DC-DC

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: Bulk

Delivery Time: 3-10days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 5000sets per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    solar system cable, solar extension cable


Product Name:	Extension Cable With Connector	Cable Material:	XLPE
Connector:	Female And Male	Cable Rated Voltage:	AC 0.6/1.0KV DC 1.8KV
Protection Degree:	IP67	Cable Type:	2.5 4 6mm2
Connector Ambient Temperature:	-40～+85℃	Cable Color:	Black Or Red

Product Name:	Extension Cable With Connector
Cable Material:	XLPE
Connector:	Female And Male
Cable Rated Voltage:	AC 0.6/1.0KV DC 1.8KV
Protection Degree:	IP67
Cable Type:	2.5 4 6mm2
Connector Ambient Temperature:	-40～+85℃
Cable Color:	Black Or Red

Description

Excellent Flexibility 6mm Solar Panel Cable High Electrical Conductivity With Connector

TUV approved PV1-F 2.5 4 6mm2 solar extension cable with connector

Description:

One pair ( black or red ) 14AWG 12AWG 10AWG Solar Extension Cable.
Extends and locks built-in cables.

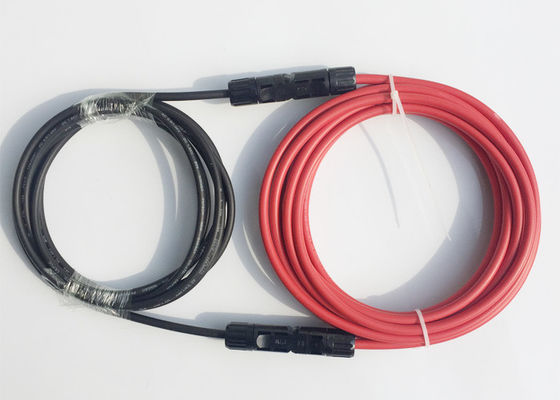

Two cables with connecters at one end connecting to solar panel and bare on the other end connecting to solar charge controller.
The wiring is weatherproof and designed to withstand extreme heat and cold.
Solar panel cable is typically sold in 14, 12 and 10 AWG sizes. The solar panel cable offered in this listing is 10 AWG which is the largest diameter of the three. Using large diameter cable minimizes power loss in your solar panel system.

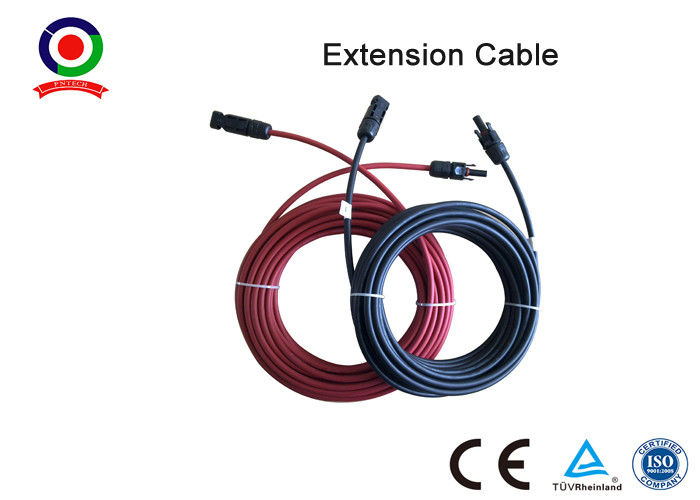

Extension cable with connector

Trademark	PNTECH
Type	PV004
Rated Voltage	1000VDC
Rated impulse voltage	8000V
Rated insulation voltage	6000V
Rated Current	30A
Standard	EN50521:11-2008
Protection Degree	IP67
Contact Resistance	≤5mΩ
Pollution Degree	2
Ambient Temperature	-40～+85℃
Cable cross section area	2,5mm2, 4,0mm², 6,0mm2
Insulation Material	PC EXL9330
Flame Class	UL94-V0

Type	PV1-F 1x2.5/4/6mm2
Rated Voltage	AC 0.6/1.0KV DC 1.8KV
Conductor Material	Tinned copper
Insulation Material	XLPE
Sheath Material	XLPE
Color	Black or Red

Advantage:

This solar connector has an auto-locking structure to connect reliably
We use only eligible PC material from resin supplier ,Material production included marvelous performance in the high low temperature,flame retarndant, antiultraviolet rays,taughted to harsh outdoor environment.
The proven assembly process is simple, fast, safe and easy.
Our connectors are in the lowest Contact resistance:0.4 mm

Excellent Flexibility 6mm Solar Panel Cable High Electrical Conductivity With Connector 0
