Electric TUV RoHS UV Resistant 6mm Photovoltaic Cable 10AWG

Name: Electric TUV RoHS UV Resistant 6mm Photovoltaic Cable 10AWG
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K 1x6mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x6mm2

Payment & Shipping Terms

Minimum Order Quantity: 200m

Price: Negotiation

Packaging Details: 200m/roll export carton

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 50000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            6mm Photovoltaic Cable, 10AWG Photovoltaic Cable, RoHS Photovoltaic Cable


Product Name:	Solar DC Cable 10AWG	Cross Section:	10AWG
Packing:	200m/roll	Conductor:	Tinned Copper
Struction:	84/0.285mm	Rate Voltage:	1KV AC 1500V DC
Color:	Black And Red

Product Name:	Solar DC Cable 10AWG
Cross Section:	10AWG
Packing:	200m/roll
Conductor:	Tinned Copper
Struction:	84/0.285mm
Rate Voltage:	1KV AC 1500V DC
Color:	Black And Red

Description

Electric TUV RoHS UV Resistant 6mm Photovoltaic Cable 10AWG

Product Specifications

Attribute	Value
Product name	Solar DC Cable 10AWG
Cross Section	10AWG
Packing	200m/roll
Conductor	Tinned copper
Structure	84/0.285mm
Rated Voltage	1KV AC 1500V DC
Color	Black and Red

Product Description

Photovoltaic Solar H1Z2Z2-K Cable, black, unshielded, single core. Designed for interconnection within photovoltaic systems such as solar panel arrays. Suitable for fixed installations (both internal and external), but not recommended for direct burial applications.

Key performance characteristics:

Minimum bending radius ≤ 4 times overall diameter
Safe pulling force: 50 N/mm²
Insulation withstands thermal and mechanical loads
Cross-linked plastics for severe weather resistance
Salt water resistant and suitable for outdoor use
Halogen-free flame resistant jacket for indoor dry conditions

Technical Parameters

Type	Cross section (mm²)	Wire structure	Conductor diameter (mm)	Outer diameter (mm)	Conductor resistance (Ω/Km)	Rated voltage (V AC/DC)	Rated current (A)
1X2.5mm²	2.5	48XΦ0.285	2	4.9	8.06	1000/1800	30
1X4.0mm²	4	56XΦ0.285	2.6	5.5	5.09	1000/1800	50
1X6.0mm²	6	84XΦ0.285	3.3	6.1	3.39	1000/1800	70
1X10mm²	10	80XΦ0.40	4.4	7.2	2.12	1000/1800	95

Key Advantages

Dual wall insulation with electron beam cross-linking
Excellent resistance to UV, oil, greases, oxygen, and ozone
Superior abrasion resistance for long-term durability
Halogen-free and flame retardant with low toxicity
Exceptional flexibility and easy stripping performance
High voltage/current carrying capacity
TUV approved for quality assurance

Solar cables offer exceptional environmental benefits with a service life of approximately 30 years, resistant to various weather conditions and temperatures. They feature UV protection, low smoke emission, minimal toxicity, and are fully recyclable to meet modern environmental regulations.

Packaging Information

Standard export packaging:

200m/roll or 1000m/roll on pallet
Wooden drum packaging available

Delivery Details

Delivery within 3-10 working days after order confirmation
Shipping ports: Ningbo or other specified ports
Shipping options: FOB, C&F, or CIF available

Note: For certain regions (Africa, Middle East), our sea freight rates may be more competitive than local shipping agencies.

Product Image

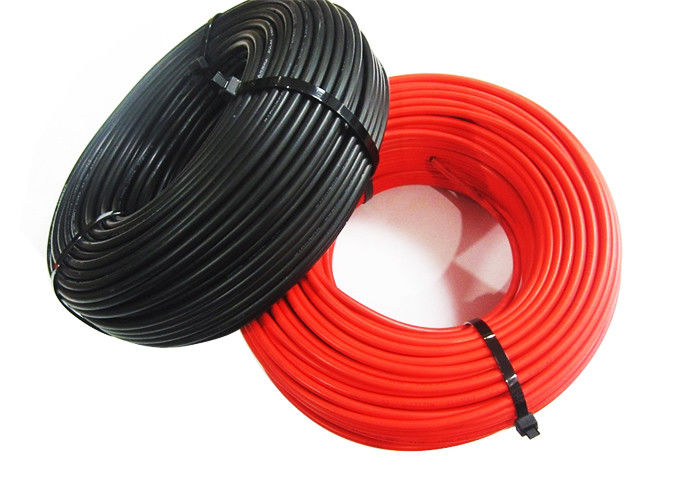

6mm² Solar DC Cable - Black and Red photovoltaic wire on spool
