XLPO Insulated 1x6mm2 Single Core Electrical Cable High Current 70A

Place of Origin China
Brand Name Pntech
Certification TUV/CE/ISO9001
Model Number H1Z2Z2-K 1x6mm2
Minimum Order Quantity 200m
Price Negotiation
Packaging Details 200m/roll export carton
Delivery Time 3-10days
Payment Terms L/C, T/T
Supply Ability 50000m per day
Product Details
Product Name XLPO Insulated PV Cable Insulation XLPO
Sheath XLPO Conductor Tinned Copper
Struction 84/0.285mm Rate Voltage 1KV AC 1800V DC
Core Single Core Color Black And Red
High Light

1x6mm2 single core electrical cable

,

70A single core electrical cable

,

XLPO single core electrical cable

Leave a Message
Product Description



XLPO Insulated Single Core Electrical Cable 1x6mm2 High Current 70A



Description:



Cross-linked Polyolefin, also referred to as XLPO, is a form of insulation that is created through both heat and high pressure. The most important attribute of XLPO is that it is halogen free. The importance of a halogen free cable is one that it will not emit toxic gases when exposed to fire.

The free encyclopedia. A DC connector (or DC plug, for one common type of connector) is an electrical connector for supplying direct current (DC) power. Compared to domestic AC power plugs and sockets, DC connectors have many more standard types that are not interchangeable.



Cross-Section: 1x6mm2

Rated temperature: -40~90C

Rated Rating:DC:1/1.8kv AC:0.6kv

Rated Current: 41~98A

Weathering Resistance: Sun Res



Specification:



TYPE Cross section Wire struct Conductor diameter Outer diameter Conductor resistance Rated voltage Rated current
mm2 No.OD (mm) mm mm Ω/Km V AC/DC A
1X2.5mm2 2.5 48XΦ0.285 2 5.2 8.06 1000/1800 30
1X4.0mm2 4 56XΦ0.285 2.6 5.9 5.09 1000/1800 50
1X6.0mm2 6 84XΦ0.285 3.3 6.6 3.39 1000/1800 70
1X10mm2 10 80XΦ0.40 4.4 8.3 2.12 1000/1800 95
2X2.5mm2 2.5 48XΦ0.25 2 6.2*9.90 8.06 1000/1800 30
2X4.0mm2 4 56XΦ0.30 2.6 6.9*11.30 4.97 1000/1800 50
2X6.0mm2 6 81XΦ0.30 3.3 7.1*14.50 3.52 1000/1800 70



Advantage:



· Dual wall insulation.Electron beam cross-linked

· Excellent resistance to U.V,oil,greases,oxygen and ozone

· Excellent resistance to abrasion

· Halogen free, flame retardant,low toxicity

· Excellent flexibility and stripping performance

· High Voltage and Current carring capacity

· TUV approved



Packing:



Standard Export package:

200m/roll,1000m/roll on the pallet or wooden drum



Delivery:



Within 3-10 working Days once Order Confirmed

Port: Ningbo, or other ports as per your requireents.
Sea freight:FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency

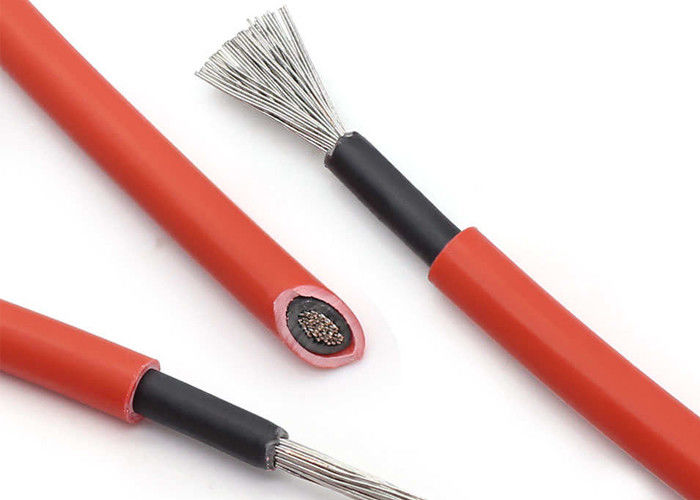

Photo of XLPO solar cable 6mm2



XLPO Insulated 1x6mm2 Single Core Electrical Cable High Current 70A 0
