IP67 Waterproof 15A Solar Panel Connector with Fuse DC1000V

Name: IP67 Waterproof 15A Solar Panel Connector with Fuse DC1000V
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV004-F
Availability: InStock

Product Details

Place of Origin: China

Certification: CE/ISO9001

Model Number: PV004-F

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Negotiation

Packaging Details: PP bag

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 5000pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    15A Solar Panel Cable Connectors, IP67 Solar Panel Cable Connectors


Product Name:	Connector With Fuse	Packing:	PP Bag
Connector:	Female And Male	Rated Voltage:	DC1000V
Protection Degree:	IP67	Flame Class::	UL94-V0

Product Name:	Connector With Fuse
Packing:	PP Bag
Connector:	Female And Male
Rated Voltage:	DC1000V
Protection Degree:	IP67
Flame Class::	UL94-V0

Description

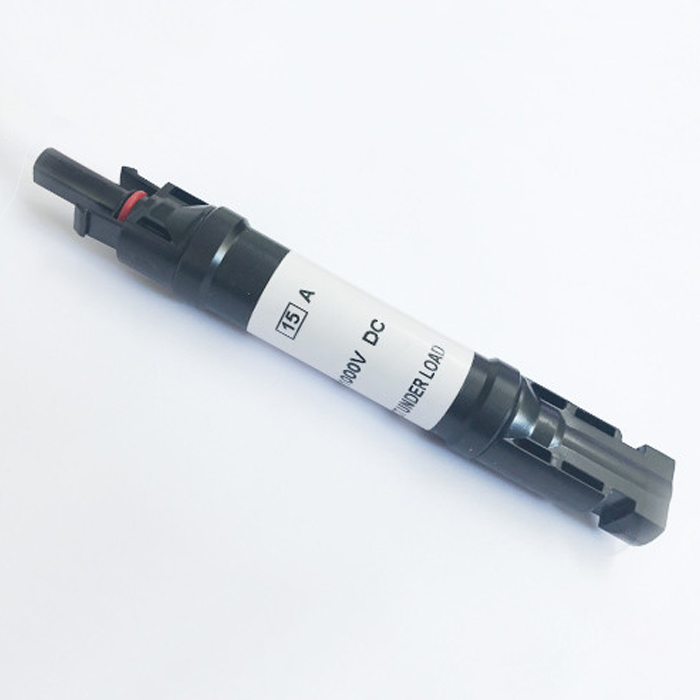

IP67 Waterproof 15A Solar Panel Connector with Fuse DC1000V

Waterproof IP67 15A Solar Panel Cable Connectors

Our IP67 waterproof PV cable connectors offer superior security and reliability for solar panel installations. With extensive experience in auto parts development and manufacturing, we provide customized ODM solutions tailored to your specific requirements.

Product Specifications

Product Name:	Connector With fuse
Housing Material:	PPO
Contact Material:	Copper, silver plated
Pin Dimension:	4.0 mm
Contact Resistance:	Less than 0.5 mΩ
Application Class:	Class A
Rated Voltage:	TUV 1500V DC/UL 600V DC
Rated Current:	1~30A
Test Voltage:	6KV (5Hz, 1Min)
Flame Class:	UL94-V0
Plug Force:	Less than 50N
Withdrawal Force:	More than 50N
Rated Temperature:	-40°C to +85°C
Upper Limited Temperature:	100°C
Waterproof:	IP67/IP68
Pollution Degree:	2
Protection Degree:	Class II
Standard:	TUV
Service Life:	20 years
Suitable Cable Cross Sections:	2.5mm/4mm/6mm (14AWG/12AWG/10AWG) PV Wire

Key Advantages

Designed for harsh environmental conditions
Double seal rings for enhanced waterproofing
Dust-proof sealed design
Quick and simple assembly without special tools
Low contact resistance for efficient performance
Excellent aging resistance and UV endurance
High current and voltage load capability
Strong pulling force resistance
Extreme temperature resistance and fireproof

Frequently Asked Questions

When can I get the quotation?

Within 24 hours of inquiry. For urgent pricing, please call with complete cable specifications.
How long is the delivery time?

Typically 3-4 working days after payment, depending on order quantity.
What payment methods do you accept?

We accept T/T (bank transfer) and L/C.
Do you accept customized orders?

Yes, we accommodate custom requirements.
Do you offer OEM & ODM services?

Yes, both OEM and ODM services are available.
