TUV Certified 1 Core Solar Photovoltaic Cable 10mm2 Penetration Resistant

Place of Origin China
Brand Name Pntech
Certification TUV/CE/ISO9001
Model Number PV1-F 1x10mm2
Minimum Order Quantity 100m / roll
Price Negotiation
Packaging Details 100m per roll 200m per carton size 42x42x22cm
Delivery Time 3-7days
Payment Terms L/C, T/T
Supply Ability 70000m per day
Product Details
Product Name Solar Photovoltaic Cable 10mm2 Core 1 Core
Conductor Material Stranded Tinned Copper Cable OD 8.5mm
Structure 80/0.4mm Rated Voltage AC Uo/U0.6~1.0KV , DC1.8KV
High Light

solar dc cable

,

solar photovoltaic cable

Leave a Message
Product Description



TUV Solar Cable 10mm2 Copper Conductor Material and XLPE Insulation Material



PV1-F tinned copper solar cable 10mm2



(1) Conductor: Tinned annealed copper

(2) Insulation:120°C XLPE , black

(3) Jacket:120°C XLPE , black or red



Marking:

TüV 2 PfG 1169 PV1-F 1×10mm2 AC 0.6/1.0KV DC 1.8KV NINGBO PNTECH NEW ENERGY CO.,LTD.



Type Cross Section Strand Design Conductor Diameter Conductor Resistance Outer Diameter Rated Voltage Rated Current
PV-1x10mm2 10mm2 80x φ0.4mm 4.4mm 1.95 Ω/km 8.5mm 1800VDC 98A



Fire Resistant Cables Description:



A. Application:Double insulation,electron-beam cross linked cables for photovotaic power station.

Construction:Tinned copper,according toVDE0295/IEC60228,Class5

B. Material Properties/Standards:

1. Fire-resistant performance:IEC60332-1.

2. Smoke emission:IEC61034;EN50268-2

3. Low fire load:DIN51900

4. Approvals:TUV2PfG 1169/08.2007 PV1-F.

5. Application Standards:UNE211 23;UNE20.460-5-52, UTE C 32-502


Application :

Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .



Name PV Cable
The product description Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
Product features Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F
25, 16 and 10, 6, 4, 2 mm ^ 2 PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
Detailed parameters Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.


(We also produce single core of 2.5mm2, 4mm2, 6mm2 and 16mm2, as well as dual cores,

please consult me directly if necessary)

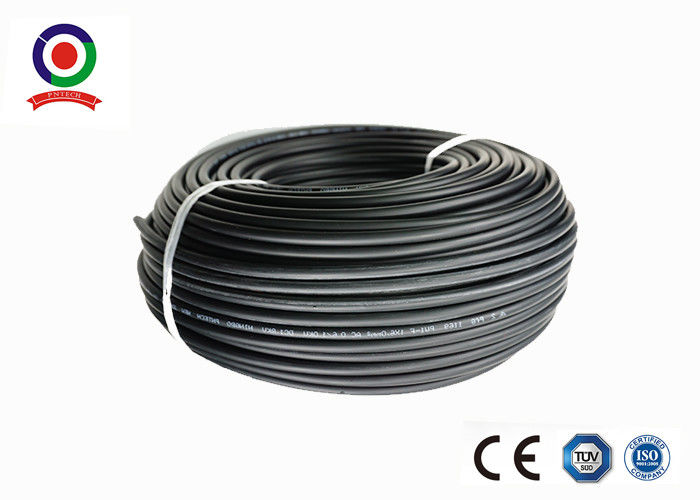

Pictures of 10mm2 Solar Cable
