Excellent Flexibility 6mm Solar Panel Cable High Electrical Conductivity With Connector

Place of Origin China
Brand Name Pntech
Certification TUV/CE/ISO9001
Model Number DC-DC
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Bulk
Delivery Time 3-10days
Payment Terms L/C, T/T, Western Union
Supply Ability 5000sets per day
Product Details
Product Name Extension Cable With Connector Cable Material XLPE
Connector Female And Male Cable Rated Voltage AC 0.6/1.0KV DC 1.8KV
Protection Degree IP67 Cable Type 2.5 4 6mm2
Connector Ambient Temperature -40~+85℃ Cable Color Black Or Red
High Light

solar system cable

,

solar extension cable

Leave a Message
Product Description

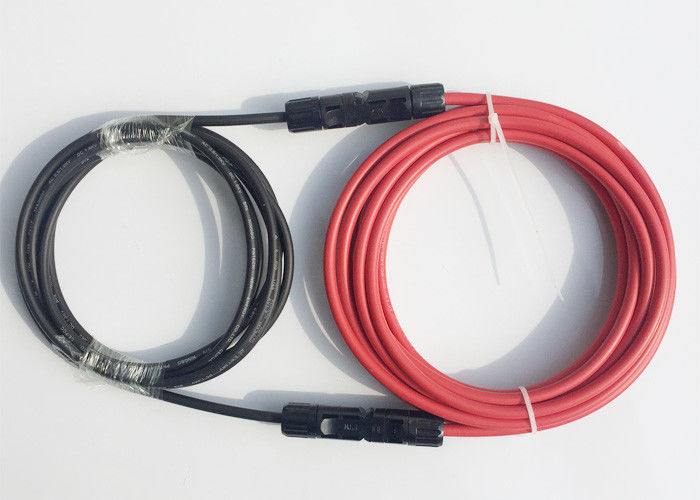

TUV approved PV1-F 2.5 4 6mm2 solar extension cable with connector



Description:



  • One pair ( black or red ) 14AWG 12AWG 10AWG Solar Extension Cable.
  • Extends and locks built-in cables.
  • Two cables with connecters at one end connecting to solar panel and bare on the other end connecting to solar charge controller.
  • The wiring is weatherproof and designed to withstand extreme heat and cold.
  • Solar panel cable is typically sold in 14, 12 and 10 AWG sizes. The solar panel cable offered in this listing is 10 AWG which is the largest diameter of the three. Using large diameter cable minimizes power loss in your solar panel system.



Extension cable with connector



Trademark PNTECH
Type PV004
Rated Voltage 1000VDC
Rated impulse voltage 8000V
Rated insulation voltage 6000V
Rated Current 30A
Standard EN50521:11-2008
Protection Degree IP67
Contact Resistance ≤5mΩ
Pollution Degree 2
Ambient Temperature -40~+85℃
Cable cross section area 2,5mm2, 4,0mm², 6,0mm2
Insulation Material PC EXL9330
Flame Class UL94-V0





Type  PV1-F 1x2.5/4/6mm2
Rated Voltage AC 0.6/1.0KV  DC 1.8KV
Conductor Material Tinned copper
Insulation Material XLPE
Sheath Material XLPE
Color  Black or Red



Advantage:



  • This solar connector has an auto-locking structure to connect reliably
  • We use only eligible PC material from resin supplier ,Material production included marvelous performance in the high low temperature,flame retarndant, antiultraviolet rays,taughted to harsh outdoor environment.
  • The proven assembly process is simple, fast, safe and easy.
  • Our connectors are in the lowest Contact resistance:0.4 mm



Excellent Flexibility 6mm Solar Panel Cable High Electrical Conductivity With  Connector 0Excellent Flexibility 6mm Solar Panel Cable High Electrical Conductivity With  Connector 1
