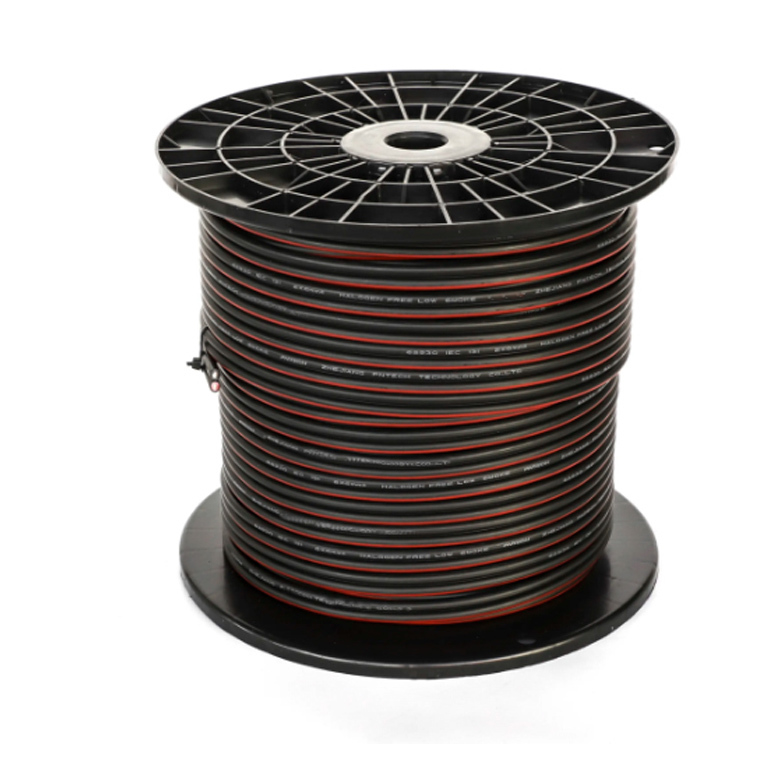

2x4mm2 Twin Core Solar Cable 1500V XLPE Sheath

Name: 2x4mm2 Twin Core Solar Cable 1500V XLPE Sheath
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: IEC 2x4mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE

Model Number: IEC 2x4mm2

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Negotiation

Packaging Details: 100m/roll

Delivery Time: 10days

Payment Terms: T/T

Supply Ability: 30k per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Industrial Applications Flat Wire Electrical Cable, 2x4mm2 Flat Wire Electrical Cable, XLPE Sheath Flat Wire Electrical Cable


Voltage Rating:	1500V	Color:	Black&Red
Conductor:	Tinned Copper	Sheath Material:	XLPE
Resistance:	5.09 Ω/km (MAX. At 20℃)	Conductor Dc Resistance:	≤1.95（Ω/KM）
Cable Od:	11.5mm	Ambient Temperature:	-40~90 Degree

Voltage Rating:	1500V
Color:	Black&Red
Conductor:	Tinned Copper
Sheath Material:	XLPE
Resistance:	5.09 Ω/km (MAX. At 20℃)
Conductor Dc Resistance:	≤1.95（Ω/KM）
Cable Od:	11.5mm
Ambient Temperature:	-40~90 Degree

Description

2x4mm2 Twin Core Solar Cable 1500V XLPE Sheath

Industrial Applications Flat Wire Electrical Cable 2x4mm² with XLPE Sheath

Product Description

The Twin Core Solar Cable 4mm is a high-quality energy cable designed for solar power systems. With a rated voltage of 1KV AC and 1500V DC, this electrical flat cable is suitable for both AC and DC solar applications. The cable features a construction of 2*56/0.285mm, providing reliable connectivity for your solar panels.

One of the key attributes is its insulation mean thickness of 0.85mm, ensuring protection against environmental factors and electrical interference. With a conductor DC resistance of ≤1.95(Ω/KM), it enables efficient energy transfer with minimal power loss.

Key Features

Product Name: Twin Core Solar Cable
Insulation Mean Thickness: 0.85mm
Ambient Temperature Range: -40°C to 90°C
Construction: 2*56/0.285mm
Voltage Rating: 1500V
Core: 2 Core

Technical Specifications

Parameter	Value
Rated Voltage	1KV AC / 1500V DC
Resistance	5.09 Ω/km (MAX. At 20℃)
Construction	2*56/0.285mm
Sheath Material	XLPE
Color	Black & Red
Conductor DC Resistance	≤1.95(Ω/KM)

Applications

This IEC 2x4mm² Twin Core Solar Cable is ideal for solar panel installations, inverters, and other solar power system components. Its flat design and twin-core configuration simplify installation while maintaining efficient power transmission over long distances.

Customization Options

Model Number: IEC 2x4mm²
Certification: TUV/CE
Minimum Order: 1000 units
Packaging: 100m/roll
Delivery Time: 10 days
Supply Capacity: 30,000 units/day

Support & Services

Our technical support team provides comprehensive assistance for installation and troubleshooting to ensure optimal performance of your solar cable system.

Packaging & Shipping

Each cable is securely coiled in sturdy packaging for safe transit. Orders ship within 1-2 business days with tracking information provided.

Frequently Asked Questions

Q: What is the Model Number of the solar cable?

A: The Model Number is IEC 2x4mm².

Q: What certifications does the solar cable have?

A: The cable is certified by TUV/CE.

Q: What is the packaging configuration?

A: The cable is packaged in 100m rolls.
