IP67 Protection Degree Solar Panel Connectors with -40°C To +105°C Operating Temperature and DC 600V Voltage Rating

Name: IP67 Protection Degree Solar Panel Connectors with -40°C To +105°C Operating Temperature and DC 600V Voltage Rating
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV005
Availability: InStock

Product Details

Place of Origin: CHINA

Certification: TUV & CE & ISO9001 & CQC & CPR & BCA

Model Number: PV005

Payment & Shipping Terms

Minimum Order Quantity: 500

Price: Negotiation

Packaging Details: 500pairs/carton

Delivery Time: 7-25days

Payment Terms: T/T,L/C at sight

Supply Ability: 10000000

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Superior Connections Solar Panel Connectors, IP67 Solar Panel Connectors, IP67 solar connectors


Protection Degree:	IP67	Connector Color:	Black
Operating Temperature:	-40°C To +105°C	Connector Gender:	Male/Female
Used For:	Solar Panel/inveter	Voltage Rating:	DC 600V
Number Of Contacts:	2	Connector Material:	PPO

Protection Degree:	IP67
Connector Color:	Black
Operating Temperature:	-40°C To +105°C
Connector Gender:	Male/Female
Used For:	Solar Panel/inveter
Voltage Rating:	DC 600V
Number Of Contacts:	2
Connector Material:	PPO

Description

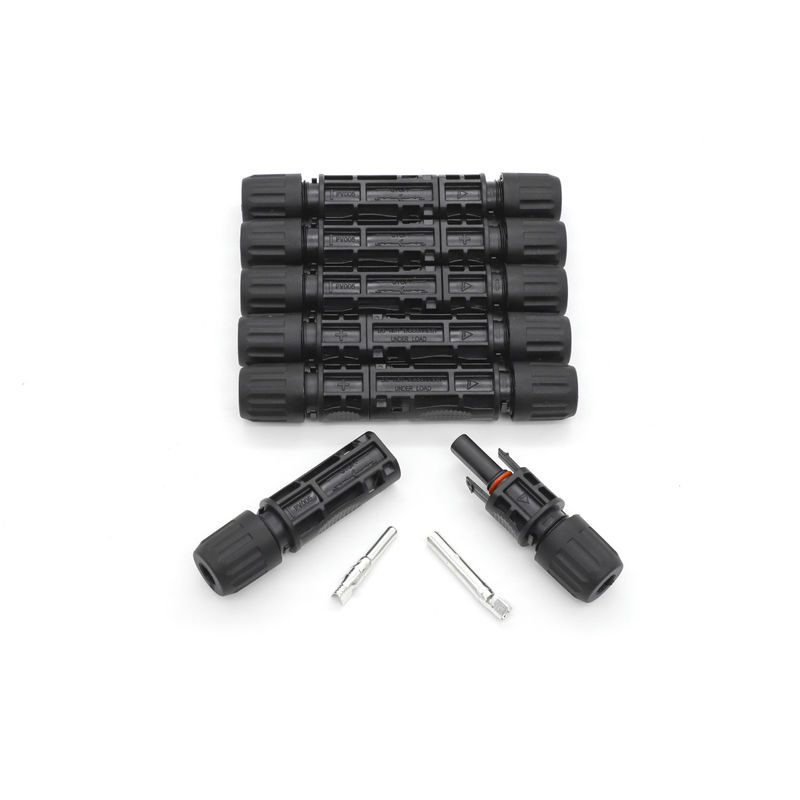

IP67 Protection Degree Solar Panel Connectors with -40°C To +105°C Operating Temperature and DC 600V Voltage Rating

IP67 Protection Degree Solar Panel Connectors For Superior Connections

These solar panel connectors are essential components for photovoltaic systems, designed to ensure stable and secure connections between PV panels. Engineered to withstand harsh outdoor conditions, they offer reliable performance for both residential and commercial solar installations.

Key Features

IP67 protection degree for superior weather resistance
Tinned plated finish for corrosion resistance
Operating temperature range: -40°C to +105°C
Panel mount design for secure installation
Screw-on connector style for reliable connections
Male/female pair configuration for proper mating
Compatible with 14-10 AWG wire gauge
30A current rating for robust performance

Technical Specifications

Attribute	Details
Number of Contacts	2
Operating Temperature	-40°C to +105°C
Wire Gauge	14-10 AWG
Connector Material	PPO
Mounting Type	Panel Mount
Current Rating	30A
Connector Gender	Male/Female
Connector Finish	Tinned Plated
Protection Degree	IP67

Applications

These connectors are ideal for various solar energy applications, including residential solar systems, commercial solar farms, and utility-scale photovoltaic installations. Their robust design ensures reliable performance in connecting solar panels to inverters under diverse environmental conditions.

Certifications & Ordering Information

Certifications

TUV, CE, ISO9001, CQC, CPR, BCA

Minimum Order

500 pairs

Packaging

500 pairs/carton

Delivery Time

7-25 days

Payment Terms

T/T, L/C at sight

Supply Ability

10,000,000 units

Support & Services

Our comprehensive support includes detailed product documentation, installation guides, and technical assistance. We offer warranty coverage for manufacturing defects and provide guidance for proper maintenance and end-of-life recycling.

Packaging & Shipping

Each connector set is individually packaged in protective, eco-friendly materials with custom foam inserts to prevent damage during transit. Orders are processed within 1-2 business days with multiple shipping options available.

Frequently Asked Questions

What are the payment terms and supply ability?

Payment terms are T/T, L/C at sight with a supply ability of 10,000,000 units.

What certifications do the connectors hold?

Certifications include TUV, CE, ISO9001, CQC, CPR, and BCA.

What is the minimum order quantity?

The minimum order quantity is 500 pairs.

How are the connectors packaged and delivered?

Packaged 500 pairs per carton with delivery in 7-25 days.
