600W IP68 Waterproof 25A Rated Current DC Connector Power Plug for Solar Panel Extension Cable

Name: 600W IP68 Waterproof 25A Rated Current DC Connector Power Plug for Solar Panel Extension Cable
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: JY03-F
Availability: InStock

Product Details

Place of Origin: China

Certification: VDE

Model Number: JY03-F

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Negotiation

Packaging Details: 100sets/polybag 500sets/carton 39x39x22cm

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 5000pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    BC01 DC Connector Power Plug, 600W DC Connector Power Plug, DC Connector Solar Panel Extension Cable


Product Name:	DC Connector Power Plug	Voltage:	AC230V
Degree Of Protection:	IP68	Rated Current::	25A
Contact Resistance:	≤1mΩ	Color:	Black

Product Name:	DC Connector Power Plug
Voltage:	AC230V
Degree Of Protection:	IP68
Rated Current::	25A
Contact Resistance:	≤1mΩ
Color:	Black

Description

600W IP68 Waterproof 25A Rated Current DC Connector Power Plug for Solar Panel Extension Cable

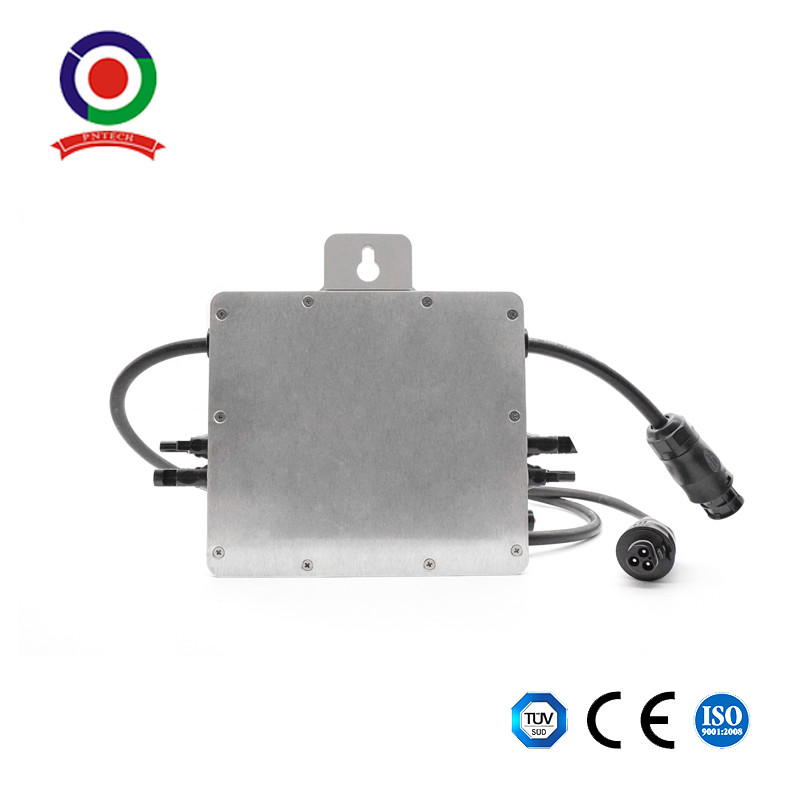

600W VDE Micro Inverter Solar Panels DC Connector Power Plug Betteri BC01

The Betteri BC01 Micro Inverter is a 600W VDE-certified solution for solar panel systems, featuring Schuko (CEE 7/7) compatibility. Designed for residential and small commercial environments, it offers efficient power conversion with a 99% electricity transmission rate.

Key Features

Cable length options: 3/5/10 meters
Oil, UV, and ozone resistant construction
Operating temperature range: -30°C to +60°C
Maximum Power Point Tracking (MPPT) technology
110V Pure Sine Wave AC output
Automatic 50Hz/60Hz frequency recognition
Supports single-phase or three-phase connections
Improved AC wiring solution for safer installation
MC4 connector design prevents polarity reversal

Technical Specifications

Conductor	Copper
Cable	3G 1.5mmH07RN-F
Insulation	Rubber
Connector A	Better iBC 01 Female
Connector B	Schuko Plug
Waterproof Level	IP68 (1.5m, 24h)
Wiring Connection	Screw Type
Rated Voltage	AC230V
Rated Current	25A
Temperature Range	-30℃~+60℃
Contact Resistance	≤1mΩ
Outer Cable Diameter	10~13mm
Certificate	VDE/CE

Product Advantages

Safety Features

IP65 waterproof structure
Anti-thunder and rust-proof design
Fully isolated input/output for electrical safety
Over/under voltage protection
Over/under frequency protection
Islanding protection

Performance & Installation

Aluminum alloy body for optimal heat dissipation
Easy installation and maintenance
Compact micro converter design

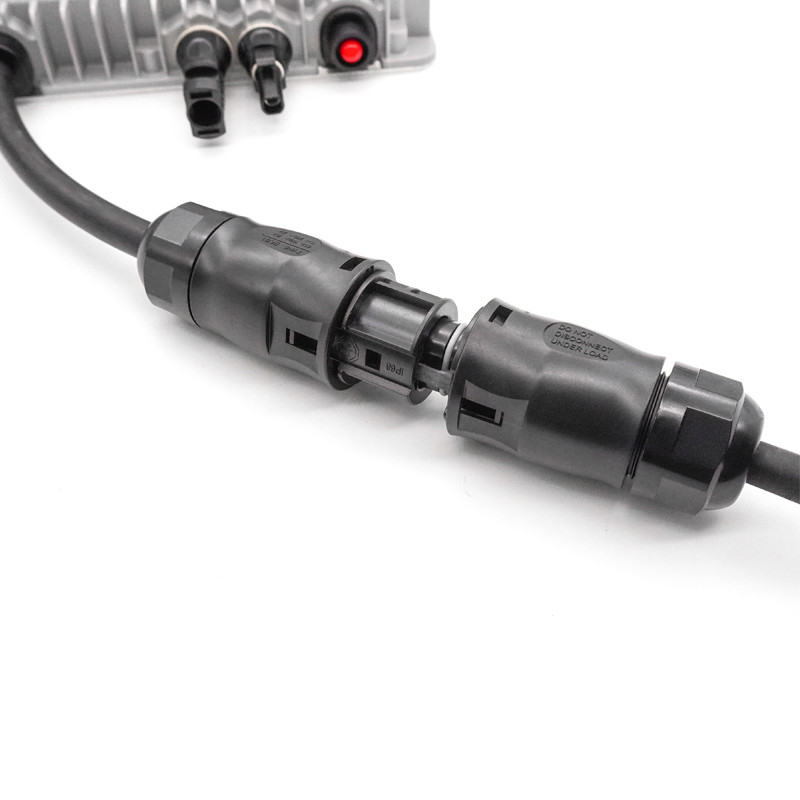

Product Image

Frequently Asked Questions

1. When can I get the quotation?

Within 24 hours of getting the inquiry. For urgent pricing requests, please call us with complete cable specifications.

2. How long about the delivery?

Typically 3-4 working days after payment, depending on order quantity.

3. What's your payment terms?

We accept T/T (bank transfer) and L/C.

4. Do you accept the customized order?

Yes, we accept customized orders.

5. Do you offer OEM & ODM?

Yes, OEM and ODM services are available.
