12AWG 1500VDC Solar Panel Connectors with Quick Assembly Male/Female PV Connectors

Name: 12AWG 1500VDC Solar Panel Connectors with Quick Assembly Male/Female PV Connectors
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV005
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: PV005

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: 100sets/polybag 500sets/carton

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 5000pairs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Spanners Solar Connectors, 12AWG Solar Panel Cable Connectors, IP67 Solar Panel Connectors


Product Name:	Solar Pv Connector	Material:	UL94-Vo&UL94-5va
Gender:	Female And Male	Rated Voltage:	1500VDC
Protection Degree:	IP67	Color:	Black
Application:	Solar Power System	Contact Material:	Copper/tin Plated

Product Name:	Solar Pv Connector
Material:	UL94-Vo&UL94-5va
Gender:	Female And Male
Rated Voltage:	1500VDC
Protection Degree:	IP67
Color:	Black
Application:	Solar Power System
Contact Material:	Copper/tin Plated

Description

12AWG 1500VDC Solar Panel Connectors with Quick Assembly Male/Female PV Connectors

12AWG Solar Panel Cable Connectors With Spanners Male / Female

Solar Connectors with Spanners Solar Panel Cable Connectors Male/Female (12AWG)

Description

Rated voltage -1500V DC; Rated Current:30A; These solar connectors' degree of waterproof is IP67 and designed with sealing ring for dust resistance. Waterproof ring on connection effectively seals out water and dust to prevent corrosion. Features quick & simple assembly processing and easy removal of plugs.

Type

connector PV005

Technical Specifications

Electrical Features
Rated Current	25A(2.5/4mm2),30A(4/6mm2)
Withstanding Voltage	1500V DC(TUV),600V(UL)
Contact Resistance	≤0.3mΩ
Protection Class	Class II
Mechanical Features
Temperature Range	-40°C~+90°C
Protection Degree	IP2X,unmated; IP67,mated
Wire Size Range	2.5/4/6mm2(14AWG,12AWG,10AWG)
Unmating Force	200 Newton
Material Features
Insulation Material	PPO
Contact Material	Copper,Tin plated
Flame Class	UL94-V0 or UL94-5VA

Key Advantages

Simple, quick, safe and effective field assembly
Independently developed with innovative design and independent intellectual property rights
High mechanical endurance
High current and voltage carrying capacity: 30A, 1500VDC
Low transition resistance
Innovative sealed, waterproof, dust resistance design: IP68
Excellent plastic material (UL 94-V0) with wide temperature range (-40°C to 90°C), weather and UV resistant for long-time outdoor applications
TUV approved

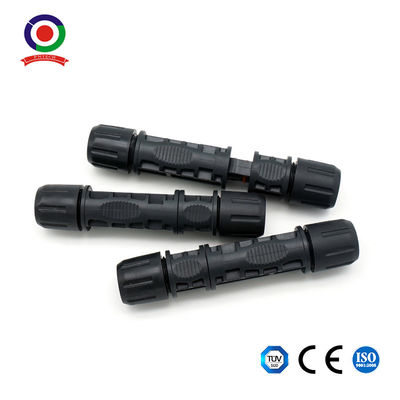

Product Image

Frequently Asked Questions

1. When can I get the quotation?

Within 24 hours of getting the inquiry. For urgent pricing requests, please call us with complete connector specifications for immediate calculation.

2. How long is the delivery time?

Typically 3-4 working days after payment, depending on order quantity.

3. What are your payment terms?

We accept T/T (bank transfer) and L/C.

4. Do you accept customized orders?

Yes, we do.

5. Do you offer OEM & ODM services?

Yes, OEM & ODM services are available.
