TUV Certified 1500V DC Solar PV Connector with Copper/Tin Plated Contacts and PPO Insulation for Solar Power Systems

Name: TUV Certified 1500V DC Solar PV Connector with Copper/Tin Plated Contacts and PPO Insulation for Solar Power Systems
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV005
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: PV005

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: 100sets/polybag 500sets/carton

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 5000pairs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    1500V DC Solar Pv Connectors, IP67 Waterproof Solar Pv Connectors, Female Mc4 Solar Connector


Product Name:	Solar Pv Connector	Material:	UL94-Vo&UL94-5va
Gender:	Female And Male	Rated Voltage:	1500VDC
Protection Degree:	IP67	Color:	Black
Application:	Solar Power System	Contact Material:	Copper/tin Plated

Product Name:	Solar Pv Connector
Material:	UL94-Vo&UL94-5va
Gender:	Female And Male
Rated Voltage:	1500VDC
Protection Degree:	IP67
Color:	Black
Application:	Solar Power System
Contact Material:	Copper/tin Plated

Description

TUV Certified 1500V DC Solar PV Connector with Copper/Tin Plated Contacts and PPO Insulation for Solar Power Systems

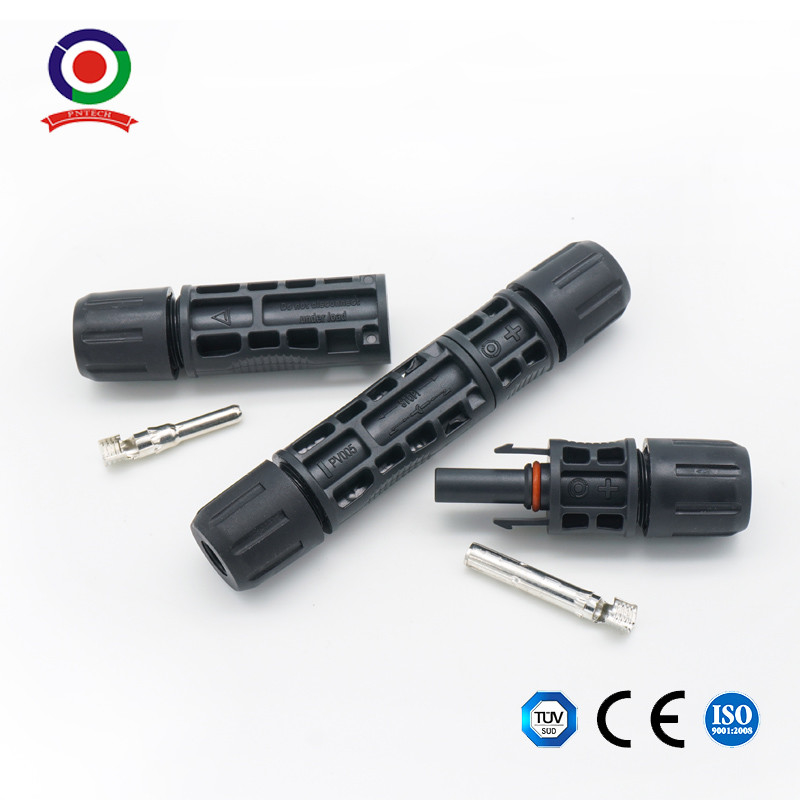

TUV Certified 1500V DC Solar PV Connectors IP67 Waterproof Male And Female

Product Description

Our TUV Certified 1500V DC MC4 Solar Connector features IP67 waterproof rating for male and female connections. Designed for compatibility with PV cables (Solar Cable) with insulation diameters ranging from 13AWG to 10AWG, making it suitable for various solar cable specifications on the market.

This enhanced version features a ratcheting gland back nut that prevents backspin once tightened. The optimized design uses high-quality materials including gland nuts, environmental gaskets, wire-retention collets, and contacts that accept multiple wire gauges, reducing part count while increasing cost efficiency.

Technical Specifications

Electrical Features
Rated Current	25A(2.5/4mm²), 30A(4/6mm²)
Withstanding Voltage	1500V DC(TUV), 600V(UL)
Contact Resistance	≤0.3mΩ
Protection Class	Class II
Mechanical Features
Temperature Range	-40°C to +90°C
Protection Degree	IP2X (unmated); IP67 (mated)
Wire Size Range	2.5/4/6mm² (14AWG, 12AWG, 10AWG)
Unmating Force	200 Newton
Material Features
Insulation Material	PPO
Contact Material	Copper, Tin plated
Flame Class	UL94-V0 or UL94-5VA

Key Advantages

Simple, quick, safe and effective field assembly
Innovative design with independent intellectual property rights
High mechanical endurance for reliable performance
High current and voltage capacity: 30A, 1500VDC
Low transition resistance for efficient power transmission
Advanced waterproof and dust resistance design: IP68 rating
Durable UL 94-V0 rated materials with wide temperature range (-40°C to 90°C)
Weather and UV resistant for long-term outdoor applications
TUV certified for quality assurance

Frequently Asked Questions

1. When can I get the quotation?

Within 24 hours of receiving your inquiry. For urgent pricing requests, please call us with complete connector specifications for immediate calculation.

2. How long is the delivery time?

Typically 3-4 working days after payment confirmation, depending on order quantity.

3. What payment methods do you accept?

We accept T/T (bank transfer) and L/C payments.

4. Do you accept customized orders?

Yes, we accommodate customized specifications.

5. Do you offer OEM & ODM services?

Yes, both OEM and ODM services are available.
