Product Details
Place of Origin: China
Brand Name: Pntech
Certification: TUV/CE/ISO9001
Model Number: PV005
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: 100sets/polybag 500sets/carton
Delivery Time: 3-10days
Payment Terms: L/C, T/T
Supply Ability: 5000pairs per day
Product Name: |
Mc4 Connector |
Material: |
UL94-Vo&UL94-5va |
Gender: |
Female And Male |
Rated Voltage: |
1500VDC |
Protection Degree: |
IP67 |
Color: |
Black |
Application: |
Solar Power System |
Contact Material: |
Copper/tin Plated |
Product Name: |
Mc4 Connector |
Material: |
UL94-Vo&UL94-5va |
Gender: |
Female And Male |
Rated Voltage: |
1500VDC |
Protection Degree: |
IP67 |
Color: |
Black |
Application: |
Solar Power System |
Contact Material: |
Copper/tin Plated |

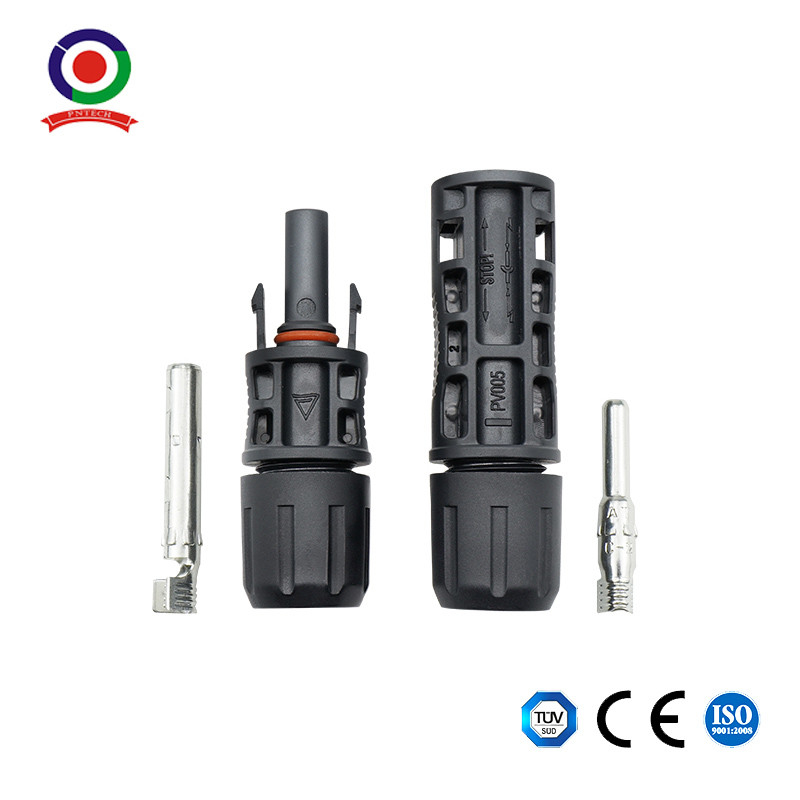

TUV Certified 1500V DC mc4 Solar Connector IP67 Waterproof Male And Female
Description:
MC4 connectors are single-contact electrical connectors commonly used for connecting solar panels. The new 1500v solar connector is an evolution of well-known H4 connector and is globally certified to mate with the H4. new 1500v solar connector uses ours low resistance contact technology giving it the ability to accept wire gauges from 14AWG/2.5mm² to 8 AWG/10mm², and an IP67 rating. An enhancement over the H4, is the new 1500v solar connector ratcheting gland back nut, which prevents backspin once the nut is tightened. The amount and characteristics of materials used to make the new 1500v solar connector have resulted in a more efficient and optimized design. By using gland nuts, environmental gaskets, wire-retention collets, and contacts that accept multiple wire gauges, part count goes down and cost-savings goes up. our new 1500v solar connector is the ideal choice for all PV modules and installations around the world.
| Type: connector PV005 | |
| Electrical Features: | |
| Rated Current | 25A(2.5/4mm2),30A(4/6mm2) |
| Withstanding Voltage | 1500V DC(TUV),600V(UL) |
| Contact Resistance | ≤0.3mΩ |
| Protection Class | Class II |
| Mechanical Features: | |
| Temperature Range | -40 oC~+90oC |
| Protection Degree | IP2X,unmated;IP67,mated |
| Wire Size Range | 2.5/4/6mm2(14AWG,12AWG,10AWG) |
| Unmating Force | 200 Newton |
| Material Features: | |
| Insulation Material | PPO |
| Contact Material | Copper,Tin plated |
| Flame Class | UL94-V0 or UL94-5VA |
Advantage:
• Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1500VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV
Picture of connector:
