Tinned Copper Xlpo Insulation Jacket TUV Solar Electric Cable Solar Cable 6mm2

Place of Origin China
Brand Name Pntech
Certification TUV/CE/ISO9001
Model Number H1Z2Z2-K 1x6mm2
Minimum Order Quantity 200m
Price Negotiation
Packaging Details 200m/roll export carton
Delivery Time 3-10days
Payment Terms L/C, T/T
Supply Ability 50000m per day
Product Details
Product Name Solar Wire Cable Insulation XLPO
Packing 200m/roll Conductor Tinned Copper
Struction 84/0.285mm Rate Voltage 1KV AC 1500V DC
Color Black And Red
Leave a Message
Product Description

Tinned Copper Xlpo Insulation Jacket TUV Solar Electric Cable Solar Cable 6mm2



Tinned Copper Xlpo Insulation Jacket TUV Solar Electric Cable Solar Cable 6mm2 0

Solar cables are terminated with solar panel Connectors,connectors with stable self-locking system which is easy to lock and open.

10awg solar cable connecting to solar panel and bare on the other end connecting to solar charge controller.

Using large diameter cable minimizes power loss in your solar panel system.

It is easy to use and very suitable for irregular surfaces.

Such as installed on rooftops, RVs, trailers, ships, recreational vehicles or yachts. and suitable for installing 50W to 600W solar panels.
Solar Energy Cables are used to connect one solar panel to another.
The solar cable features an electrolytic annealed tinned copper conductor and a halogen free black thermosetting rubber outer sheath.

TYPE Cross section Wire struct Conductor diameter Outer diameter Conductor resistance Rated voltage Rated current
mm2 No.OD (mm) mm mm Ω/Km V AC/DC A
1X2.5mm2 2.5 48XΦ0.285 2 5.2 8.06 1000/1800 30
1X4.0mm2 4 56XΦ0.285 2.6 5.9 5.09 1000/1800 50
1X6.0mm2 6 84XΦ0.285 3.3 6.6 3.39 1000/1800 70
1X10mm2 10 80XΦ0.40 4.4 8.3 2.12 1000/1800 95
2X2.5mm2 2.5 48XΦ0.25 2 6.2*9.90 8.06 1000/1800 30
2X4.0mm2 4 56XΦ0.30 2.6 6.9*11.30 4.97 1000/1800 50
2X6.0mm2 6 81XΦ0.30 3.3 7.1*14.50 3.52 1000/1800 70



Envisaging the above information solar energy and its main source solar cables are very safe, durable, resistant to environmental impacts and very reliable. What is more important they will do no harm to the environment and there is no fear that there will be the power cut off or some other problems, what the majority of the population is facing during power provision problems. No matter what, houses or offices will have a guaranteed current and they will not be interrupted during working, no time is wasted, not much money is spent and no hazardous fumes are emitted during its working causing so much damage to heat and to nature.



Advantage:



· Dual wall insulation.Electron beam cross-linked

· Excellent resistance to U.V,oil,greases,oxygen and ozone

· Excellent resistance to abrasion

· Halogen free, flame retardant,low toxicity

· Excellent flexibility and stripping performance

· High Voltage and Current carring capacity

· TUV approved



Solar cables have a lot of benefits besides being nature-friendly they stand out among others with durability that lasts around 30 years regardless of the weather condition, temperatures and they are ozone resistant. Solar cables are protected against ultraviolet rays. It is characterized with low smoke emission, less toxicity, and corrosivity in the fire. Solar cables can withstand flames and fire, they can be easily installed and they are recycled without problems as modern regulations about environment require. Their different colors enable their fast identification.

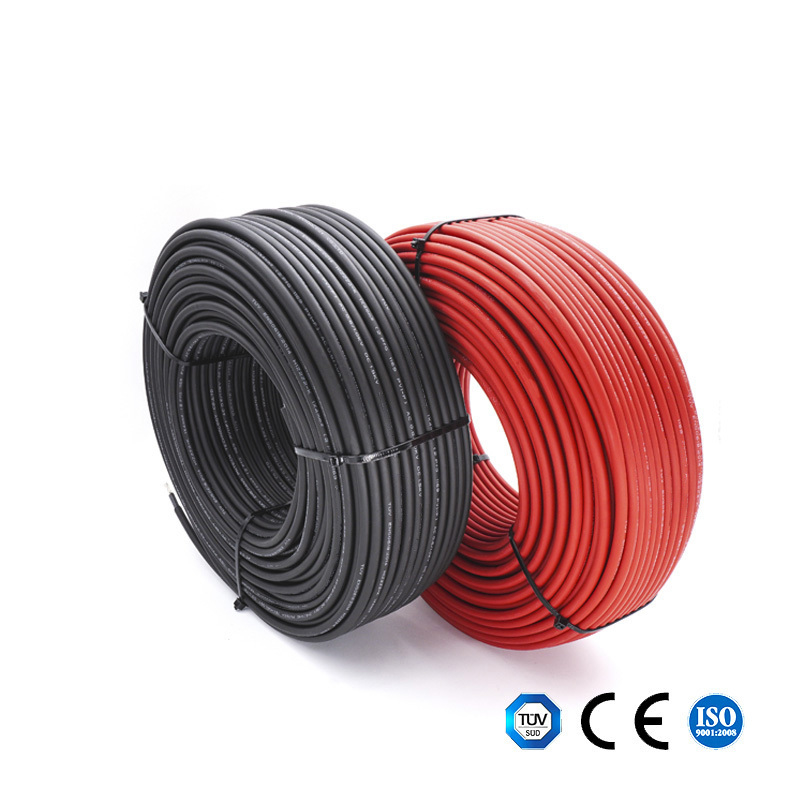

Photo of pv solar cable 6mm2

Tinned Copper Xlpo Insulation Jacket TUV Solar Electric Cable Solar Cable 6mm2 1



Packing:



Standard Export package:

200m/roll,1000m/roll on the pallet or wooden drum



Delivery:



Within 3-10 working Days once Order Confirmed

Port: Ningbo, or other ports as per your requireents.
Sea freight:FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency



FAQ:



1. When can I get the quotation?

Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.

2. How long about the delivery?

Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?

We accept T/T (bank transfer), L/C

4. Do you accept the customized order?

Yes, we do.

5. Do you offer OEM & ODM?

Yes. OEM & ODM are available.
