Tuv Certified Solar Cable 4mm2 Uv Resistant En50618
| Place of Origin | China |
|---|---|
| Brand Name | Pntech |
| Certification | TUV/CE/CQC/ISO9001 |
| Model Number | H1Z2Z2-K 1x4mm2 |
| Minimum Order Quantity | 100m |
| Price | Negotiation |
| Packaging Details | 250m/roll, two rolls per carton, Carton size: 42*42*22cm Also pack according to customer's requirements |
| Delivery Time | 3-15days |
| Payment Terms | L/C, T/T |
| Supply Ability | 70000 Meters per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Solar Cable 4mm2 | Material | XLPE |
|---|---|---|---|
| Conductor | Tinned Copper | Construction | 56/0.28mm |
| Thickness | 0.8mm | Resistance | 5.09 Ω/km (MAX. At 20℃) |
| Cable OD | 5.9mm | Color | Black Or Red |
| High Light | tuv solar cable 4mm2,uv resistant solar cable 4mm2,en50618 pv cable 4mm2 |
||
Product Description
TUV certified 25years working life UV resistant EN50618 solar cable 4mm2
Accepts OEM. We also can design the cable according to your instructions, the color, specifications, length of our cables and connectors can be customized by the customers.
1) Electron beam cross-linked materials do not melt or flow, even at high temperature, high resistance against heat, cold,abrasion, UV, ozone and hydrolyses.
2) These cables provide the means to interconnect between photovoltaic(PV) panels and from panels to the inverter.
3)They operate at DC voltage and provide long life in exposed conditions.
|
Cross Section
mm2
|
Insulation Mediun Thickness(mm)
|
Sheath Mediun Thickness(mm)
|
Electric res. At 20℃
≤ Ω/km
|
Testing Voltage
A.C.kv/5min
|
|
1x1.5
|
0.7
|
0.8
|
13.5
|
6.5
|
|
1x2.5
|
0.7
|
0.8
|
8.21
|
6.5
|
|
1x4
|
0.7
|
0.8
|
5.09
|
6.5
|
|
1x6
|
0.7
|
0.8
|
3.39
|
6.5
|
|
1x10
|
0.7
|
0.8
|
1.95
|
6.5
|
|
1x16
|
0.7
|
0.8
|
1.24
|
6.5
|
1. TUV and CE certificate
2. Standard: 2 PFG 1169 08.2007
3. Type: PV1-F 1x4,0mm2
4. Conductor Material : Stranded tinned copper
5. Composition(NO./mm): 56/0.3
6 .Insulation Material: XLPE
7. Min. Thickness(mm): 0.5
8. Sheath Material :XLPE
9. Outer Diameter(mm) :6.10±0.2
10. Conductor dc resistance ≤5.09Ω/km
11. Rated voltage: AC 0.6~1.0KV , DC1.8KV
12. Ambient temperature: -40~+90C
13. The expected period of use: 25years
14. Flame rated IEC60332-1-2
Features:
1) Electron beam cross-linked materials do not melt or flow, even at high temperature, high resistance against heat, cold,abrasion, UV resistant, ozone and hydrolyses.
2) These cables provide the means to interconnect between photovoltaic(PV) panels and from panels to the inverter.
3) They operate at DC voltage and provide long life in exposed conditions.

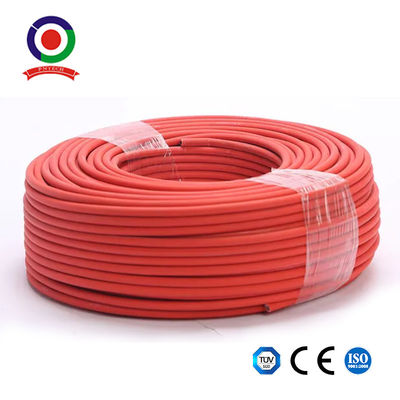

Picture of solar cable 4mm2
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
