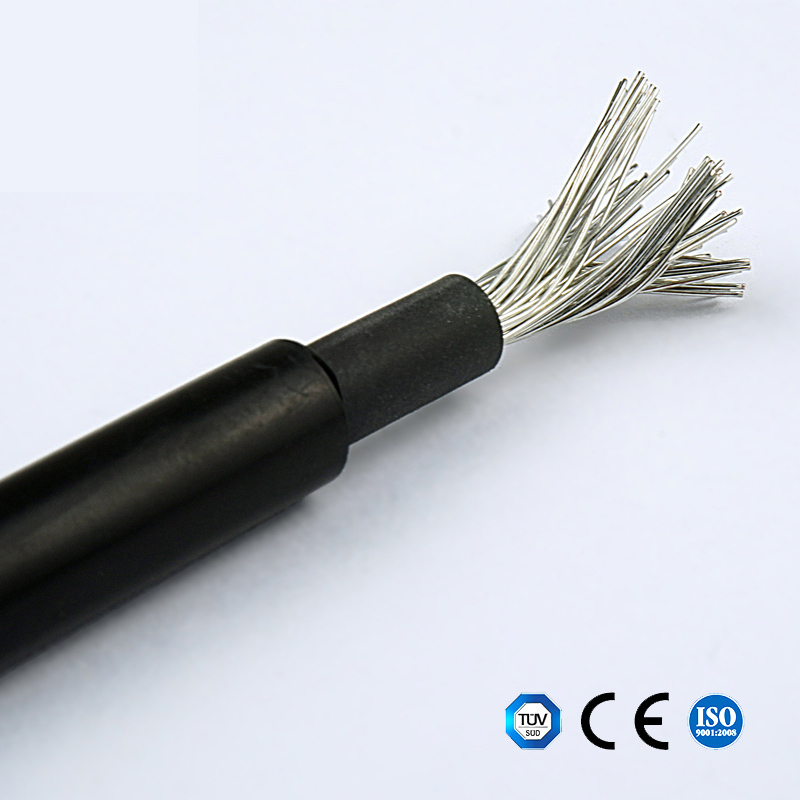

Waterproof Xlpo Dc Solar 4mm Single Core Cable Iec 60228

Place of Origin China
Brand Name Pntech
Certification TUV/CE/CQC/ISO9001
Model Number PV1-F 1x4mm2
Minimum Order Quantity 100m
Price Negotiation
Packaging Details 250m/roll, two rolls per carton, Carton size: 42*42*22cm Also pack according to customer's requirements
Delivery Time 3-15days
Payment Terms L/C, T/T, Western Union
Supply Ability 70000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name DC Single Core Solar Cable Material XLPE
Conductor Tinned Copper Construction 56/0.3mm
Thickness 0.8mm Resistance 5.09 Ω/km (MAX. At 20℃)
Cable OD 6.0mm Color Black Or Red
High Light

waterproof 4mm single core cable

,

4mm single core cable iec 60228

,

single core solar cable 4mm

Leave a Message
Product Description

Waterproof TUV Sdi Dc Solar Cable According To IEC 60228

1) Electron beam cross-linked materials do not melt or flow, even at high temperature, high resistance against heat, cold,abrasion, UV, ozone and hydrolyses.
2) These cables provide the means to interconnect between photovoltaic(PV) panels and from panels to the inverter.
3)They operate at DC voltage and provide long life in exposed conditions.



Cross Section
mm2
Insulation Mediun Thickness(mm)
Sheath Mediun Thickness(mm)
Electric res. At 20℃
≤ Ω/km
Testing Voltage
A.C.kv/5min
1x1.5
0.7
0.8
13.5
6.5
1x2.5
0.7
0.8
8.21
6.5
1x4
0.7
0.8
5.09
6.5
1x6
0.7
0.8
3.39
6.5
1x10
0.7
0.8
1.95
6.5
1x16
0.7
0.8
1.24
6.5



1. TUV and CE certificate
2. Standard: 2 PFG 1169 08.2007
3. Type: PV1-F 1x4,0mm2
4. Conductor Material : Stranded tinned copper
5. Composition(NO./mm): 56/0.3
6 .Insulation Material: XLPE
7. Min. Thickness(mm): 0.5
8. Sheath Material :XLPE
9. Outer Diameter(mm) :6.10±0.2
10. Conductor dc resistance ≤5.09Ω/km
11. Rated voltage: AC 0.6~1.0KV , DC1.8KV
12. Ambient temperature: -40~+90C
13. The expected period of use: 25years
14. Flame rated IEC60332-1-2


Features:
1) Electron beam cross-linked materials do not melt or flow, even at high temperature, high resistance against heat, cold,abrasion, UV resistant, ozone and hydrolyses.
2) These cables provide the means to interconnect between photovoltaic(PV) panels and from panels to the inverter.
3) They operate at DC voltage and provide long life in exposed conditions.

 Waterproof Xlpo Dc Solar 4mm Single Core Cable Iec 60228 0
Waterproof Xlpo Dc Solar 4mm Single Core Cable Iec 60228 1Waterproof Xlpo Dc Solar 4mm Single Core Cable Iec 60228 2Waterproof Xlpo Dc Solar 4mm Single Core Cable Iec 60228 3Waterproof Xlpo Dc Solar 4mm Single Core Cable Iec 60228 4



FAQ:


1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
