Brown Grey 4mm2 1500V Solar Dc Cable With TUV Certified
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Single Core Solar Cable 4mm2 | Structure | 56/0.285mm |
|---|---|---|---|
| Insulation Material | XLPE | Jacket Material | XLPE |
| Jacket Thickness | 0.8mm | Cable OD | 5.9mm |
| Resistance | 5.09（Ω/KM） | Color | Grey / Brown |
| Conductor Material | Tinned Copper | Packing | 250m / Roll |
| High Light | single core solar dc cable,1500v 4mm2 solar dc cable,single core 4mm solar cable |
||
Product Description
High quality Brown Grey 4mm2 1500V DC solar panel cable wire with TUV certified
Designed for outdoor use and is moisture, high/low temperature, UV and corrosion resistant, waterproof/IP67.Produce optimal power output even in high temperature conditions.Tinned copper wire, 12 AWG (4mm²) wire, 250m, 56 strands 0.285 mm tinned copper wire, protecting them from corrosion, and easy to solder.
PV Wire - PV Jacket insulation is thick and sturdy, coated well, durable and very flexible, UV Resistant.
Wide temperature range: -40°F to 248°F (-40°C to 120°C), rated voltage is 600V, resistant to acid, alkali, oil and strong oxidation. Chemical, flame, aging, weather resistant and electrically insulating.
Technical Data of 4mm DC single core Solar Cable
| Cross Section | AWG | Maximum Conductor Resistance at 20ºC | Maximum insulation Resistance at 20ºC | Maximum insulation Resistance at 90ºC | Current Carrying Capacity | ||
| Single cable free in air | Single cable on surfaces | 2 loaded cables adjacent on surfaces | |||||
| mm2 | - | Ω | MΩ.km | MΩ.km | A | A | A |
| 1.5 | 16 | 13.7 | 859 | 0.859 | 30 | 29 | 24 |
| 2.5 | 14 | 8.21 | 691 | 0.691 | 41 | 39 | 33 |
| 4 | 12 | 5.09 | 579 | 0.579 | 55 | 52 | 44 |
| 6 | 10 | 3.39 | 499 | 0.499 | 70 | 67 | 57 |
| 10 | 8 | 1.95 | 424 | 0.424 | 98 | 93 | 79 |
| 16 | 6 | 1.24 | 342 | 0.342 | 132 | 125 | 107 |
| 25 | 4 | 0.795 | 339 | 0.339 | 176 | 167 | 142 |
| 35 | 2 | 0.565 | 287 | 0.287 | 218 | 207 | 176 |
(We also produce single core of 2.5mm2, 6mm2 and 10mm2, as well as dual cores,
please consult me directly if necessary)
| Wire: Copper (Class 5, tinned) | UV resistance |
| Insulation material: XLPE | High wear and abrasion resistance |
| Double insulation | Flame test according to: DIN EN 50265-2-1 UL1571(VW-1) |
| Halogen-free | Smallest permissible Bending Radius : 5 x D |
| High resistance against oil, greases, oxygen and ozone | Temperature range: -40℃ ~ +90℃ |
| Microde-resistant | Colours: Black & Red |

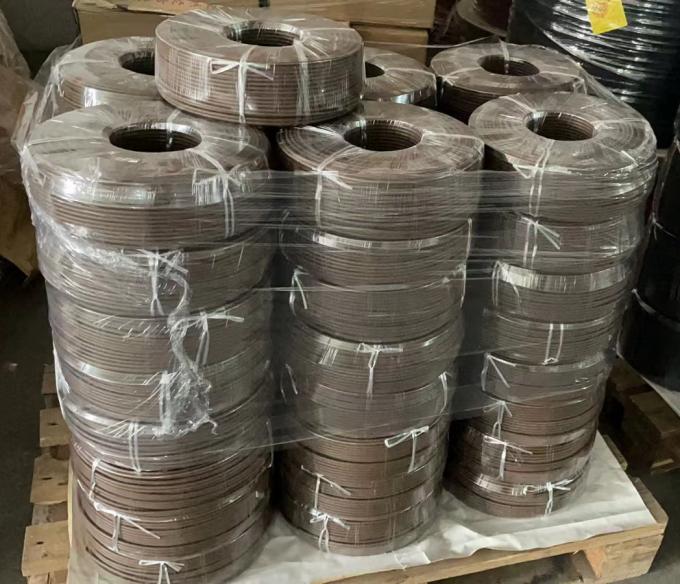

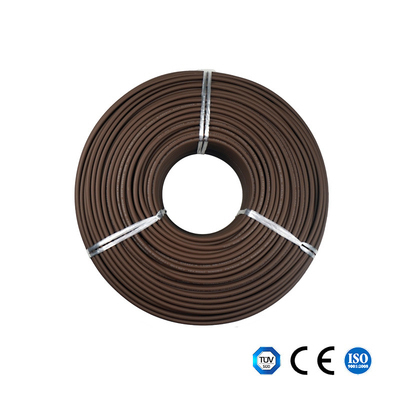

Pictures of 12AWG (4mm²) DC Solar Cable
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
