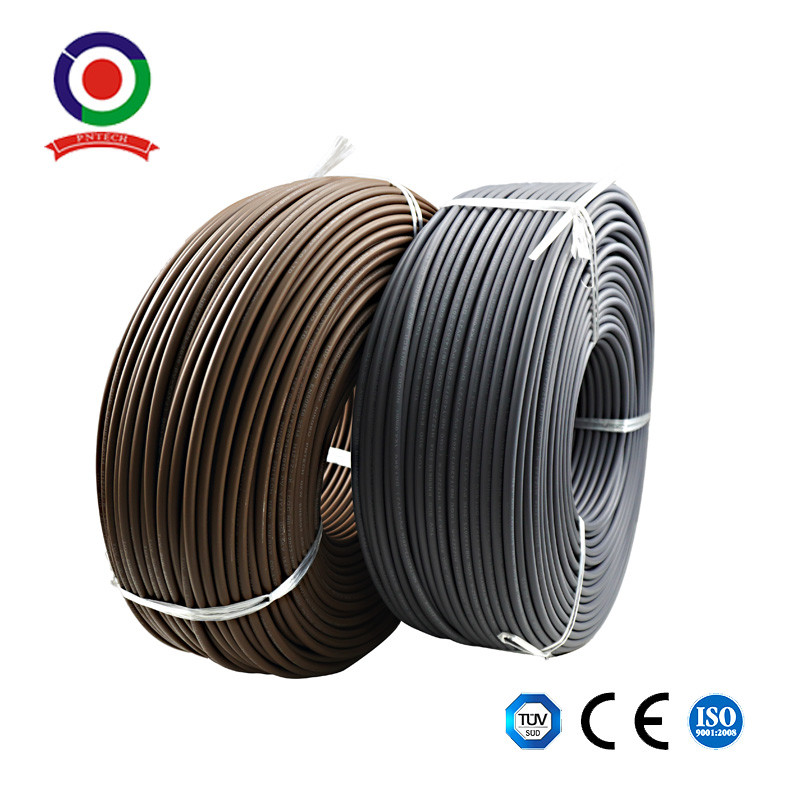

Xlpe 12awg 4mm2 Wire 250m Single Core Solar Cable

Name: Xlpe 12awg 4mm2 Wire 250m Single Core Solar Cable
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K 1x4mm2
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x4mm2

Payment & Shipping Terms

Minimum Order Quantity: 20000M

Price: Negotiation

Packaging Details: 250m per roll

Delivery Time: 3-7days

Payment Terms: L/C, T/T

Supply Ability: 50000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    xlpe single core solar cable, 250m single core solar cable, single core solar panel cable 4mm


Conductor Material:	Tinned Copper	Structure:	56/0.285mm
Insulation Material:	XLPE	Jacket Material:	XLPE
Jacket Thickness:	0.8mm	Cable OD:	5.9mm
Resistance:	5.09（Ω/KM）	Rated Voltage:	AC Uo/U0.6~1.0KV , DC1.8KV
Color:	Grey / Brown	Packing:	250m / Roll

Conductor Material:	Tinned Copper
Structure:	56/0.285mm
Insulation Material:	XLPE
Jacket Material:	XLPE
Jacket Thickness:	0.8mm
Cable OD:	5.9mm
Resistance:	5.09（Ω/KM）
Rated Voltage:	AC Uo/U0.6~1.0KV , DC1.8KV
Color:	Grey / Brown
Packing:	250m / Roll

Description

Xlpe 12awg 4mm2 Wire 250m Single Core Solar Cable

XLPE 12AWG (4mm²) Wire 250M Grey or Brown Solar Panel DC Cable

Tinned copper wire, 12 AWG (4mm²) wire, 250m, 56 strands 0.285 mm tinned copper wire, protecting them from corrosion, and easy to solder.
PV Wire - PV Jacket insulation is thick and sturdy, coated well, durable and very flexible, UV Resistant.
Wide temperature range: -40°F to 248°F (-40°C to 120°C), rated voltage is 600V, resistant to acid, alkali, oil and strong oxidation. Chemical, flame, aging, weather resistant and electrically insulating.

Technical Data of 4mm DC single core Solar Cable

Cross Section	AWG	Maximum Conductor Resistance at 20ºC	Maximum insulation Resistance at 20ºC	Maximum insulation Resistance at 90ºC	Current Carrying Capacity
Cross Section	AWG	Maximum Conductor Resistance at 20ºC	Maximum insulation Resistance at 20ºC	Maximum insulation Resistance at 90ºC	Single cable free in air	Single cable on surfaces	2 loaded cables adjacent on surfaces
mm2	-	Ω	MΩ.km	MΩ.km	A	A	A
1.5	16	13.7	859	0.859	30	29	24
2.5	14	8.21	691	0.691	41	39	33
4	12	5.09	579	0.579	55	52	44
6	10	3.39	499	0.499	70	67	57
10	8	1.95	424	0.424	98	93	79
16	6	1.24	342	0.342	132	125	107
25	4	0.795	339	0.339	176	167	142
35	2	0.565	287	0.287	218	207	176

(We also produce single core of 2.5mm2, 6mm2 and 10mm2, as well as dual cores,

please consult me directly if necessary)

Wire: Copper (Class 5, tinned)	UV resistance
Insulation material: XLPE	High wear and abrasion resistance
Double insulation	Flame test according to: DIN EN 50265-2-1 UL1571(VW-1)
Double insulation	Flame test according to: DIN EN 50265-2-1 UL1571(VW-1)
Halogen-free	Smallest permissible Bending Radius : 5 x D
High resistance against oil, greases, oxygen and ozone	Temperature range: -40℃ ~ +90℃
Microde-resistant	Colours: Black & Red

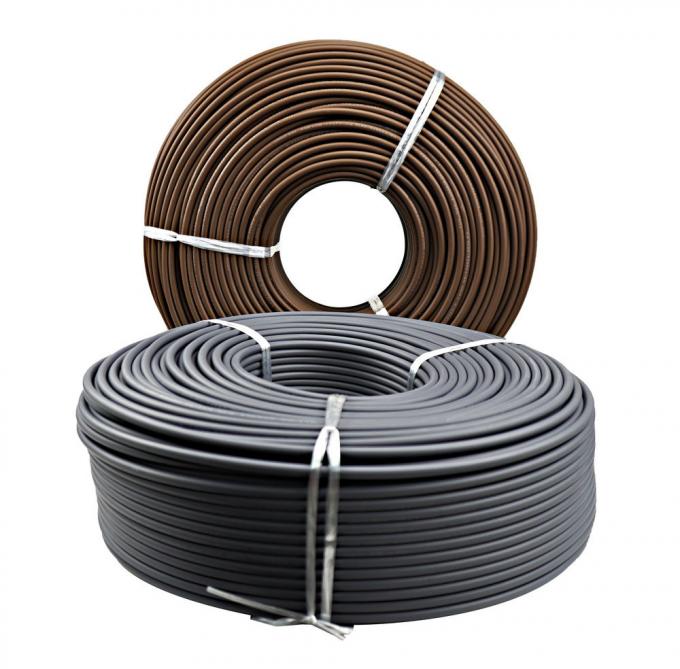

Pictures of 12AWG (4mm²) DC Solar Cable

Xlpe 12awg 4mm2 Wire 250m Single Core Solar Cable 0

FAQ:

1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
