100m DC1.8KV Single Core Solar Cable Red Male Black Female
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Conductor Material | Tinned Copper | Structure | 56/0.285mm |
|---|---|---|---|
| Insulation Material | XLPE | Jacket Material | XLPE |
| Jacket Thickness | 0.8mm | Cable OD | 5.9mm |
| Resistance | 5.09（Ω/KM） | Rated Voltage | AC Uo/U0.6~1.0KV , DC1.8KV |
| Color | Black / Red | Packing | 100m / Roll |
| High Light | dc1.8kv single core solar cable,100m single core solar cable,single core 4mm pv cable |
||
Product Description
XLPE 12AWG (4mm²) Wire 100M Red Male Black Female Solar Panel DC Cable
The 200M solar cable is made with Fully Annealed stranded bare copper conductor, increases conductivity.Designed to withstand extreme heat and cold (-40℃ to 90℃ )and 6 mm² is thick enough to push maximum permissible voltage: up to 1.5 kV.
The red(male) solar cable have multiple resistant: Acid and alkali resistant Resistant to ozone, UV-resistant, very durable to use.
Technical Data of 4mm DC single core Solar Cable
| Cross Section | AWG | Maximum Conductor Resistance at 20ºC | Maximum insulation Resistance at 20ºC | Maximum insulation Resistance at 90ºC | Current Carrying Capacity | ||
| Single cable free in air | Single cable on surfaces | 2 loaded cables adjacent on surfaces | |||||
| mm2 | - | Ω | MΩ.km | MΩ.km | A | A | A |
| 1.5 | 16 | 13.7 | 859 | 0.859 | 30 | 29 | 24 |
| 2.5 | 14 | 8.21 | 691 | 0.691 | 41 | 39 | 33 |
| 4 | 12 | 5.09 | 579 | 0.579 | 55 | 52 | 44 |
| 6 | 10 | 3.39 | 499 | 0.499 | 70 | 67 | 57 |
| 10 | 8 | 1.95 | 424 | 0.424 | 98 | 93 | 79 |
| 16 | 6 | 1.24 | 342 | 0.342 | 132 | 125 | 107 |
| 25 | 4 | 0.795 | 339 | 0.339 | 176 | 167 | 142 |
| 35 | 2 | 0.565 | 287 | 0.287 | 218 | 207 | 176 |
(We also produce single core of 2.5mm2, 4mm2 and 10mm2, as well as dual cores,
please consult me directly if necessary)
| Wire: Copper (Class 5, tinned) | UV resistance |
| Insulation material: XLPE | High wear and abrasion resistance |
| Double insulation | Flame test according to: DIN EN 50265-2-1 UL1571(VW-1) |
| Halogen-free | Smallest permissible Bending Radius : 5 x D |
| High resistance against oil, greases, oxygen and ozone | Temperature range: -40℃ ~ +90℃ |
| Microde-resistant | Colours: Black & Red |

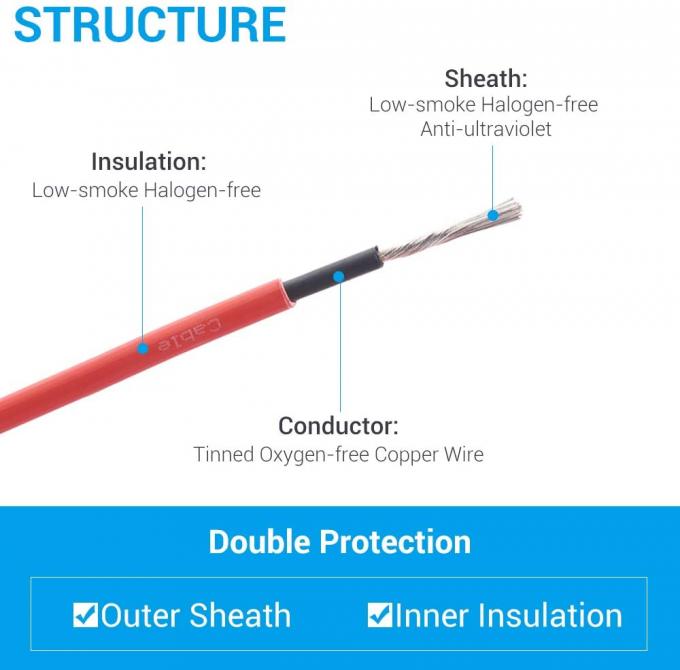

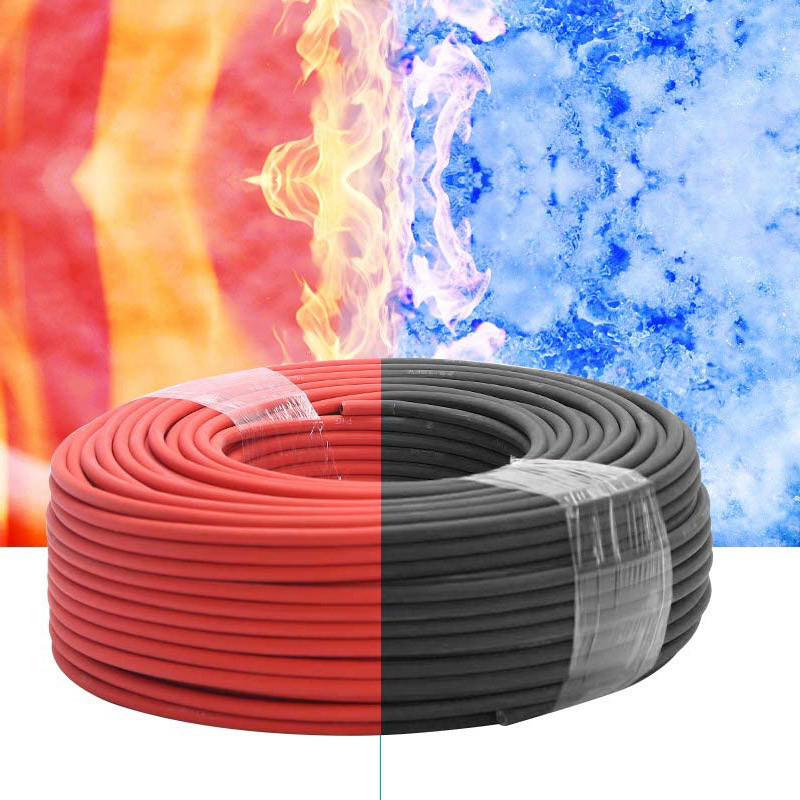

Pictures of 12AWG (4mm²) DC Solar Cable
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
