10 AWG 6mm2 XLPE Solar Cable 200m Roll Tinned Copper

Name: 10 AWG 6mm2 XLPE Solar Cable 200m Roll Tinned Copper
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV1-F 1x6mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: PV1-F 1x6mm2

Payment & Shipping Terms

Minimum Order Quantity: 200m / roll

Price: Negotiation

Packaging Details: 200m per roll

Delivery Time: 3-7days

Payment Terms: L/C,T/T

Supply Ability: 50000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    10 awg single core solar cable, 200m single core solar cable, single core 6mm2 solar cable


Conductor Material:	Tinned Copper	Structure:	84/0.285mm
Insulation Material:	XLPE	Jacket Material:	XLPE
Jacket Thickness:	0.8mm	Cable OD:	6.6mm
Resistance:	3.39（Ω/KM）	Rated Voltage:	AC Uo/U0.6~1.0KV , DC1.8KV
Color:	Black / Red	Packing:	200m / Roll

Conductor Material:	Tinned Copper
Structure:	84/0.285mm
Insulation Material:	XLPE
Jacket Material:	XLPE
Jacket Thickness:	0.8mm
Cable OD:	6.6mm
Resistance:	3.39（Ω/KM）
Rated Voltage:	AC Uo/U0.6~1.0KV , DC1.8KV
Color:	Black / Red
Packing:	200m / Roll

Description

10 AWG 6mm2 XLPE Solar Cable 200m Roll Tinned Copper

10 AWG 6mm² 200m Single Core Solar Cable with XLPE Jacket

High-performance XLPE 10AWG (6mm²) wire in 200M length with red (male) and black (female) connectors for solar panel DC applications.

Features fully annealed stranded bare copper conductor for enhanced conductivity. Engineered to withstand extreme temperatures from -40℃ to 90℃ with a maximum permissible voltage of 1.5 kV. The red (male) solar cable offers multiple resistances including acid, alkali, ozone, and UV resistance for exceptional durability.

Technical Specifications

Type	Cross Section	Strand Design	Conductor Diameter	Conductor Resistance	Outer Diameter	Rated Voltage	Rated Current
PV-1x6mm²	6.0mm²	84x φ0.3mm	3.3mm	3.52 Ω/km	7.1mm	1800VDC	95A

(Available in other sizes: 2.5mm², 4mm², and 10mm² single core, as well as dual cores. Contact us for custom requirements.)

Key Features

• Wire: Copper (Class 5, tinned)

• UV resistance

• Insulation material: XLPE

• High wear and abrasion resistance

• Double insulation

• Flame test compliant: DIN EN 50265-2-1 UL1571(VW-1)

• Halogen-free

• Minimum bending radius: 5 x D

• High resistance against oil, greases, oxygen and ozone

• Temperature range: -40℃ ~ +90℃

• Microbe-resistant

• Colors: Black & Red

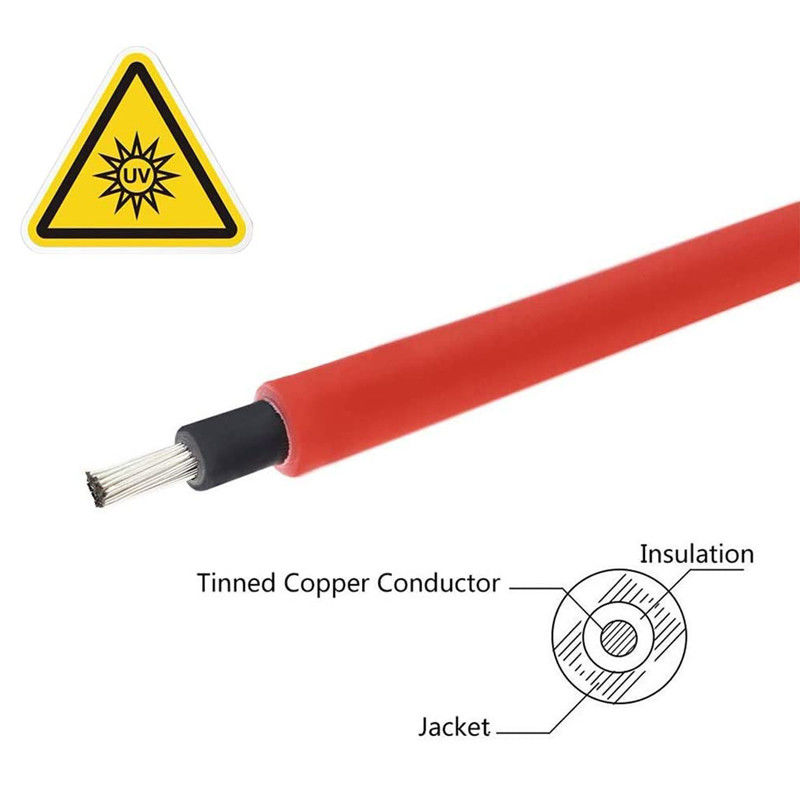

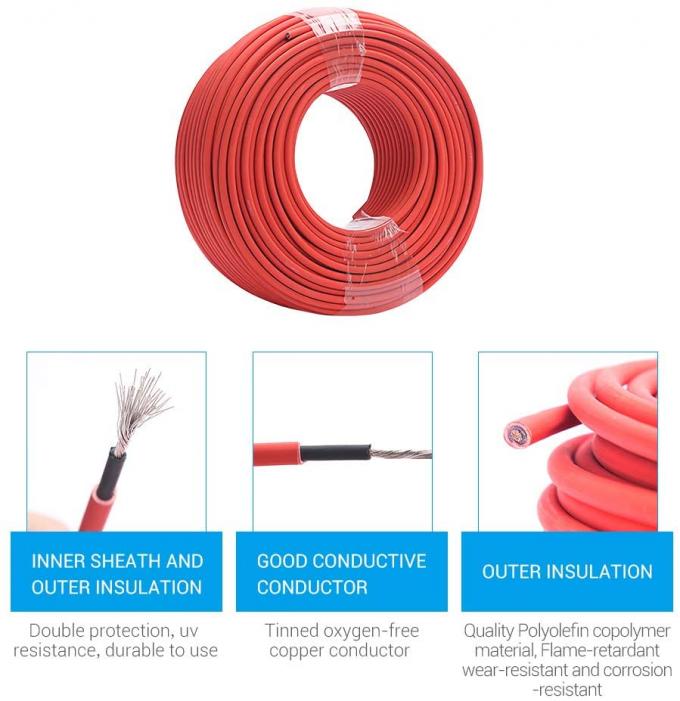

Product Image

10AWG 6mm² DC Solar Cable with red and black connectors

Frequently Asked Questions

1. When can I get the quotation?

Within 24 hours of receiving your inquiry. For urgent pricing, please call us with complete cable specifications.

2. How long is the delivery time?

Typically 3-4 working days after payment, depending on order quantity.

3. What payment methods do you accept?

We accept T/T (bank transfer) and L/C.

4. Do you accept customized orders?

Yes, we accommodate custom requirements.

5. Do you offer OEM & ODM services?

Yes, OEM and ODM services are available.
