Product Details
Place of Origin: China
Brand Name: Pntech
Certification: TUV/CE/ISO9001
Model Number: PV004-EN
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: 100sets/polybag 500sets/carton
Delivery Time: 3-10days
Payment Terms: L/C, T/T
Supply Ability: 5000pairs per day
Product Name: |
Solar Connector |
Material: |
PC |
Gender: |
Female And Male |
Rated Voltage: |
1000VDC |
Protection Degree: |
IP67 |
Color: |
Black |
Application: |
Solar Power System |
Contact Material: |
Copper/tin Plated |
Product Name: |
Solar Connector |
Material: |
PC |
Gender: |
Female And Male |
Rated Voltage: |
1000VDC |
Protection Degree: |
IP67 |
Color: |
Black |
Application: |
Solar Power System |
Contact Material: |
Copper/tin Plated |
500 pairs per carton Solar Connectors - Male & Female IP67 Waterproof Connector
Description:
Solar Connector Conductor pin is tinned Copper: made of PC material, It makes a rock solid connection after you crimp the pin to the wire, and these are operated perfectly under heavy load.With excellent aging resistance and UV endurance, it can be used in harsh environment.It does not need extra instruments for the removal of plugs and removal will not cause any harm to plugs.
Solar Male/Female Connectors, Compatible with different insulation diameters (2.5m㎡--6m㎡/14AWG - 10AWG).
Solar PV Connector, with TUV certified, has inner drum-type material metal connectors, the plugs and minus connector are used with the cable, made of PC material, easy to connector with each other. It is important and indispensable components for photoelectric system.
| Type: connector PV004 | |
| Electrical Features: | |
| Rated Current | 25A(2.5/4mm2),30A(4/6mm2) |
| Withstanding Voltage | 1000V DC(TUV),600V(UL) |
| Contact Resistance | ≤0.3mΩ |
| Protection Class | Class II |
| Mechanical Features: | |
| Temperature Range | -40 oC~+90oC |
| Protection Degree | IP2X,unmated;IP67,mated |
| Wire Size Range | 2.5/4/6mm2(14AWG,12AWG,10AWG) |
| Unmating Force | 200 Newton |
| Material Features: | |
| Insulation Material | PC |
| Contact Material | Copper,Tin plated |
| Flame Class | UL94-V0 or UL94-5VA |
Advantage:
• Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV

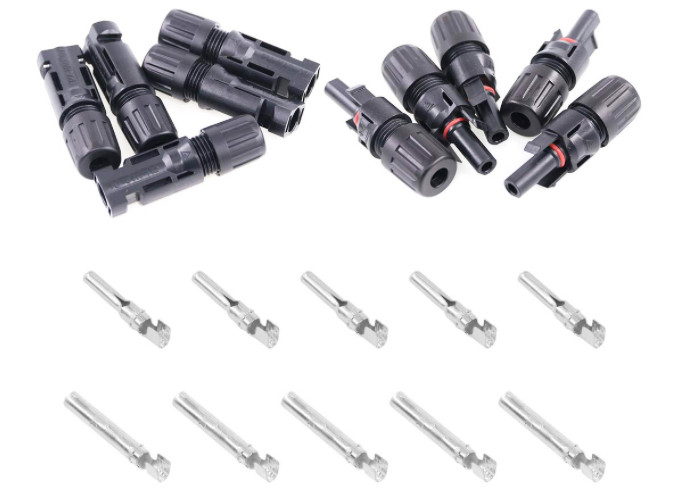

Picture of Solar connector
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the connector. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
