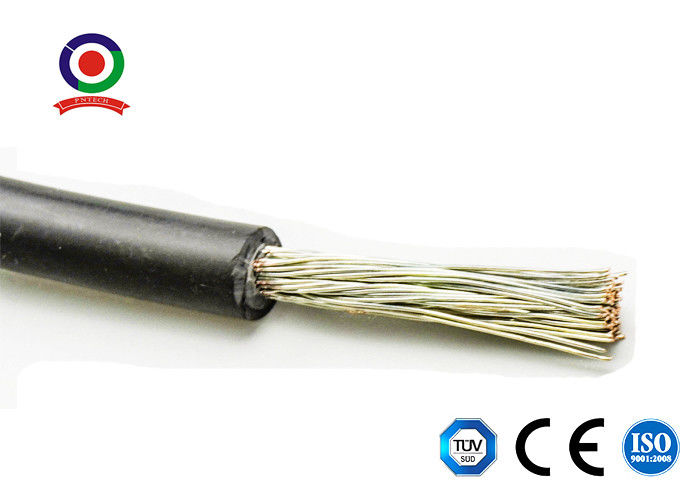

H1Z2Z2-K XLPO Insulation 4mm PV En 50618 Solar Cable
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Single Core Solar Cable 4mm | Keyword | Single Core Solar Cable |
|---|---|---|---|
| Jacket Material | XLPO | Conductor Material | Stranded Tinned Copper |
| Cable OD | 5.8mm | Resistance | ≤5.09（Ω/KM） |
| Color | Black / Red | Packing | 100m Per Roll |
| High Light | PV En 50618 Cable,4mm en 50618 solar cable,PV en 50618 solar cable |
||
Product Description
H1Z2Z2-K EN50618 XLPO Insulation Photovoltaic single core Solar Cable 4mm PV
Advantages of H1Z2Z2-K 4mm2 single core solar cable TUV black and red
Single core 4mm cable for high voltage and high specification solar arrays, installs and strings. Capable of up to 1500v DC and 55A. Double insculated and TUV, CE and MCS approved. Commonly used on ON GRID inverter systems.
The electrical and dimensional properties of this product are measured by the Technical and Quality Assurance department at the JiangNan Cables laboratory. Cable performance in respect of conductor resistance, construction quality (workmanship), dimensional consistency, and other parameters are verified to published standards and approved
| Type | Cross Section | Strand Design | Conductor Diameter | Conductor Resistance | Outer Diameter | Rated Voltage | Rated Current |
| H1Z2Z2-K 1x2.5mm2 | 2.5mm2 | 36x φ0.285mm | 2.0mm | 8.21 Ω/km | 5.4mm | 1500VDC | 50A |
| H1Z2Z2-K 1x4mm2 | 4mm2 | 56x φ0.285mm | 2.6mm | 5.09 Ω/km | 5.9mm | 1500VDC | 70A |
| H1Z2Z2-K 1x6mm2 | 6mm2 | 78x φ0.285mm | 3.3mm | 3.52 Ω/km | 6.7mm | 1500VDC | 95A |
| H1Z2Z2-K 1x10mm2 | 10mm2 | 80x φ0.4mm | 4.4mm | 1.95 Ω/km | 7.4mm | 1500VDC | 98A |
| H1Z2Z2-K 1x16mm2 | 16mm2 | 120x φ0.4mm | 5.2mm | 1.24 Ω/km | 9.2mm | 1500VDC | 132A |
Application :
Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .
Outstanding Advantages :
1. Dual wall insulation.Electron beam cross-linked
2. Excellent resistance to U.V,oil,greases,oxygen and ozone
3. Excellent resistance to abrasion
4. Halogen free, flame retardant,low toxicity
5. Excellent flexibility and stripping performance
6. High current carring capacity
7. TUV approved
| Name | PV Cable |
| The product description | Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries. |
| Product features | Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant. |
| Flame retardant, cutting resistance and penetration resistance. | |
| Cable protection level Ⅱ level. | |
| With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus. | |
| It conforms to ROHS, and the insulation resistance is small after immersion. | |
| Electrical | 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km |
| 2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm | |
| 3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω. | |
| Cable structure | Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F |
| 25, 16 and 10, 6, 4, 2 mm ^ 2 PV wire | |
| Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer. | |
| Sheath: low smoke and halogen free material thickness > 0.5mm. | |
| Detailed parameters | Ambient temperature: - 40 ℃ ~ + 90 ℃ |
| The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃) | |
| Limited voltage: AC0.6/1kv dc1.8kv. |
(We also produce single core of 2.5mm2, 6mm2 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

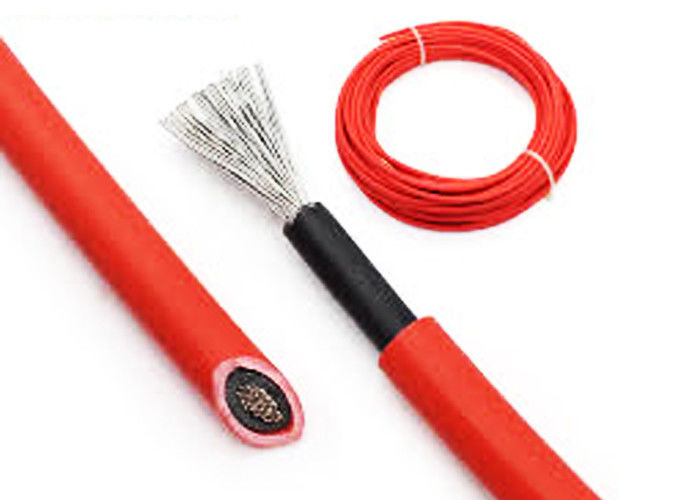

Pictures of 4mm single core Solar Cable
