Oxygen Free 10awg 6mm Single Core Solar Cable
|Place of Origin||China|
|Model Number||H1Z2Z2-K 1x6mm2|
|Minimum Order Quantity||200m / roll|
|Packaging Details||200m/roll, two rolls per carton, Carton size: 42*42*22cm Also pack according to customer's requirements|
|Payment Terms||L/C, T/T|
|Supply Ability||70000m per day|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||Solar Panel Cable 6mm2||Structure||78/0.3mm|
|Insulation Material||XLPE||Temperature Range||-40℃～+90℃|
|Conductor Material||Stranded Tinned Copper||Cable OD||6mm|
|Resistance||≤3.39（Ω/KM）||Rated Voltage||AC Uo/U0.6~1.0KV , DC1.5KV|
|Color||Black / Red||Packing||200m Per Roll|
6mm Single Core Solar Cable,
10awg Single Core Solar Cable,
Oxygen Free Single Core Cable
10AWG Electrical Wire Oxygen Free Copper 1500VDC Red Black single core cable 6mm
The cable is ozone-resistant according to EN50618, UV-resistant according to UNE-HD 605:2008 (HD605/A1), tested for durability according to EN 60216 and designed to last 25 years.
H1Z2Z2-K 1x6mm2 is a single pole, double insulted 6mm² tinned copper wire in 200m length.
1. Rating:Voltage: 600/1000V Temperature:-40°C-- 90°C

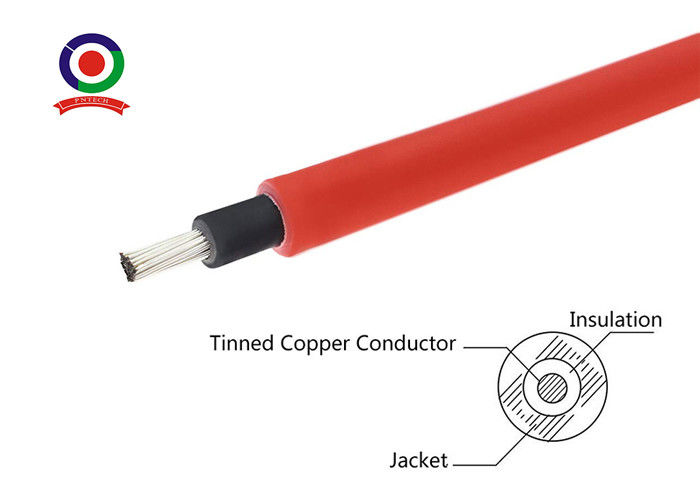

(1) Conductor: Tinned annealed copper
(2) Insulation:90°C XLPE , black
(3) Jacket:90°C XLPE , black or red
(5) Cable OD: 6.0mm
TÜV SÜD EN 50618:2014 H1Z2Z2-K 1x6,0mm2 DC 1.5 KV NINGBO PNTECH NEW ENERGY CO.,LTD
Specifically designed for connecting photovoltaic system components inside and
outside of building and equipment with high mechanical requirements and extreme weather
conditions .For permanent installations.
Cable made of electron-beam cross-linked insulation and coating; high resistance against heat , cold, oil, abrasion, ozone,UV and weather; with improved reaction in case of fire . low smoke, halogen free , flame free ,
flame retardant; flexible, easy to strip, very low space requirement, extremely, extremely
mechanically robust, very long lifetime.
|Product Name||TUV Standard Solar Cable|
|Model NO.||H1Z2Z2-K 1x 6mm2|
|Voltage||High Voltage Cable|
|Material Shape||Round Wire|
|Certification||ROSH, CE, TUV|
|Transport Package||Iron-Wooden Drum, Iron Drum|
|Application||Construction, Underground, Industrial, Power Station|
|Wire Core Material||Tinned Copper|
The advantage of solar cable
1. 99.9% high-purity oxygen-free copper: high quality tin-plated copper, high purity,
anti-aging, high electrical conductivity, low loss, strong current carrying capacity, high
corrosion resistance, and can adapt to outdoor harsh environment.
2, low eccentricity: thickness uniformity, effectively prevent the current breakdown fire,
to ensure safety.
3. Double protection: The solar photovoltaic cable adopts insulation and Jacket double
protection structure to extend the service life of the cable.
4, high-performance polymer materials: Insulating and jacket all use environmentally
friendly low-smoke halogen-free flame-retardant cross-linked polyolefin materials, with
wear-resistant, high temperature, oil, ozone, UV, high flame retardant properties.
5, strong flexibility: cable has a pressure, bending, strong toughness.
6, long service life: normal outdoor use, service life> 25 years
7, advanced equipment: The company has advanced foreign production, scientific research
equipment, passed the ISO9001-2000 quality management system certification, IATF16949:
2016 quality management system certification.
|The product description||Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.|
|Product features||Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.|
|Flame retardant, cutting resistance and penetration resistance.|
|Cable protection level Ⅱ level.|
|With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.|
|It conforms to ROHS, and the insulation resistance is small after immersion.|
|Electrical||1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km|
|2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm|
|3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.|
|Cable structure||Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F|
|25, 16 and 10, 6, 4, 2 mm ^ 2 PV wire|
|Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.|
|Sheath: low smoke and halogen free material thickness > 0.5mm.|
|Detailed parameters||Ambient temperature: - 40 ℃ ~ + 90 ℃|
|The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)|
|Limited voltage: AC0.6/1kv dc1.8kv.|
(We also produce single core of 2.5mm2,4mm2 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

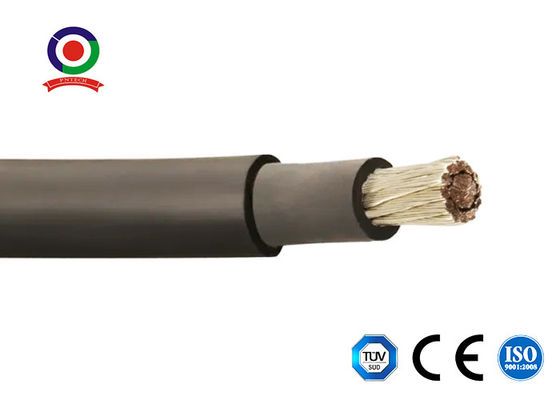

Pictures of 6mm DC PV solar panel Cable
