Product Details
Place of Origin: China
Brand Name: Pntech
Certification: TUV/CE/CQC/ISO9001
Model Number: H1Z2Z2-K 1x4mm2
Payment & Shipping Terms
Minimum Order Quantity: 100m
Price: Negotiation
Packaging Details: 100m/roll, two rolls per carton, Carton size: 42*42*22cm Also pack according to customer's requirements
Delivery Time: 3-15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 70000 Meters per Day
Product Name: |
4mm² Single Core Solar Cable |
Insulation Material: |
XLPO |
Conductor: |
Tinned Copper |
Construction: |
56/0.28mm |
Thickness: |
0.8mm |
Resistance:: |
5.09 Ω/km (MAX. At 20℃) |
Cable OD: |
5.8mm |
Color: |
Black Or Red |
Product Name: |
4mm² Single Core Solar Cable |
Insulation Material: |
XLPO |
Conductor: |
Tinned Copper |
Construction: |
56/0.28mm |
Thickness: |
0.8mm |
Resistance:: |
5.09 Ω/km (MAX. At 20℃) |
Cable OD: |
5.8mm |
Color: |
Black Or Red |

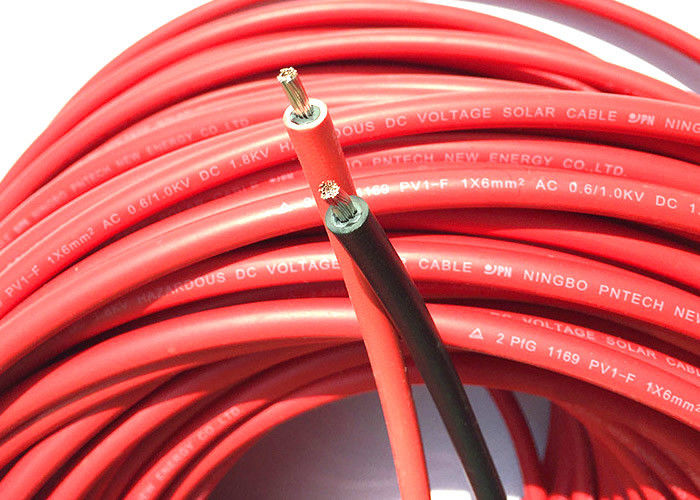

1meter 4mm ON GRID Oxygen Free Copper Black Red wire Solar PV Cable Single Core
Single core 4mm cable for high voltage and high specification solar arrays, installs and strings. Capable of up to 1000v DC and 55A. Double insculated and TUV, CE and MCS approved. Commonly used on ON GRID inverter systems.
Each Unit equals 1 meter. (eg.Order 5 and you will receive a 5m length, not 5 x 1m lengths)
PV Photovoltaic Cable DC Solar Power Cable Application
These cables are designed for connecting photovoltaic system components inside and outside
of buildings and equipment with high mechanical requirements and extreme weather conditions.
PV Photovoltaic Cable DC Solar Power Cable Standards
DIN EN 50618
Fire-resistance performance: IEC 60332-1
Low smoke emission : EN/IEC 61034-2
Halogen free according to EN 50525-1, Annex B
Low corrosivity of gases according to EN 50267-2-2, IEC 60754-2
PV Photovoltaic Cable DC Solar Power CableTechnical Character:
Working voltage:AC: 600/1000V DC: 1800V
Maxium Voltage:1.8KV
Test Voltage: 6.5kV AC
Working Temperature:-40-90 º C
Bending Radiu:
Fixed: 4 x overall diameter
Flexed: 5 x overall diameter
Max. Conductor temperature: 120º C
Short-circuit max. Conductor temperature:250°C
Insulation resistance: 10 MΩ x km
| Type | Cross | Strand | Conductor | Conductor | Outer | Rated | Rated | Weight | |
| section | design | diameter | resistance | diameter | voltage | current | |||
| mm² | No.x ø (mm) | mm | Ω /km | mm | VAC/DC | A | Kg/km | ||
| PV-1*1.5 mm² | 1.5 | 30x ø 0.25 | 1.6 | 13.5 | 4.8 | 1000/1800 | 30 | 35 | |
| PV-1*2.5 mm² | 2.5 | 50x ø 0.25 | 2.0 | 8.21 | 5.3 | 1000/1800 | 41 | 50 | |
| PV-1*4.0 mm² | 4.0 | 56x ø 0.3 | 2.6 | 5.09 | 6.1 | 1000/1800 | 55 | 70 | |
| PV-1*6.0 mm² | 6.0 | 84x ø 0.3 | 3.3 | 3.39 | 7.1 | 1000/1800 | 70 | 95 | |
| PV-1*10.0 mm² | 10.0 | 80x ø 0.4 | 4.4 | 1.95 | 8.5 | 1000/1800 | 98 | 155 | |
| PV-1*16 mm² | 16.0 | 120x ø 0.4 | 5.2 | 1.24 | 10.2 | 1000/1800 | 132 | 230 | |
| PV-1*25 mm² | 25.0 | 196x ø 0.40 | 7.4 | 0.795 | 12.0 | 1000/1800 | 176 | 341 | |
| PV-1*35 mm² | 35.0 | 276x ø 0.40 | 9.00 | 0.565 | 14.0 | 1000/1800 | 218 | 467 | |
Features:
1) Electron beam cross-linked materials do not melt or flow, even at high temperature, high resistance against heat, cold,abrasion, UV resistant, ozone and hydrolyses.
2) These cables provide the means to interconnect between photovoltaic(PV) panels and from panels to the inverter.
3) They operate at DC voltage and provide long life in exposed conditions.
| Name | PV Cable |
| The product description | Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries. |
| Product features | Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant. |
| Flame retardant, cutting resistance and penetration resistance. | |
| Cable protection level Ⅱ level. | |
| With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus. | |
| It conforms to ROHS, and the insulation resistance is small after immersion. | |
| Electrical | 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km |
| 2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm | |
| 3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω. | |
| Cable structure | Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F |
| 18, 16 and 14, 12, 10, 8, 6, 4, 2 mm ^ 2 PV wire | |
| Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer. | |
| Sheath: low smoke and halogen free material thickness > 0.5mm. | |
| Detailed parameters | Ambient temperature: - 40 ℃ ~ + 90 ℃ |
| The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃) | |
| Limited voltage: AC0.6/1kv dc1.8kv. |

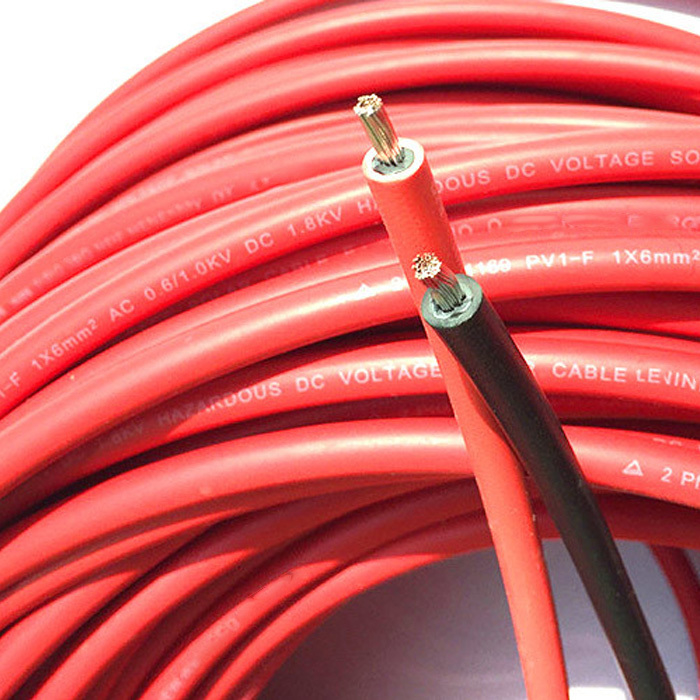

Picture of 4mm² Solar PV Cable Single Core
