Dual Insulation Xlpe 4mm2 5.85mm Solar PV Cable

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: ISO9001/TUV/CE

Model Number: H1Z2Z2-K 1x4mm2

Payment & Shipping Terms

Minimum Order Quantity: 100m

Price: Negotiation

Packaging Details: 100m/roll, 250m/roll, 500m per carton

Delivery Time: 3-10days

Payment Terms: L/C, T/T

Supply Ability: 70000m per day

Get Best Price
Contact Now
Specifications
Highlight:

5.85mm solar pv cable

,

4mm2 solar pv cable

,

insulation xlpe solar pv cable

Product Name:
Solar Dc Wire Cable 4mm2
Conductor:
Tinned Copper
Packing:
1000m/drum
Cable OD:
5.85mm
DC Voltage:
1500V
Color:
Red/Black
Product Name:
Solar Dc Wire Cable 4mm2
Conductor:
Tinned Copper
Packing:
1000m/drum
Cable OD:
5.85mm
DC Voltage:
1500V
Color:
Red/Black
Description
Dual Insulation Xlpe 4mm2 5.85mm Solar PV Cable



Dual insulation XLPO Roof Photovoltaic System H1Z2Z2-K Solar DC Wire Cable 4mm2



Product description



Conductor used in solar cables should be of pure EC grade which results to minimised line losses and project being reliable

Cables should have high grade insulation which has capability to withstand extreme bad weather conditions and have sufficient UV resistance properties which gives safety and long life to solar system.

For more safety and life, we should use tinned coated copper conductor, which protect conductor from moisture and chemical reaction on copper for a long term.



Application: Intended for use in photovoltaic power supply system. These may be installed as free moving, fixed or hanging. They can also be installed in cable trays, conduits, on or in walls.
Conductor: Tinned copper
Insulation: Electron Beam XLPE
Sheath: UV resistant XLPE
Standards: AS/NZS 5000.2
Voltage: 0.6/1 kV AC or 1.8kV DC
Packing Length: 100m, 500m
Normal Operating Temperature: 75°C
Standards: AS/NZS 5033.2012, PV1-F of TUV 2 Pfg 1169/08.2007
Core olour: Single core: red or black
Sheath colour: Black
Operating temperature: -40° C to 90° C.
Maximum Conductor temperature: 120° C.
Fire performance: Vertical flame spread of a single cable: IEC60332-1
Smoke density: IEC61034, EN50268-2







































Having so many environmental problems, because of the waste of natural resources and not taking care of nature, the earth is becoming dried out, and the mankind seeks the ways to find alternative ways, the alternative power energy is already found and is called Solar Energy, gradually Solar photovoltaic industry is getting more and more attention as within time their prices go down and a lot of people considers solar energy as an alternative one for their offices or house power. They find it cheap, clean and reliable. On the background of the increased interest towards the Solar energy, it is expected to increase the demand on solar cables that consists of tinned copper, 1.5mm, 2.5mm, 4.0mm and etc. will be described a bit later. The solar cables are the current transmission mediums of solar energy power generation. They are nature-friendly and much safer than its predecessors. They are interconnecting solar panels.



Technical Data



Conductor : Stranded tinned copper
Refer to IEC 60228 class 5
Inner Insulation: XLPE
Outer Jacket: XLPE
Colour: Black and Red



Product Code Number Size(mm2) Conductor dia. N/mm Insulation dia.(mm) Nominal Jacket dia.(mm) Net Weight/1000 meter(kg)
PV1-F 1x1.5mm2 1.5 30/0.25 3.1 4.7 39
PV1-F 1x2.5mm2 2.5 49/0.25 3.6 5.3 48
PV1-F 1x4mm2 4 56/0.285 4.1 5.8 68
PV1-F 1x6mm2 6 84/0.285 4.7 6.4 88
PV1-F 1x10mm2 10 80/0.40 5.6 7.5 132
PV1-F 1x16mm2 16 126/0.40 7.55 10.2 205



Application :



Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor. Resistance to sunlight, anti-aging, Using the low smoke halogen-free flame retardant materials, higher grade, more safety.



Name PV Cable
The product description Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
Product features Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure Conductor: tinned copper wire 2.5, 4,6,10,16 mm2 PV1 - F
25,16 and 10, 6,4,2.5 mm2 PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
Detailed parameters Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.


(We also produce single core of 2.5mm2, 6mm2, 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

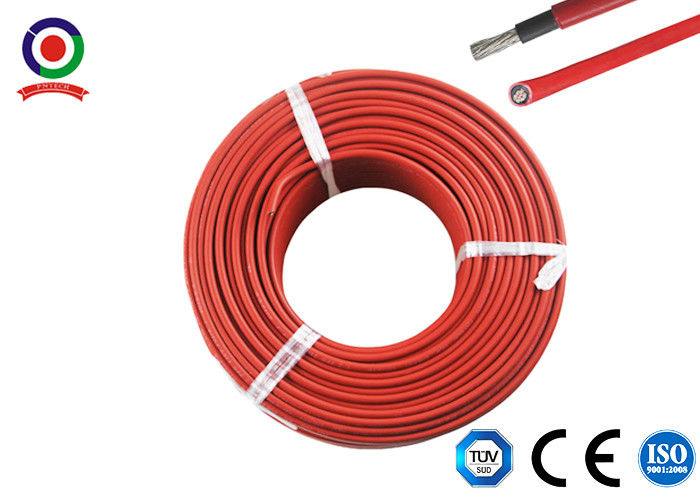

Picture of solar dc wire cable 4mm
