Pntech XLPO Insulation XLPO Sheath Solar Pv Cable

Place of Origin China
Brand Name Pntech
Certification TUV/CE/ISO9001
Model Number H1Z2Z2-K 1x6mm2
Minimum Order Quantity 200m
Price Negotiation
Packaging Details 200m/roll export carton
Delivery Time 3-10days
Payment Terms L/C, T/T
Supply Ability 50000m per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Solar Wires Cables Insulation XLPO
Sheath XLPO Conductor Tinned Copper
Struction 84/0.285mm Rate Voltage 1KV AC 1500V DC
Color Black And Red
High Light

Pntech

,

xlpo insulation solar pv cable

,

xlpo sheath solar pv cable

Leave a Message
Product Description



Everything You Need To Know About Solar Wires & Cables For Use With Solar Power 6mm2



Description:



Solar pv cables are double insulated flexible cables designed for use with solar pv systems. The fine multi-stranded copper conductors are tinned for corrosion resistance, and the outer insulation sheath is highly resistant to UV degradation.



Commercial solar PV panels over 50 watts or so use 10 gauge (AWG) wires. This allows up to 30 amps of current to flow from a single panel. If multiple panels are combined in parallel, then a three to eight AWG “combiner” wire set is generally needed to safely transfer the power to a charge controller.



Cross-Section: 1x6mm2

Rated temperature: -40~90C

Rated Rating:DC:1/1.8kv AC:0.6kv

Rated Current: 41~98A

Weathering Resistance: Sun Res



Specification:



TYPE Cross section Wire struct Conductor diameter Outer diameter Conductor resistance Rated voltage Rated current
mm2 No.OD (mm) mm mm Ω/Km V AC/DC A
1X2.5mm2 2.5 48XΦ0.285 2 5.2 8.06 1000/1800 30
1X4.0mm2 4 56XΦ0.285 2.6 5.9 5.09 1000/1800 50
1X6.0mm2 6 84XΦ0.285 3.3 6.6 3.39 1000/1800 70
1X10mm2 10 80XΦ0.40 4.4 8.3 2.12 1000/1800 95
2X2.5mm2 2.5 48XΦ0.25 2 6.2*9.90 8.06 1000/1800 30
2X4.0mm2 4 56XΦ0.30 2.6 6.9*11.30 4.97 1000/1800 50
2X6.0mm2 6 81XΦ0.30 3.3 7.1*14.50 3.52 1000/1800 70



Advantage:



· Dual wall insulation.Electron beam cross-linked

· Excellent resistance to U.V,oil,greases,oxygen and ozone

· Excellent resistance to abrasion

· Halogen free, flame retardant,low toxicity

· Excellent flexibility and stripping performance

· High Voltage and Current carring capacity

· TUV approved



Solar cables have a lot of benefits besides being nature-friendly they stand out among others with durability that lasts around 30 years regardless of the weather condition, temperatures and they are ozone resistant. Solar cables are protected against ultraviolet rays. It is characterized with low smoke emission, less toxicity, and corrosivity in the fire. Solar cables can withstand flames and fire, they can be easily installed and they are recycled without problems as modern regulations about environment require. Their different colors enable their fast identification.



Packing:



Standard Export package:

200m/roll,1000m/roll on the pallet or wooden drum



Delivery:



Within 3-10 working Days once Order Confirmed

Port: Ningbo, or other ports as per your requireents.
Sea freight:FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency

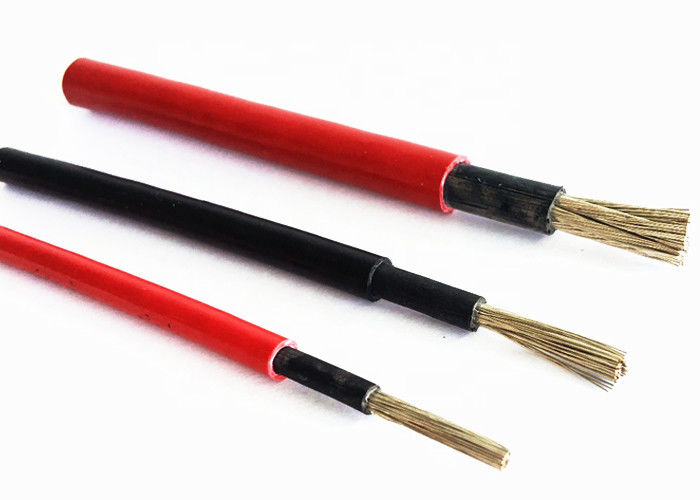

Photo of DC solar wires 6mm2

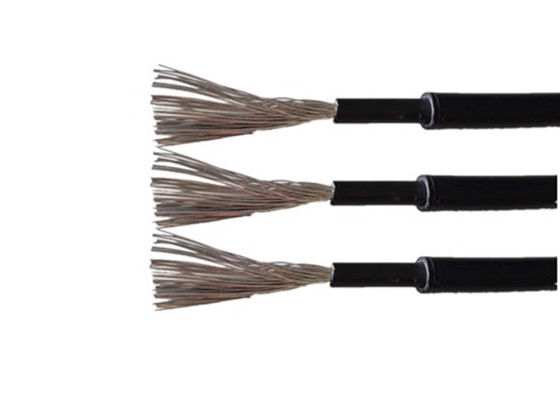

Pntech XLPO Insulation XLPO Sheath Solar Pv Cable 0
