1KV #10 AWG TUV CE 1500VDC Solar PV Cable

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x6mm2

Payment & Shipping Terms

Minimum Order Quantity: 200m

Price: Negotiation

Packaging Details: 200m/roll export carton

Delivery Time: 3-10days

Payment Terms: L/C, T/T

Supply Ability: 50000m per day

Get Best Price
Contact Now
Specifications
Highlight:

1500VDC Solar PV Cable

,

1KV Solar PV Cable

,

#10 AWG Solar PV Cable

Product Name:
XLPO Insulated Solar PV Cable
Insulation:
XLPO
Sheath:
XLPO
Conductor:
Tinned Copper
Struction:
84/0.285mm
Rate Voltage:
1KV AC 1500V DC
Cable OD:
6.6mm
Color:
Black And Red
Product Name:
XLPO Insulated Solar PV Cable
Insulation:
XLPO
Sheath:
XLPO
Conductor:
Tinned Copper
Struction:
84/0.285mm
Rate Voltage:
1KV AC 1500V DC
Cable OD:
6.6mm
Color:
Black And Red
Description
1KV #10 AWG TUV CE 1500VDC Solar PV Cable



Solar PV Cable #10 AWG TUV CE Approved 1500VDC XLPO Double Jacketed Copper 6mm2



Description:



Solar Energy cable - Solar Panel Cable - Photovoltaic Cable, PV cable is used to interconnect solar panel arrays. They're suitable for internal and external installations and connect the solar cells to the inverter or the DC mains cable. Our range of PhotoVoltaic cable can be roof mounted or buried direct in the earth. They're halogen free, flame retardant with low smoke properties ensuring the safety of the inhabitants in the event of a fire.



Cross-Section: 1x6mm2

Rated temperature: -40~90C

Rated Rating:DC:1/1.8kv AC:0.6kv

Rated Current: 41~98A

Weathering Resistance: Sun Res



Specification:



TYPE Cross section Wire struct Conductor diameter Outer diameter Conductor resistance Rated voltage Rated current
mm2 No.OD (mm) mm mm Ω/Km V AC/DC A
1X2.5mm2 2.5 48XΦ0.285 2 5.2 8.06 1000/1800 30
1X4.0mm2 4 56XΦ0.285 2.6 5.9 5.09 1000/1800 50
1X6.0mm2 6 84XΦ0.285 3.3 6.6 3.39 1000/1800 70
1X10mm2 10 80XΦ0.40 4.4 8.3 2.12 1000/1800 95
2X2.5mm2 2.5 48XΦ0.25 2 6.2*9.90 8.06 1000/1800 30
2X4.0mm2 4 56XΦ0.30 2.6 6.9*11.30 4.97 1000/1800 50
2X6.0mm2 6 81XΦ0.30 3.3 7.1*14.50 3.52 1000/1800 70



Advantage:



· Dual wall insulation.Electron beam cross-linked

· Excellent resistance to U.V,oil,greases,oxygen and ozone

· Excellent resistance to abrasion

· Halogen free, flame retardant,low toxicity

· Excellent flexibility and stripping performance

· High Voltage and Current carring capacity

· TUV approved



Packing:



Standard Export package:

200m/roll,1000m/roll on the pallet or wooden drum



Delivery:



Within 3-10 working Days once Order Confirmed

Port: Ningbo, or other ports as per your requireents.
Sea freight:FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency

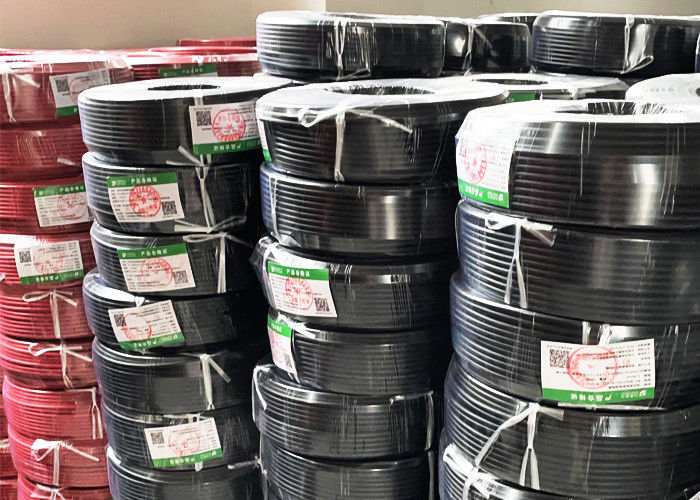

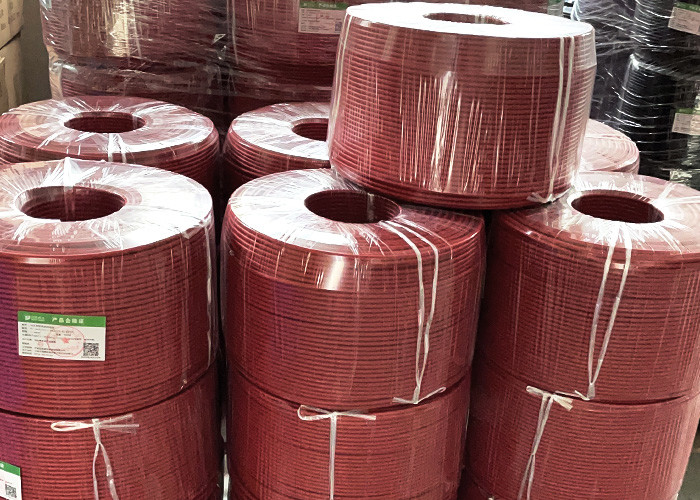

Photo of DC solar cable 6mm2

1KV #10 AWG TUV CE 1500VDC Solar PV Cable 0
