ISO Crimp Connection 2.5mm2 Heat Resistant Solar Panel Connectors PV Connectors IP68 Waterproof
ISO Crimp Connection 2.5mm2 Heat Resistant Solar Panel Connectors PV Connectors IP68 Waterproof

ISO Crimp Connection 2.5mm2 Heat Resistant Solar Panel Connectors PV Connectors IP68 Waterproof

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: PV004

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: 100sets/polybag 500sets/carton 39x39x22cm

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 5000pairs per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

IP68 Solar Panel Connectors

,

2.5mm2 Solar Panel Connectors

,

ISO Solar Panel Connectors

Product Name:
Solar Connector For Solar Panel
Color:
Black
Gender:
Female And Male
Protection Degree:
IP67
Rated Current::
30A
Contact Resistance:
≤5mΩ
Product Name:
Solar Connector For Solar Panel
Color:
Black
Gender:
Female And Male
Protection Degree:
IP67
Rated Current::
30A
Contact Resistance:
≤5mΩ
Description
ISO Crimp Connection 2.5mm2 Heat Resistant Solar Panel Connectors PV Connectors IP68 Waterproof
ISO Crimp Connection 2.5mm² IP68 Solar Panel Connectors
PPO 30A IP67 waterproof heat resistant solar panel mount connector
Connector Specifications
Product Name Solar Connector for panel
Rated Current 30A(2.5~6mm²)
Rated Voltage 1000V DC
Test Voltage 6000V(50HZ, 1min)
Overvoltage category/Pollution degree CAT III/2
Contact resistance of plug connectors 1 mΩ
Contact material Copper, Ag plated
Insulation material PC
Degree of protection IP20/IP67
Flame class UL94-V0
Safety class II
Suitable cable 2.5-6mm²
Insertion force/Withdrawal force ≤50N/ ≥50N
Connecting system Crimp connection
Temperature range -40ºC~+125ºC
Packing unit 1000pcs
Minimum order quantity 1000pcs
Weight per Piece (excluding packing) 25g
Custom tariff number 8536909000
Country of origin China
Key Features
  • Contact resistance: <5mΩ
  • Waterproof grade: IP65
  • Temperature range: -40ºC~+85ºC
  • Cable standard: 2.5/4/6mm²
  • Flame retardant grade: UL94-V0
  • Insulation material: PC
  • Composite contact material: Copper, silver plating
  • T-branch connector (TUV / CE approval)
Assembly Instructions
  • Use only specified parts and tools for guaranteed safety and compliance
  • Isolate PV connectors from power supply during assembly/disassembly
  • End product must provide protection from electric shock
  • Do not unplug under load - switch off DC/AC converter first
  • Protect disconnected connectors with sealing caps
  • Plugged parts are watertight IP67
Product Advantages
  • Simple, quick, safe and effective field assembly
  • Innovative design with independent intellectual property rights
  • High mechanical endurance
  • High current and voltage carrying: 30A, 1000VDC
  • Low transition resistance
  • Innovative sealed, waterproof, dust resistance design: IP68
  • Excellent plastic material, UL 94-V0, wide temperature range (-40°C to 90°C)
  • Weather and UV resistant for long-time outdoor application
  • TUV approved
Frequently Asked Questions
When can I get the quotation?
Within 24 hours of getting the inquiry. For urgent requests, please call us with complete specifications.
How long about the delivery?
Usually within 3-4 working days after payment, depending on quantity.
What's your payment terms?
We accept T/T (bank transfer), L/C.
Do you accept the customized order?
Yes, we do.
Do you offer OEM & ODM?
Yes. OEM & ODM are available.

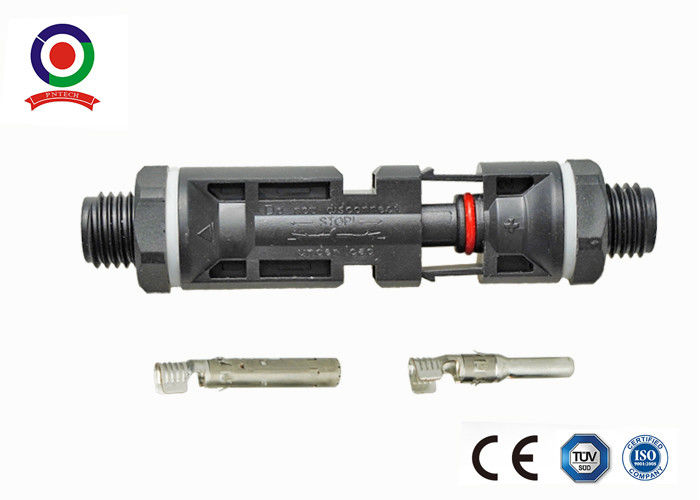

Product Images
ISO Crimp Connection 2.5mm2 Heat Resistant Solar Panel Connectors PV Connectors IP68 Waterproof 0 ISO Crimp Connection 2.5mm2 Heat Resistant Solar Panel Connectors PV Connectors IP68 Waterproof 1
