4mm2 Twin Core Solar Cable 100m Roll Tinned Copper XLPO

Name: 4mm2 Twin Core Solar Cable 100m Roll Tinned Copper XLPO
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV1-F 2x4mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/CQC/ISO9001

Model Number: PV1-F 2x4mm2

Payment & Shipping Terms

Minimum Order Quantity: 100m

Price: Negotiation

Packaging Details: 100m/roll, two rolls per carton, Carton size: 42*42*22cm Also pack according to customer's requirements

Delivery Time: 3-15days

Payment Terms: L/C,T/T

Supply Ability: 70000 Meters per Day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            4mm2 Solar PV Cable, TUV Solar PV Cable, XLPE Insulation Solar PV Cable


Product Name:	4mm Twin Core Solar Power Cable	Sheath Material:	XLPO
Conductor:	Tinned Copper	Packing:	100m/roll
Resistance::	5.09 Ω/km (MAX. At 20℃)	Cable OD:	12.5 / 6.0mm
Color:	Black

Product Name:	4mm Twin Core Solar Power Cable
Sheath Material:	XLPO
Conductor:	Tinned Copper
Packing:	100m/roll
Resistance::	5.09 Ω/km (MAX. At 20℃)
Cable OD:	12.5 / 6.0mm
Color:	Black

Description

4mm2 Twin Core Solar Cable 100m Roll Tinned Copper XLPO

TUV Halogen Free XLPE Insulation 4mm² Solar PV Cable

Product Description

TUV EN50618 4mm² XLPE Electrical Solar PV Twin Core Power Cable

Standards

DIN EN 50618
Fire-resistance performance: IEC 60332-1
Low smoke emission: EN/IEC 61034-2
Halogen free according to EN 50525-1, Annex B
Low corrosivity of gases according to EN 50267-2-2, IEC 60754-2

Key Features

Dual wall insulation. Electron beam cross-linked
Excellent resistance to UV, oil, greases, oxygen and ozone
Excellent resistance to abrasion
Halogen free, flame retardant, low toxicity
Excellent flexibility and stripping performance
High current carrying capacity
TUV approved

Technical Specifications

Construction	Conductor Construction	Insulation Thickness	Sheath Thickness	Outer ø	Resistance Max.	Current Carrying Capacity	Approx Weight
2×1.5	30/0.25	0.7	0.8	9.5±0.2	13.3	30	7.2
2×2.5	50/0.25	0.7	0.8	11±0.2	7.98	41	9.4
2×4.0	56/0.3	0.7	0.8	12.5±0.2	4.75	55	14.2
2×6.0	84/0.30	0.8	0.9	14.5±0.2	3.39	70	20
2×10.0	142/0.30	0.9	1.1	17.6±0.2	1.95	98	29
2×16.0	228/0.30	1.1	1.1	19.8±0.2	1.24	132	43

Application

These cables are designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions.

Product Features

Electron beam cross-linked materials do not melt or flow, even at high temperature, high resistance against heat, cold, abrasion, UV resistant, ozone and hydrolyses.
These cables provide the means to interconnect between photovoltaic (PV) panels and from panels to the inverter.
They operate at DC voltage and provide long life in exposed conditions.

Detailed Specifications

Name	PV Cable
Product description	Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
Product features	Low smoke without halogen, good cold, ultraviolet, ozone-resistant and weather-resistant. Flame retardant, cutting resistance and penetration resistance. Cable protection level Ⅱ level.
Electrical	The DC resistance: the finished cable at 20℃ conductive wire core DC resistance is not greater than 5.09 Ω/km The insulation resistance: the finished insulation resistance of cable at 20℃ should not less than 10¹⁴ Ω.cm, finished cable insulation resistance at 90℃ is not less than 10¹¹ Ω.cm The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 10⁹ Ω
Cable structure	Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm² PV1-F Insulation: > 0.5mm thick with low smoke and halogen material Sheath: low smoke and halogen free material thickness > 0.5mm
Detailed parameters	Ambient temperature: -40℃ ~ +90℃ The highest temperature of conductor: 120℃ (allow 5s in short circuit temperature 200℃) Limited voltage: AC0.6/1kv DC1.8kv

Frequently Asked Questions

When can I get the quotation?

Within 24 hours of getting the inquiry. If you are very urgent to get the price, please call us to give complete specifications about the cable. Price will be calculated soon.

How long about the delivery?

Usually within 3-4 working days after payment, mainly according to the quantity.

What's your payment terms?

We accept T/T (bank transfer), L/C

Do you accept the customized order?

Yes, we do.

Do you offer OEM & ODM?

Yes. OEM & ODM are available.

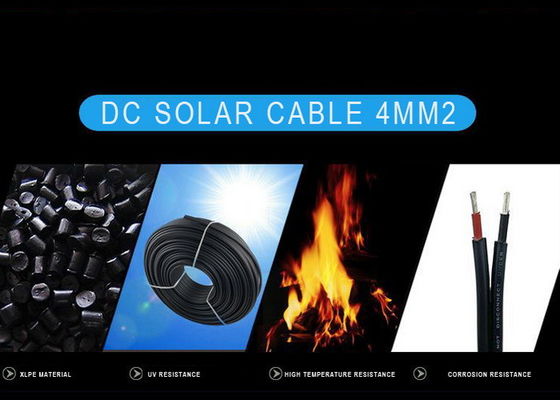

Product Image
