UV Resistance PPO DC 1500V 10mm2 Solar Pv Connectors
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||Solar Connector||Gender||Male&Female|
|Application||Solar Energy System||Contact Resistance||≤5mΩ|
10mm2 Solar Pv Connectors,
PPO Solar Pv Connectors,
1500V Solar Panel Cable Connectors
PPO Material Simple Operation 1500VDC 10mm2 solar cable Pv Connector
1. Multiple plugging and unplugging cycles.
2. Highly robustness, UV-Resistance.
3. Connector adopts insertion of reed with inner-knob type.
4. Auto-lock equipment for male and female points enable connection easier and reliable.
5. Popular appearance suit most of field installation.
6. Simple on-site operation.
7. Fit for PV cables with different insulation diameters.
8. High current carrying capacity
|voltage rating||≤DC 1500V|
|pollution degree||CAT III/2|
|shell material||resistance material,PP0|
|connecting system||cromp connection|
|contact resistance of plug and connectors||1MΩ|
|testing voltage||DC 6000V(50Hz,1min)|
|contact material||copper, Ag plated|
|insertion force/withdrawal force||≤50N/≥50N|
|inner material||copper tin plating|
During self assembly ,parts and tools other those stated are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled
The end product must provided protection from electric shock
Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted
Disconnected connectors should be protected from dirt and water with sealing caps.
Plugged parts are watertight IP67
• Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

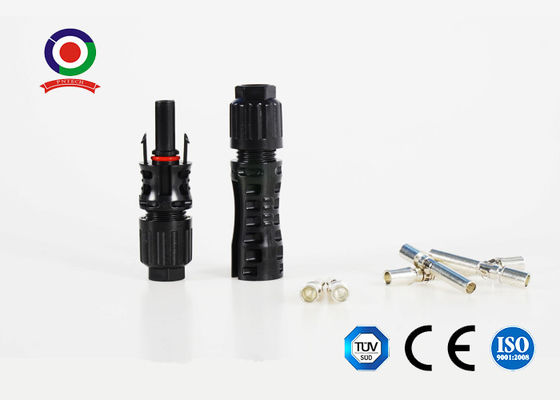

Picture of 1500VDC 10mm2 solar connector
