PV Solar Panel Extensions Cable with Solar Male and Female Connector
|Product Name||4mm2 Solar Panel Cable Extension||Length||3m|
|Rated Voltage||1000VDC||Rated Current||30A|
|Contact Resistance||≤5mΩ||Color||Black/ Red|
30A Solar Extension Cable,
4mm2 Solar Extension Cable,
IP67 Solar Panel Extension Cable
Flexible Connection 30A Rated Current 3m 4mm2 Extension Solar Cable
1.Dual wall insulation.Electron beam cross-linked
2.Excellent resistance to U.V,oil,greases,oxygen and ozone
3.Excellent resistance to abrasion
4.Halogen free, flame retardant,low toxicity
5.Excellent flexibility and stripping performance
6.High current carring capacity
56 Strands of 0.285mm nom. Tinned Annealed Copper , drawn
from Class 110A Copper to AS1574
Max D.C. resistance at 20C : 5.1 ohms / km
Black XLPE type
Nominal Diameter : 4.6mm
Nominal Wall Thickness : 1.0mm
Minimum at any point : 0.8mm
Black XLPE type
Nominal Diameter : 5.9mm
Nominal Wall Thickness : 0.9mm
Talc Barrier Between Insulation And Oversheath
|mm²||No.x ø (mm)||mm||Ω /km||mm||VAC/DC||A||Kg/km|
|H1Z2Z2-K 1*1.5 mm²||1.5||30x ø 0.25||1.6||13.5||4.8||1000/1800||30||35|
|H1Z2Z2-K 1*2.5 mm²||2.5||36x ø 0.285||2.0||8.21||5.0||1000/1800||41||50|
|H1Z2Z2-K 1*4.0 mm²||4.0||56x ø 0.285||2.6||5.09||5.9||1000/1800||55||70|
|H1Z2Z2-K 1*6.0 mm²||6.0||84x ø 0.285||3.3||3.39||6.6||1000/1800||70||95|
1. Connector adopts touch of reed with inne-knob type.
2. Auto-lock enable connection more easy and reliable.
3. Popular figure suit most of field installation.
4. Quickly to connector.
5. Water proof and prevent dust.
6. Long life.
|Rated current:||22A(2.5mm2) , 30A(4mm2,6mm2)|
|Contact material:||Silver plated copper|
|Contact resistance of plug connectors:||≤5mΩ|
|Locking system:||Snap in|
|Rated voltage||TUV 1000V DC|
|Suitable cable cross sections||2.5mm2 ~ 10.0mm2 / 14AWG ~ 8AWG|
|Test voltage||DC 8KV 1min|
|Protection class||Class II|
|Terminal Material||Tinned copper|
|Contact resistance||≤ 5mΩ|
|IP rating||IP67(IEC 60529)|
|Pull-out force||≥ 50N|
|Insertion Force||≤ 50N|
|Test temperature||-40ºC~ +85ºC|
|Flame Class||UL94V - 0|
During self assembly ,parts and tools other those stated are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled
The end product must provided protection from electric shock
Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted
Disconnected connectors should be protected from dirt and water with sealing caps.
Plugged parts are watertight IP67
• Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV

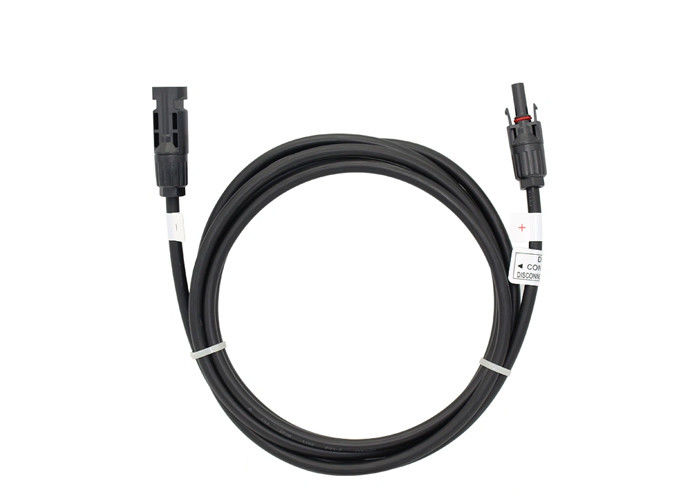

Picture of 4mm2 Solar Extension Cable
