Power Station Double XLPE 1x6mm2 DC Solar Cable

China Power Station Double XLPE 1x6mm2 DC Solar Cable supplier
Power Station Double XLPE 1x6mm2 DC Solar Cable supplier Power Station Double XLPE 1x6mm2 DC Solar Cable supplier

Large Image :  Power Station Double XLPE 1x6mm2 DC Solar Cable

Product Details:

Place of Origin: China
Brand Name: Pntech
Certification: TUV/CE/ISO9001
Model Number: H1Z2Z2-K 1x6mm2

Payment & Shipping Terms:

Minimum Order Quantity: 100m / roll
Price: Negotiation
Packaging Details: 100m per roll 500m per carton size 42x42x22cm
Delivery Time: 3-7days
Payment Terms: L/C, T/T
Supply Ability: 70000m per day
Contact Now
Detailed Product Description
Product Name: 6mm DC Solar Cable Voltage: 1500VDC
Cable OD: 6.6mm Structure: 78/0.285mm
Color: Black / Red Packing: 100/200m Per Roll
High Light:

1x6mm2 DC Solar Cable

,

Double XLPE DC Solar Cable


Power Station Double XLPE TUV EN50618 H1Z2Z2-K 1x6mm DC solar cable

Certificate

EN50618:2016 by TUV

Packing

Packaging: 6mm PV cable, 100 meters/roll, 100rolls per pallet;

200 meters/roll, 50 rolls per pallet.

20 pallets in one 20FT container. Other type can be customized



Item No. Product Model Rated Conductor cross Strand design Conductor Outer-Ømm Sheath
Name Voltage section mm 2 Number x Ø mm resistance Color
        Ω / km 20°C
H1Z2Z2-K 1x6mm PV Cable H1Z2Z2-K 1500VDC 1X6,0 78/0.285 3.39 6.6±0.1mm Black
H1Z2Z2-K 1x6mm PV Cable H1Z2Z2-K 1500VDC 1X6.0 78/0.285 3.39 6.6±0.1mm Red

Application

Halogen free cross-linked polyolefin double layers photovoltaic cables for use at the photovoltaic power systems. This cable can match with most PV-com¬ponents like PV-junction boxes and PV-connectors, which have a rated voltage of 1500 V DC.



Name PV Cable
The product description Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
Product features Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F
25, 16 and 10, 6, 4, 2 mm ^ 2 PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
Detailed parameters Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.


(We also produce single core of 2.5mm2, 4mm2, 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

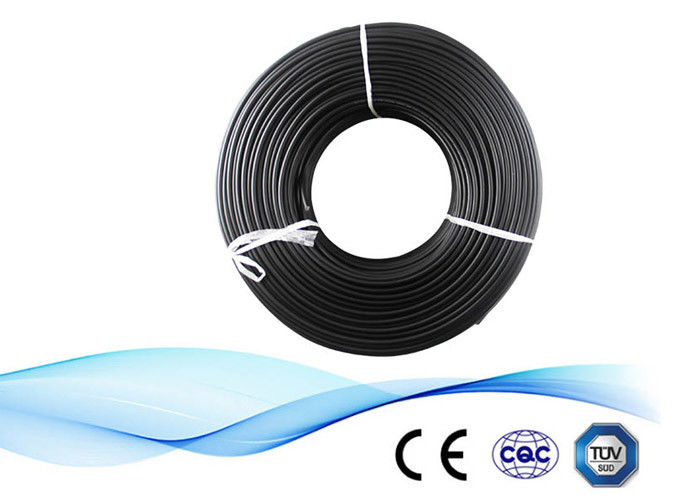

Pictures of 6mm DC Solar Cable

Power Station Double XLPE 1x6mm2 DC Solar Cable 0
