Double Insulated Flame Retardant 1500V DC Solar Cable
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||4mm DC Solar Cable||Conductor||56/0.285|
|Color||Black Or Red||Conductor Material||Copper|
|Application||Power Station||Keywords||DC Solar Cable|
1500V DC Solar Cable,
Flame Retardant DC Solar Cable
Double Insulated flame retardant materials Dc Solar Cable For Solar Pv system
Halogen free cross-linked polyolefin double layers photovoltaic cables for use at the photovoltaic power systems. This cable can match with most PV-com¬ponents like PV-junction boxes and PV-connectors, which have a rated voltage of 1500 V DC.
|Type||Cross Section||Strand Design||Conductor Diameter||Conductor Resistance||Outer Diameter||Rated Voltage||Rated Current|
|H1Z2Z2-K 1x2.5mm2||2.5mm2||36x φ0.285mm||2.0mm||8.21 Ω/km||5.4mm||1500VDC||50A|
|H1Z2Z2-K 1x4mm2||4mm2||56x φ0.285mm||2.6mm||5.09 Ω/km||5.9mm||1500VDC||70A|
|H1Z2Z2-K 1x6mm2||6mm2||78x φ0.285mm||3.3mm||3.52 Ω/km||6.7mm||1500VDC||95A|
|H1Z2Z2-K 1x10mm2||10mm2||80x φ0.4mm||4.4mm||1.95 Ω/km||7.4mm||1500VDC||98A|
|H1Z2Z2-K 1x16mm2||16mm2||120x φ0.4mm||5.2mm||1.24 Ω/km||9.2mm||1500VDC||132A
Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor. Resistance to sunlight, anti-aging, Using the low smoke halogen-free flame retardant materials, higher grade, more safety.
|The product description||Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.|
|Product features||Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.|
|Flame retardant, cutting resistance and penetration resistance.|
|Cable protection level Ⅱ level.|
|With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.|
|It conforms to ROHS, and the insulation resistance is small after immersion.|
|Electrical||1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km|
|2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm|
|3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.|
|Cable structure||Conductor: tinned copper wire 2.5, 4,6,10,16 mm2 PV1 - F|
|25,16 and 10, 6,4,2.5 mm2 PV wire|
|Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.|
|Sheath: low smoke and halogen free material thickness > 0.5mm.|
|Detailed parameters||Ambient temperature: - 40 ℃ ~ + 90 ℃|
|The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)|
|Limited voltage: AC0.6/1kv dc1.8kv.|
(We also produce single core of 2.5mm2, 6mm2, 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

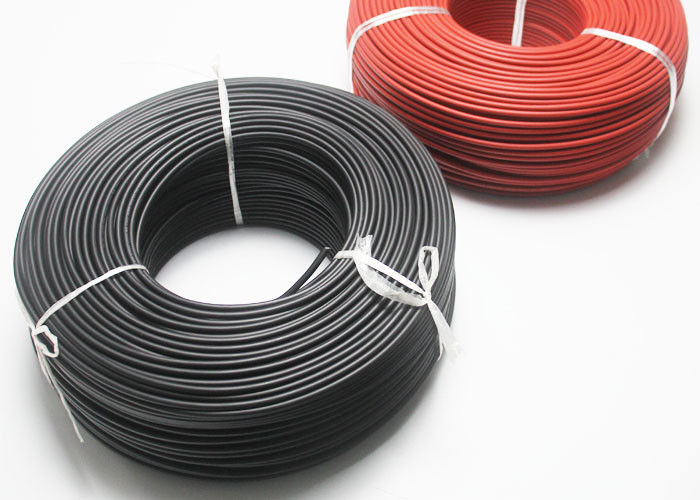

Picture of 4mm DC solar cable
