Product Name: |
Solar System Cable 4mm2 |
Core: |
1 Core |
Conductor Material: |
Stranded Tinned Copper |
Cable OD: |
5.9mm |
Structure: |
56/0.285mm |
Color: |
Black / Red |
Product Name: |
Solar System Cable 4mm2 |
Core: |
1 Core |
Conductor Material: |
Stranded Tinned Copper |
Cable OD: |
5.9mm |
Structure: |
56/0.285mm |
Color: |
Black / Red |
High quality TUV single core 4mm XLPE 12AWG PV DC solar cable for solar system
PV1-F tinned copper DC solar power cable 4mm2
Solar cable made of electron-beam cross-linked insulation and coating; high resistance against heat , cold, oil, abrasion, ozone, UV and weather; with improved reaction in case of fire . low smoke, halogen free , flame free , flame retardant; flexible, easy to strip, very low space requirement, extremely, extremely mechanically robust, very long lifetime.
| Type | Cross Section | Strand Design | Conductor Diameter | Conductor Resistance | Outer Diameter | Rated Voltage | Rated Current |
| H1Z2Z2-K 1x2.5mm2 | 2.5mm2 | 36x φ0.285mm | 2.0mm | 8.21 Ω/km | 5.4mm | 1500VDC | 50A |
| H1Z2Z2-K 1x4mm2 | 4mm2 | 56x φ0.285mm | 2.6mm | 5.09 Ω/km | 5.9mm | 1500VDC | 70A |
| H1Z2Z2-K 1x6mm2 | 6mm2 | 78x φ0.285mm | 3.3mm | 3.52 Ω/km | 6.7mm | 1500VDC | 95A |
| H1Z2Z2-K 1x10mm2 | 10mm2 | 80x φ0.4mm | 4.4mm | 1.95 Ω/km | 7.4mm | 1500VDC | 98A |
| H1Z2Z2-K 1x16mm2 | 16mm2 | 120x φ0.4mm | 5.2mm | 1.24 Ω/km | 9.2mm | 1500VDC | 132A |
Fire Resistant Cables Description:
A. Application:Double insulation,electron-beam cross linked cables for photovotaic power station.
Construction:Tinned copper,according toVDE0295/IEC60228,Class5
B. Material Properties/Standards:
1. Fire-resistant performance:IEC60332-1.
2. Smoke emission:IEC61034;EN50268-2
3. Low fire load:DIN51900
4. Approvals:TUV2PfG 1169/08.2007 PV1-F.
5. Application Standards:UNE211 23;UNE20.460-5-52, UTE C 32-502
Application :
Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .
| Name | PV Cable |
| The product description | Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries. |
| Product features | Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant. |
| Flame retardant, cutting resistance and penetration resistance. | |
| Cable protection level Ⅱ level. | |
| With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus. | |
| It conforms to ROHS, and the insulation resistance is small after immersion. | |
| Electrical | 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km |
| 2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm | |
| 3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω. | |
| Cable structure | Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F |
| 25, 16 and 10, 6, 4, 2 mm ^ 2 PV wire | |
| Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer. | |
| Sheath: low smoke and halogen free material thickness > 0.5mm. | |
| Detailed parameters | Ambient temperature: - 40 ℃ ~ + 90 ℃ |
| The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃) | |
| Limited voltage: AC0.6/1kv dc1.8kv. |
(We also produce single core of 2.5mm2, 6mm2, 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

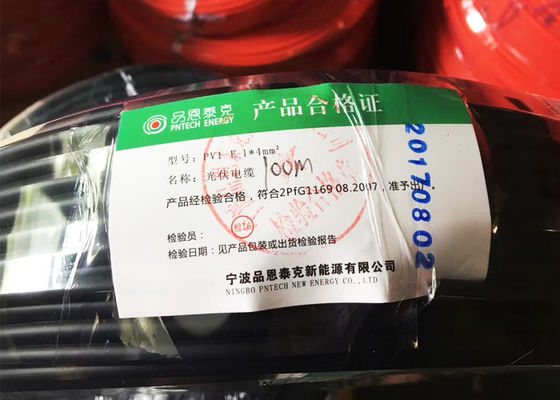

Pictures of 4mm DC Solar Cable
