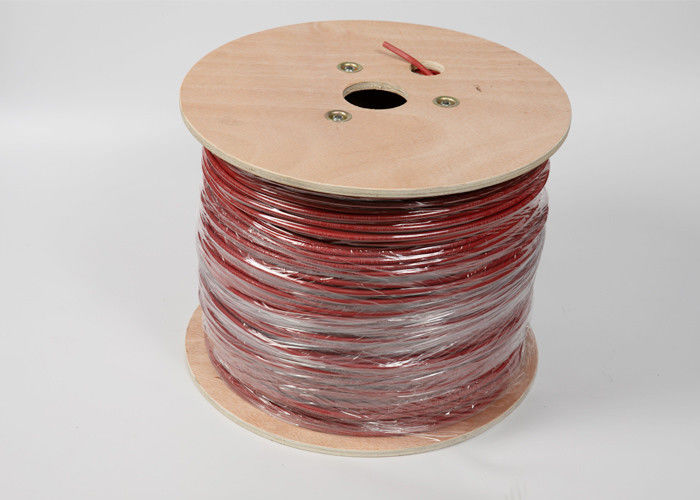

4mm Solar Panel Cable 5.5mm OD XLPE Jacket 250m Roll

Name: 4mm Solar Panel Cable 5.5mm OD XLPE Jacket 250m Roll
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K 1x4mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x4mm2

Payment & Shipping Terms

Minimum Order Quantity: 250m / roll

Price: Negotiation

Packaging Details: 100m per roll , 250m per roll , 500m per roll

Delivery Time: 3-7days

Payment Terms: L/C,T/T

Supply Ability: 70000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    single core electrical cable, tuv solar cable


Product Name:	Solar Panel Cable 4mm	Keyword:	Solar Panel Cable
Jacket Material:	XLPE	Conductor Material:	Stranded Tinned Copper
Cable OD:	5.5mm	Resistance:	≤5.09（Ω/KM）
Color:	Black / Red	Packing:	250m Per Roll

Product Name:	Solar Panel Cable 4mm
Keyword:	Solar Panel Cable
Jacket Material:	XLPE
Conductor Material:	Stranded Tinned Copper
Cable OD:	5.5mm
Resistance:	≤5.09（Ω/KM）
Color:	Black / Red
Packing:	250m Per Roll

Description

4mm Solar Panel Cable 5.5mm OD XLPE Jacket 250m Roll

TUV Ozone Resistant Solar Panel Cable 4mm 5.5mm OD XLPE Jacket Material

TUV Ozone Resistant solar panel cable with 4mm cross-section featuring excellent abrasion resistance and XLPE jacket material.

Product Advantages

The electrical and dimensional properties are rigorously tested by the Technical and Quality Assurance department at JiangNan Cables laboratory. Performance parameters including conductor resistance, construction quality, dimensional consistency, and other specifications are verified to published standards.

Type	Cross Section	Strand Design	Conductor Diameter	Conductor Resistance	Outer Diameter	Rated Voltage	Rated Current
H1Z2Z2-K 1x2.5mm2	2.5mm2	36x φ0.285mm	2.0mm	8.21 Ω/km	5.0mm	1500VDC	50A
H1Z2Z2-K 1x4mm2	4mm2	56x φ0.285mm	2.6mm	5.09 Ω/km	5.5mm	1500VDC	70A
H1Z2Z2-K 1x6mm2	6mm2	78x φ0.285mm	3.3mm	3.52 Ω/km	6.1mm	1500VDC	95A
H1Z2Z2-K 1x10mm2	10mm2	80x φ0.4mm	4.4mm	1.95 Ω/km	7.2mm	1500VDC	98A
H1Z2Z2-K 1x16mm2	16mm2	120x φ0.4mm	5.2mm	1.24 Ω/km	8.2mm	1500VDC	132A

Applications

Ideal for solar panel power generation systems and related component wiring connections, particularly suited for outdoor installations. Features sunlight resistance, anti-aging properties, and uses low-smoke halogen-free flame retardant materials for enhanced safety.

Key Features

Dual wall insulation with electron beam cross-linking
Excellent resistance to UV, oil, greases, oxygen, and ozone
Superior abrasion resistance
Halogen-free, flame retardant, and low toxicity
Excellent flexibility and stripping performance
High current carrying capacity
TUV approved certification

Technical Specifications

Product Description: Widely used in indoor and outdoor solar installations, electrical setups, industrial, agricultural, and explosion-prone areas.

Product Features: Low smoke, halogen-free, excellent cold resistance, UV resistance, ozone resistance, and weather resistance. Flame retardant with cutting and penetration resistance. Cable protection level II.

Electrical Properties:

DC resistance: ≤5.09 Ω/km at 20°C
Insulation resistance: ≥1014 Ω·cm at 20°C, ≥1011 Ω·cm at 90°C
Sheath surface resistance: ≥109 Ω

Cable Structure:

Conductor: Tinned copper wire (2.5-16mm²)
Insulation: >0.5mm thick low smoke halogen-free material
Sheath: Low smoke halogen-free material >0.5mm thick

Operating Parameters:

Ambient temperature: -40°C to +90°C
Maximum conductor temperature: 120°C (200°C for 5s in short circuit)
Voltage limit: AC 0.6/1kV, DC 1.8kV

Note: We also produce single core cables in 2.5mm², 6mm², 10mm², and 16mm² sizes, as well as dual core options. Please contact us for specific requirements.
