Product Details
Place of Origin: China
Brand Name: Pntech
Certification: TUV/CE/ISO9001
Model Number: PV1-F 2x6mm2
Payment & Shipping Terms
Minimum Order Quantity: 100m
Price: Negotiation
Packaging Details: 100m/roll
Delivery Time: 3-10days
Payment Terms: L/C, T/T
Supply Ability: 50000m per day
Item Name: |
2x4mm2 DC Solar Cable |
Keywords: |
Solar Cable 4mm |
Conductor: |
Tinned Copper |
Rate Voltage: |
1500V DC |
Core: |
2 Core |
Color: |
Black |
Item Name: |
2x4mm2 DC Solar Cable |
Keywords: |
Solar Cable 4mm |
Conductor: |
Tinned Copper |
Rate Voltage: |
1500V DC |
Core: |
2 Core |
Color: |
Black |
Double Insulated 2 Core Solar Cable 4mm TUV approved Fire Resistant Performance
Cables Description:
Cable made of electron-beam cross-linked insulation and coating; high resistance against heat , cold, oil, abrasion, ozone, UV and weather; with improved reaction in case of fire . low smoke, halogen free , flame free , flame retardant; flexible, easy to strip, very low space requirement, extremely, extremely mechanically robust, very long lifetime.
| TYPE:TWIN CORE SOALR CABLE | PART NO:PV1-F 2X4.0mm2 | ||
| CONSTRUCTION: | |||
| CONDUCTOR | MATERIAL | Tinned copper | |
| CONSTRUCTION | 56/0.3mm | ||
| RESISTANCE | 5.09 Ω/km (MAX. at 20℃) | ||
| INSULATION | MATERIAL | XLPE | |
| DIAMETER | 2.0±0.1 mm | ||
| THICKNESS | 0.6±0.10 mm | ||
| COLOUR | Black | ||
| JACKET | MATERIAL | XLPE | |
| DIAMETER | 13 X 6mm | ||
| THICKNESS | 0.6±0.10 mm | ||
| COLOUR | Black | ||
| Electrical Data | Rated Rating | AC 0.6/1KV DC1800V | |
| Rated temperature | -40 ～＋90,Dry and Wet | ||
| 60℃ rated current | 70A | ||
| Test voltage | 3.0KV AC | ||
| Weathering Resistance | Sun Res. | ||
| MARKING | TüV 2 PfG 1169 PV1-F 2×4.0mm2 TÜV SÜD approved VDE-AR-E 2283-4:2011-10 | ||
Advantage:
1. 99.9% high-purity oxygen-free copper: high quality tin-plated copper, high purity, anti-aging, high electrical conductivity, low loss, strong current carrying capacity, high corrosion resistance, and can adapt to outdoor harsh environment.
2, low eccentricity: thickness uniformity, effectively prevent the current breakdown fire, to ensure safety.
3. Double protection: The solar photovoltaic cable adopts insulation and Jacket double protection structure to extend the service life of the cable.
4, high-performance polymer materials: Insulating and jacket all use environmentally friendly low-smoke halogen-free flame-retardant cross-linked polyolefin materials, with wear-resistant, high temperature, oil, ozone, UV, high flame retardant properties.
5, strong flexibility: cable has a pressure, bending, strong toughness.
6, long service life: normal outdoor use, service life> 25 years
7, advanced equipment: The company has advanced foreign production, scientific research equipment, passed the ISO9001-2008 quality management system certification, IATF16949: 2016 quality management system certification.
| Name | PV Cable |
| The product description | Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries. |
| Product features | Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant. |
| Flame retardant, cutting resistance and penetration resistance. | |
| Cable protection level Ⅱ level. | |
| With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus. | |
| It conforms to ROHS, and the insulation resistance is small after immersion. | |
| Electrical | 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km |
| 2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm | |
| 3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω. | |
| Cable structure | Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F |
| 18, 16 and 14, 12, 10, 8, 6, 4, 2 mm ^ 2 PV wire | |
| Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer. | |
| Sheath: low smoke and halogen free material thickness > 0.5mm. | |
| Detailed parameters | Ambient temperature: - 40 ℃ ~ + 90 ℃ |
| The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃) | |
| Limited voltage: AC0.6/1kv dc1.8kv. |
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

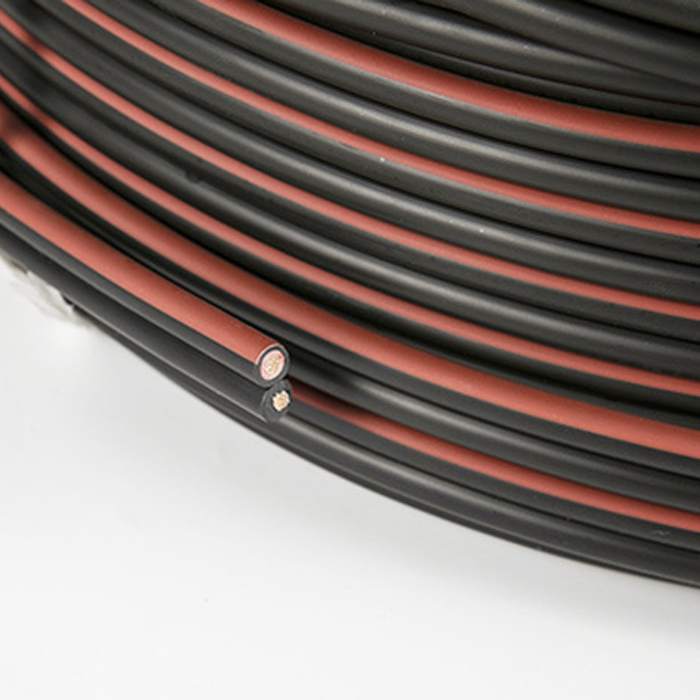

Picture of solar cable 4mm
