Product Details
Place of Origin: China
Brand Name: Pntech
Certification: TUV/CE/ISO9001
Model Number: H1Z2Z2-K 1x4mm2
Payment & Shipping Terms
Minimum Order Quantity: 100m / roll
Price: Negotiation
Packaging Details: 100m / roll 250m / roll, two rolls per carton, Carton size: 42*42*22cm Also pack according to customer's requirements
Delivery Time: 3-7days
Payment Terms: L/C, T/T
Supply Ability: 70000m per day
Product Name: |
Single Core Solar Cable 4mm2 |
Keyword: |
Solar Cable 4mm2 |
Insulation Material: |
XLPE |
Structure: |
56/0.3mm |
Conductor Material: |
Stranded Tinned Copper |
Cable OD: |
5.7mm |
Rated Voltage: |
AC Uo/U0.6~1.0KV , DC1.5KV |
Color: |
Black / Red |
Product Name: |
Single Core Solar Cable 4mm2 |
Keyword: |
Solar Cable 4mm2 |
Insulation Material: |
XLPE |
Structure: |
56/0.3mm |
Conductor Material: |
Stranded Tinned Copper |
Cable OD: |
5.7mm |
Rated Voltage: |
AC Uo/U0.6~1.0KV , DC1.5KV |
Color: |
Black / Red |
TUV CE CQC Black and Red Single Core Solar Cable 4mm2 for solar power system
Features:
Rated 90°C wet and dry
Deformation-resistant at high temperatures
Excellent moisture resistance,
Stable electrical properties over a broad temperature range
Excellent resistance to crush and compression cuts
Resistant to most oils and chemicals
UV/sunlight-resistant
Meets cold bend test at -40°C
| Name: Single-core solar cable | Conductor: Tinned copper wire |
| Executive standard: EN 50618 | Insulation: Low smoke halogen-free irradiation cross-linked polyolefin |
| Model: H1Z2Z2-K | Jacket: Low smoke halogen-free irradiation cross-linked polyolefin |
| Cable specifications:2.5/4/6/10/16/25/35mm² | Rated Voltage:1500V |
| Ambient temperature:-40~90ºC | Testing Voltage:6.5KV |
| Cable temperature:-40~120ºC | Weather resistance: UV blocking |
| Short circuit temperature:250ºC | Service life:>25 years |
| Bending radius:>4×Ø(Ø<8mm) >6×Ø(Ø≥8mm) | Color: Black, Red |
Applications
Single conductor, sunlight-resistant, photovoltaic wire rated 90°C wet or 105°C dry 2000V for interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Section 690.31(A) and other applicable parts of the National Electrical Code (NEC), NFPA 70
Options:
Colored phase ID stripes available on request
Multi-plexing available on request
| Product Name | TUV Standard Solar Cable |
| Model NO. | H1Z2Z2-K 1x 4mm2 |
| Voltage | High Voltage Cable |
| Insulation Material | XLPE |
| Material Shape | Round Wire |
| Certification | ROSH, CE, TUV |
| Standards | TUV EN50618 |
| Cores | 1 Core |
| Transport Package | Iron-Wooden Drum, Iron Drum |
| Application | Construction, Underground, Industrial, Power Station |
| Sheath Material | XLPE |
| Wire Core Material | Tinned Copper |
| Cross Section | 4mm2 |
| Name | PV Cable |
| The product description | Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries. |
| Product features | Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant. |
| Flame retardant, cutting resistance and penetration resistance. | |
| Cable protection level Ⅱ level. | |
| With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus. | |
| It conforms to ROHS, and the insulation resistance is small after immersion. | |
| Electrical | 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km |
| 2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm | |
| 3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω. | |
| Cable structure | Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F |
| 25, 16 and 10, 6, 4, 2 mm ^ 2 PV wire | |
| Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer. | |
| Sheath: low smoke and halogen free material thickness > 0.5mm. | |
| Detailed parameters | Ambient temperature: - 40 ℃ ~ + 90 ℃ |
| The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃) | |
| Limited voltage: AC0.6/1kv dc1.8kv. |
(We also produce single core of 2.5mm2, 6mm2, 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

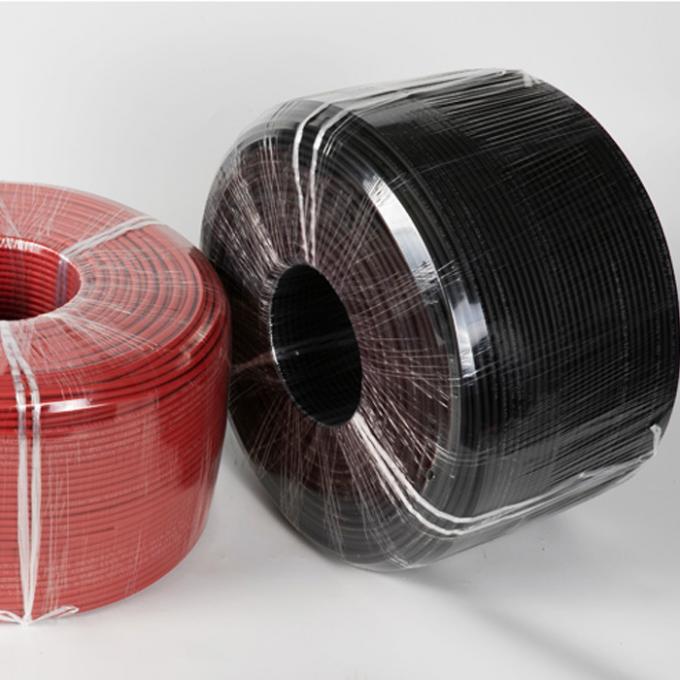

Pictures of Solar Cable 4mm2
