4mm Twin Core Solar Cable 100m Roll XLPE Sheath 0.8mm Thickness

Name: 4mm Twin Core Solar Cable 100m Roll XLPE Sheath 0.8mm Thickness
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV1-F 2x4mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/CQC/ISO9001

Model Number: PV1-F 2x4mm2

Payment & Shipping Terms

Minimum Order Quantity: 100m

Price: Negotiation

Packaging Details: 100m/roll, two rolls per carton, Carton size: 42*42*22cm Also pack according to customer's requirements

Delivery Time: 3-15days

Payment Terms: L/C,T/T

Supply Ability: 70000 Meters per Day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    2 core solar cable, twin core electrical cable


Product Name:	4mm Twin Core Cable	Sheath Material:	XLPE
Conductor:	Tinned Copper	Packing:	100m/roll
Thickness:	0.8mm	Resistance::	5.09 Ω/km (MAX. At 20℃)
Cable OD:	12.5 / 6.0mm	Color:	Black

Product Name:	4mm Twin Core Cable
Sheath Material:	XLPE
Conductor:	Tinned Copper
Packing:	100m/roll
Thickness:	0.8mm
Resistance::	5.09 Ω/km (MAX. At 20℃)
Cable OD:	12.5 / 6.0mm
Color:	Black

Description

4mm Twin Core Solar Cable 100m Roll XLPE Sheath 0.8mm Thickness

0.8mm Thickness Twin Core Electrical Cable For Photovoltaic Power System

Product Description

Flame Retardant 4mm Twin Core Cable with double XLPE insulation for Photovoltaic Power Systems.

Key Features

Dual wall insulation with electron beam cross-linking
Excellent resistance to UV, oil, greases, oxygen and ozone
Superior abrasion resistance
Halogen free, flame retardant with low toxicity
Excellent flexibility and stripping performance
High current carrying capacity
TUV approved

Technical Specifications

Construction	Conductor Construction	Insulation Thickness	Sheath Thickness	Outer ø	Resistance Max.	Current Carrying Capacity	Approx Weight
2×1.5	30/0.25	0.7 mm	0.8 mm	9.5±0.2 mm	13.3 Ω/Km	30 A	7.2 Kg/Km
2×2.5	50/0.25	0.7 mm	0.8 mm	11±0.2 mm	7.98 Ω/Km	41 A	9.4 Kg/Km
2×4.0	56/0.3	0.7 mm	0.8 mm	12.5±0.2 mm	4.75 Ω/Km	55 A	14.2 Kg/Km
2×6.0	84/0.30	0.8 mm	0.9 mm	14.5±0.2 mm	3.39 Ω/Km	70 A	20 Kg/Km
2×10.0	142/0.30	0.9 mm	1.1 mm	17.6±0.2 mm	1.95 Ω/Km	98 A	29 Kg/Km
2×16.0	228/0.30	1.1 mm	1.1 mm	19.8±0.2 mm	1.24 Ω/Km	132 A	43 Kg/Km

Application

These cables are designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions.

Standards

DIN EN 50618
Fire-resistance performance: IEC 60332-1
Low smoke emission: EN/IEC 61034-2
Halogen free according to EN 50525-1, Annex B
Low corrosivity of gases according to EN 50267-2-2, IEC 60754-2

Additional Features

Electron beam cross-linked materials do not melt or flow, even at high temperature
High resistance against heat, cold, abrasion, UV, ozone and hydrolyses
Interconnects between photovoltaic (PV) panels and from panels to the inverter
Operates at DC voltage with long life in exposed conditions

Detailed Specifications

Conductor: Tinned copper wire 2.5, 4, 6, 10, 16 mm² PV1-F
Insulation: >0.5mm thick with low smoke and halogen material
Sheath: Low smoke and halogen free material thickness >0.5mm
Ambient temperature: -40℃ ~ +90℃
Maximum conductor temperature: 120℃ (allow 5s in short circuit temperature 200℃)
Voltage rating: AC0.6/1kV DC1.8kV

Frequently Asked Questions

When can I get the quotation?

Within 24 hours of getting the inquiry. For urgent requests, please call us with complete specifications.

How long is the delivery time?

Usually within 3-4 working days after payment, depending on quantity.

What are your payment terms?

We accept T/T (bank transfer) and L/C.

Do you accept customized orders?

Yes, we do.

Do you offer OEM & ODM services?

Yes, OEM & ODM are available.

Product Image

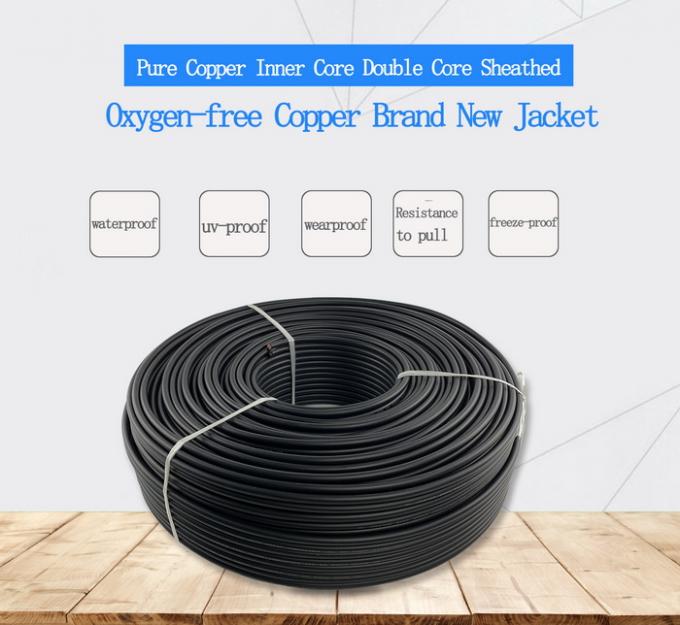

4mm² twin core solar cable for photovoltaic systems
