XLPE Solar Panel Power Cable High Electrical Conductivity Anti Aging

China XLPE Solar Panel Power Cable High Electrical Conductivity Anti Aging supplier
XLPE Solar Panel Power Cable High Electrical Conductivity Anti Aging supplier XLPE Solar Panel Power Cable High Electrical Conductivity Anti Aging supplier

Large Image :  XLPE Solar Panel Power Cable High Electrical Conductivity Anti Aging

Product Details:

Place of Origin: China
Brand Name: Pntech
Certification: ISO9001/TUV/CE
Model Number: PV1-F 1x4mm2

Payment & Shipping Terms:

Minimum Order Quantity: 250m per roll
Price: Negotiation
Packaging Details: 250m per roll , 500m per carton
Delivery Time: 3-10days
Payment Terms: L/C, T/T
Supply Ability: 70000m per day
Contact Now
Detailed Product Description
Product Name: XLPE Cable Rated Voltage: 1800V DC
Test Voltage: 6500V, 50HZ, 5Min Color: Black Or Red
Conductor: Tinned Copper Packing: 250m Per Roll



PV1-F 4mm2 Solar PV Cable / DC cable / XLPE cable TUV approved for solar system



Specificate



1. 99.9% high-purity oxygen-free copper: high quality tin-plated copper, high purity, anti-aging, high electrical conductivity, low loss, strong current carrying capacity, high corrosion resistance, and can adapt to outdoor harsh environment.

2, low eccentricity: thickness uniformity, effectively prevent the current breakdown fire, to ensure safety.

3. Double protection: The solar photovoltaic cable adopts insulation and Jacket double protection structure to extend the service life of the cable.



Type Cross Strand Conductor Conductor Outer Rated Rated Weight
section design diameter resistance diameter voltage current
mm² No.x ø (mm) mm Ω /km mm VAC/DC A Kg/km
PV-1*1.5 mm² 1.5 30x ø 0.25 1.6 13.5 4.8 1000/1800 30 35
PV-1*2.5 mm² 2.5 50x ø 0.25 2.0 8.21 5.3 1000/1800 41 50
PV-1*4.0 mm² 4.0 56x ø 0.3 2.6 5.09 6.1 1000/1800 55 70
PV-1*6.0 mm² 6.0 84x ø 0.3 3.3 3.39 7.1 1000/1800 70 95
PV-1*10.0 mm² 10.0 80x ø 0.4 4.4 1.95 8.5 1000/1800 98 155
PV-1*16 mm² 16.0 120x ø 0.4 5.2 1.24 10.2 1000/1800 132 230
PV-1*25 mm² 25.0 196x ø 0.40 7.4 0.795 12.0 1000/1800 176 341
PV-1*35 mm² 35.0 276x ø 0.40 9.00 0.565 14.0 1000/1800 218 467



Application :



Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor. Resistance to sunlight, anti-aging, Using the low smoke halogen-free flame retardant materials, higher grade, more safety.



Name PV Cable
The product description Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
Product features Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure Conductor: tinned copper wire 2.5, 4,6,10,16 mm2 PV1 - F
25,16 and 10, 6,4,2.5 mm2 PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
Detailed parameters Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.


(We also produce single core of 2.5mm2, 6mm2, 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)



FAQ:



1. When can I get the quotation?

   Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.

2. How long about the delivery?

   Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?

    We accept T/T (bank transfer), L/C

4. Do you accept the customized order?

    Yes, we do.

5. Do you offer OEM & ODM?

   Yes. OEM & ODM are available.

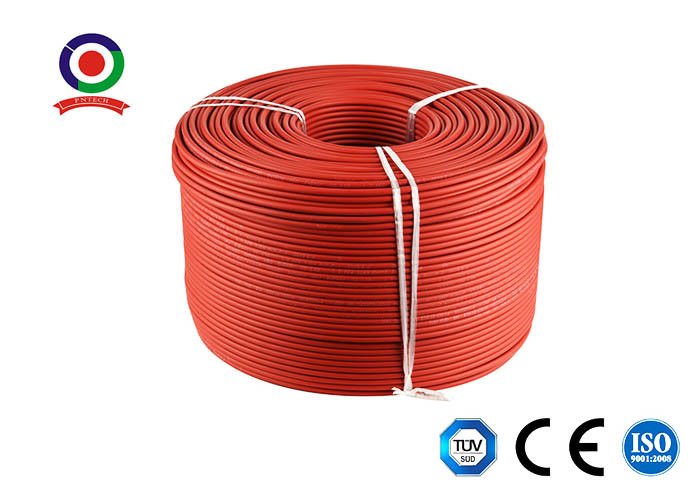

Picture of solar  PV cable 4mm2



XLPE Solar Panel Power Cable High Electrical Conductivity Anti Aging
