H1Z2Z2-K 6mm2 1000V AC PV DC Solar Cable Double Insulated XLPE Tinned Copper Material

China H1Z2Z2-K 6mm2 1000V AC PV DC Solar Cable Double Insulated XLPE Tinned Copper Material supplier
H1Z2Z2-K 6mm2 1000V AC PV DC Solar Cable Double Insulated XLPE Tinned Copper Material supplier H1Z2Z2-K 6mm2 1000V AC PV DC Solar Cable Double Insulated XLPE Tinned Copper Material supplier

Large Image :  H1Z2Z2-K 6mm2 1000V AC PV DC Solar Cable Double Insulated XLPE Tinned Copper Material

Product Details:

Place of Origin: China
Brand Name: Pntech
Certification: ISO9001/TUV/CE
Model Number: H1Z2Z2-K 1x6mm2

Payment & Shipping Terms:

Minimum Order Quantity: 200m
Price: Negotiation
Packaging Details: 200m/roll, 400m/carton
Delivery Time: 3-10days
Payment Terms: L/C, T/T
Supply Ability: 70000m per day
Contact Now
Detailed Product Description
Product Name: DC Solar Cable 6mm2 AC Voltage: 600/1000V
HS Code: 8544492100 Color: Black Or Red
Weight: 95kg/km Packing: 200m/roll


H1Z2Z2-K 6mm2 1000V AC TUV Double Insulated PV DC Solar Cable XLPE tinned copper

Specificate


Type Cross Section Strand Design Conductor Diameter Conductor Resistance Outer Diameter Rated Voltage Rated Current
H1Z2Z2-K 1x2.5mm2 2.5mm2 36x φ0.285mm 2.0mm 8.21 Ω/km 5.4mm 1500VDC 50A
H1Z2Z2-K 1x4mm2 4mm2 56x φ0.285mm 2.6mm 5.09 Ω/km 5.9mm 1500VDC 70A
H1Z2Z2-K 1x6mm2 6mm2 78x φ0.285mm 3.3mm 3.52 Ω/km 6.7mm 1500VDC 95A
H1Z2Z2-K 1x10mm2 10mm2 80x φ0.4mm 4.4mm 1.95 Ω/km 7.4mm 1500VDC 98A
H1Z2Z2-K 1x16mm2 16mm2 120x φ0.4mm 5.2mm 1.24 Ω/km 9.2mm 1500VDC 132A


Application :

Specifically designed for connecting photovoltaic system components inside and
outside of building and equipment with high mechanical requirements and extreme weather
conditions .For permanent installations.


Name PV Cable
The product description Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.

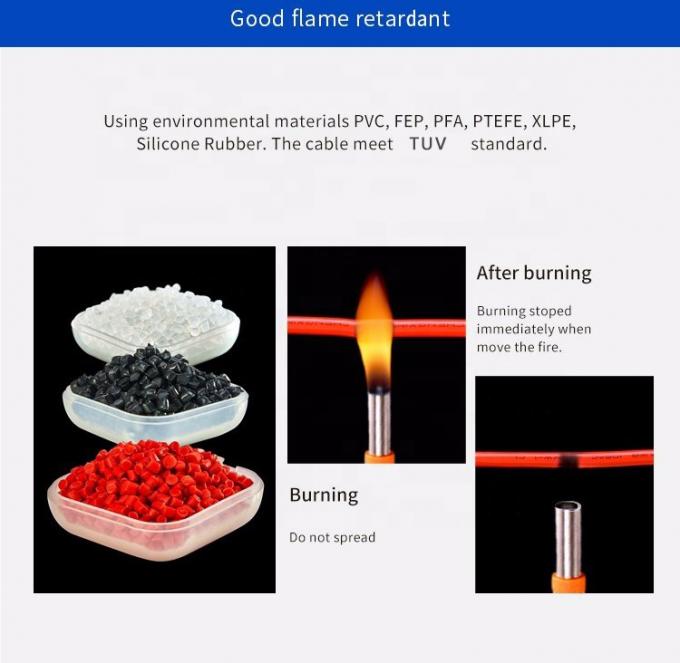

Product features Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure Conductor: tinned copper wire 2.5, 4,6,10,16 mm2 PV1 - F
25,16 and 10, 6,4,2.5 mm2 PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
Detailed parameters Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.


(We also produce single core of 2.5mm2, 6mm2, 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

The advantage of solar cable

1. 99.9% high-purity oxygen-free copper: high quality tin-plated copper, high purity, anti-aging, high electrical conductivity, low loss, strong current carrying capacity, high corrosion resistance, and can adapt to outdoor harsh environment.
2, low eccentricity: thickness uniformity, effectively prevent the current breakdown fire, to ensure safety.
3. Double protection: The solar photovoltaic cable adopts insulation and Jacket double protection structure to extend the service life of the cable.
4, high-performance polymer materials: Insulating and jacket all use environmentally friendly low-smoke halogen-free flame-retardant cross-linked polyolefin materials, with wear-resistant, high temperature, oil, ozone, UV, high flame retardant properties.
5, strong flexibility: cable has a pressure, bending, strong toughness.
6, long service life: normal outdoor use, service life> 25 years
7, advanced equipment: The company has advanced foreign production, scientific research equipment, passed the ISO9001-2000 quality management system certification, IATF16949: 2016 quality management system certification.

Picture of solar cable 6mm2

H1Z2Z2-K 6mm2 1000V AC PV DC Solar Cable Double Insulated XLPE Tinned Copper Material
