PPO T Solar Branch Connector Waterproof IP67 High Temperature Resistance


t branch connectors CE approved PPO 30A Black Female and male two to one

Description:

High temperature resistance, fire resistance, anti-aging and anti-ultraviolet performance to meet the requirements of long-term use under harsh outdoor environment conditions.
>Excellent sealing performance, waterproof and dustproof class up to IP67.
>The switch between male head and female head has self-locking function. The electrical connection is completely reliable and can be opened and closed freely.
>Has extensive applicability and can be inserted into the connector.
-1 Pair of T Type Male/Female Solar Panel Cable Connectors(one female to double male (F/M/M) and one male to double female (M/F/F)
-Compatible
-Compatible with PV cables with different insulation diameters
-It can be used in harsh environment
-With excellent aging resistance and UV endurance
-Created seal, design of dust proof
-Load capability with big current and high voltage
-Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
-Strong pulling force capability
-Resistance of extra high & low temperature and fireproof
-Lower contact resistance


Advantage:

1. low power loss
2. solarconnector for solar power system
3. allthe connection made by double fixed connection
4. withthe capacity of anti-aging and resistance to ultraviolet radiation on the outcover
5. withconvenient installation, strong commonality
6. to meet the using requirement under bad outdoor condition

Assembly Instructions

1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.
3. The end product must provide protection from electric shock.
4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.
5. Disconnected connectors should be protected from dirt and water with sealing caps.
6. Plugged parts are watertight IP67

FAQ:

1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

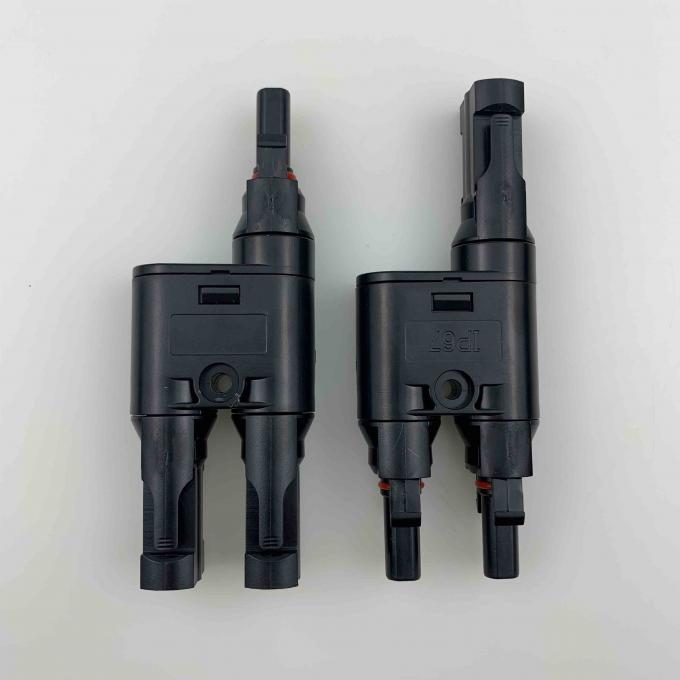

Picture of  T branch connectors
