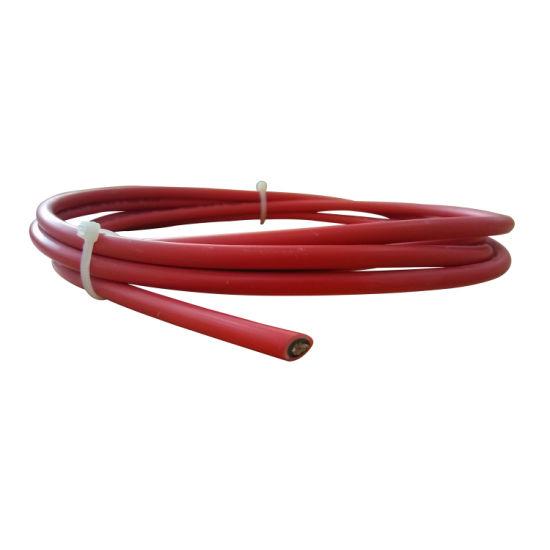

Double Insulated Solar PV Cable 4mm2 tinned copper Conductor For Solar Panels

Name: Double Insulated Solar PV Cable 4mm2 tinned copper Conductor For Solar Panels
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV1-F 1x4mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001/TUV/CE

Model Number: PV1-F 1x4mm2

Payment & Shipping Terms

Minimum Order Quantity: 100m

Price: Negotiation

Packaging Details: 250m/roll, 500m per carton

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 70000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    solar photovoltaic cable, solar dc cable


Product Name:	PV Solar Cable 4mm2	AC Voltage:	600/1000V
Conductor:	56/0.3	Color:	Black Or Red
Weight:	70kg/km	Packing:	250m/roll

Product Name:	PV Solar Cable 4mm2
AC Voltage:	600/1000V
Conductor:	56/0.3
Color:	Black Or Red
Weight:	70kg/km
Packing:	250m/roll

Description

Double Insulated Solar PV Cable 4mm2 tinned copper Conductor For Solar Panels

Double Insulated Solar PV Cable 4mm² Tinned Copper Conductor

Product Specifications

Attribute	Value
Product name	PV solar cable 4mm²
AC Voltage	600/1000V
Conductor	56/0.3
Color	Black or red
Weight	70kg/km
Packing	250m/roll

Technical Specifications

Voltage rating: 600/1000V AC, 1800V DC
Test voltage: AC 6.5KV
Temperature rating: -40ºC to +125ºC
Sunlight resistant
Ambient Temperature: -40ºC to +90ºC (Service life >25 years)
Flame Rated: Vertical flame per IEC 60332-1
Bending radius: ≥4* outer diameter

Product Dimensions

Product Code	Size (mm²)	Conductor dia. (N/mm)	Insulation dia. (mm)	Nominal Jacket dia. (mm)	Net Weight/1000m (kg)
PV1-F 1x2.5mm²	2.5	50/0.25	3.65	4.9	48
PV1-F 1x4mm²	4	56/0.30	4.2	5.1	68
PV1-F 1x6mm²	6	84/0.30	4.9	6.1	88
PV1-F 1x10mm²	10	80/0.40	5.75	7.2	132
PV1-F 1x16mm²	16	126/0.40	7.55	9.2	205

Applications

Designed for solar panel power generation systems and related wiring connections, particularly suitable for outdoor installations. Features sunlight resistance, anti-aging properties, and uses low smoke halogen-free flame retardant materials for enhanced safety.

Key Features

Low smoke, halogen-free construction
Excellent cold, UV, ozone, and weather resistance
Flame retardant with cutting and penetration resistance
Cable protection level II
150℃ photovoltaic cable radiation as insulation material
ROHS compliant with minimal insulation resistance after immersion

Electrical Properties

DC resistance: ≤5.09 Ω/km at 20℃
Insulation resistance: ≥10¹⁴ Ω·cm at 20℃, ≥10¹¹ Ω·cm at 90℃
Sheath surface resistance: ≥10⁹ Ω

Cable Construction

Conductor: Tinned copper wire (2.5, 4, 6, 10, 16 mm² PV1-F)
Insulation: >0.5mm thick low smoke halogen-free material
Sheath: Low smoke halogen-free material >0.5mm thick

Operating Parameters

Ambient temperature: -40℃ to +90℃
Maximum conductor temperature: 120℃ (200℃ for 5s in short circuit)
Voltage limit: AC 0.6/1kV, DC 1.8kV

Note: We also produce single core cables in 2.5mm², 6mm², 10mm² and 16mm² sizes, as well as dual core configurations. Please contact us for custom requirements.

Frequently Asked Questions

When can I get the quotation?

Within 24 hours of receiving your inquiry. For urgent pricing requests, please call us with complete cable specifications.

How long is the delivery time?

Typically 3-4 working days after payment, depending on order quantity.

What payment methods do you accept?

We accept T/T (bank transfer) and L/C.

Do you accept customized orders?

Yes, we accommodate custom specifications.

Do you offer OEM & ODM services?

Yes, both OEM and ODM services are available.
