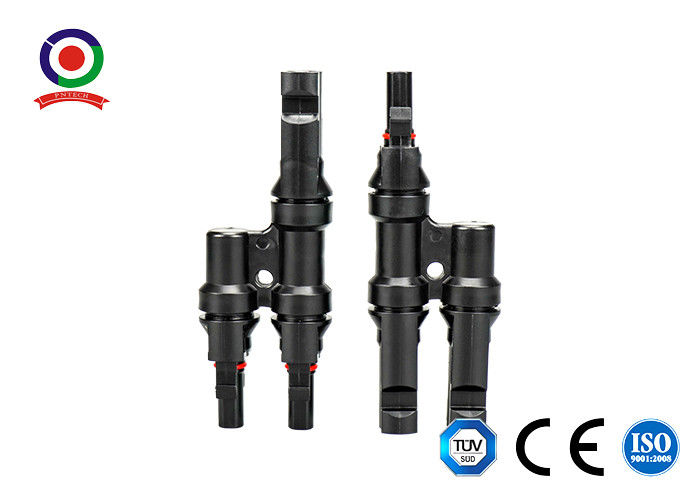

IP67 Protection 2to1 T Branch Connector Female / Male
|Product Name||T Branch Solar Connector||Packing||PP Bag|
|Gender||Female And Male||Rated Voltage||1000VDC|
|Protection Degree||IP67||Rated Current||30A|
y branch connector,
pv panel connectors
TUV CE IP67 PPO material Y Branch solar connector 1000V DC Black 30A
Rated current : 30A
Insulationg material: PPO
Ambient temperature range: -40~+90° C
Flame class: UL94-V0
Safety class: II
Shell Protection degree: IP67
Contact material: Copper,Tin Plated
Test voltage: 6KV(TUV50Hz.1min)
Insertion force: ≤ 50N
Withdrawal force: ≥ 50N
Contact resistence: 0.4mΩ
Test voltage: 6000V(TUV50Hz,1min)
Connecting System: Crimp connection
Pin dimensions: Φ4.0mm
With excellent aging resistance and UV endurance, it can be used in harsh environment. The cable connection adopts means of rivet and lock. It does not need extra instruments for the removal of plugs and removal will not cause any harm to plugs.
|Product Name||2 to1 T branch connector|
|voltage rating||≤DC 1000V|
|pollution degree||CAT III/2|
|shell material||resistance material,PP0|
|connecting system||cromp connection|
|contact resistance of plug and connectors||1MΩ|
|testing voltage||DC 6000V(50Hz,1min)|
|contact material||copper, Ag plated|
|insertion force/withdrawal force||≤50N/≥50N|
|inner material||copper tin plating|
|Connecting System||Crimp connection|
|Contact material:||Copper,Tin Plated|
1. low power loss
2. solarconnector for solar power system
3. allthe connection made by double fixed connection
4. withthe capacity of anti-aging and resistance to ultraviolet radiation on the outcover
5. withconvenient installation, strong commonality
6. to meet the using requirement under bad outdoor condition
1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.
3. The end product must provide protection from electric shock.
4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.
5. Disconnected connectors should be protected from dirt and water with sealing caps.
6. Plugged parts are watertight IP67

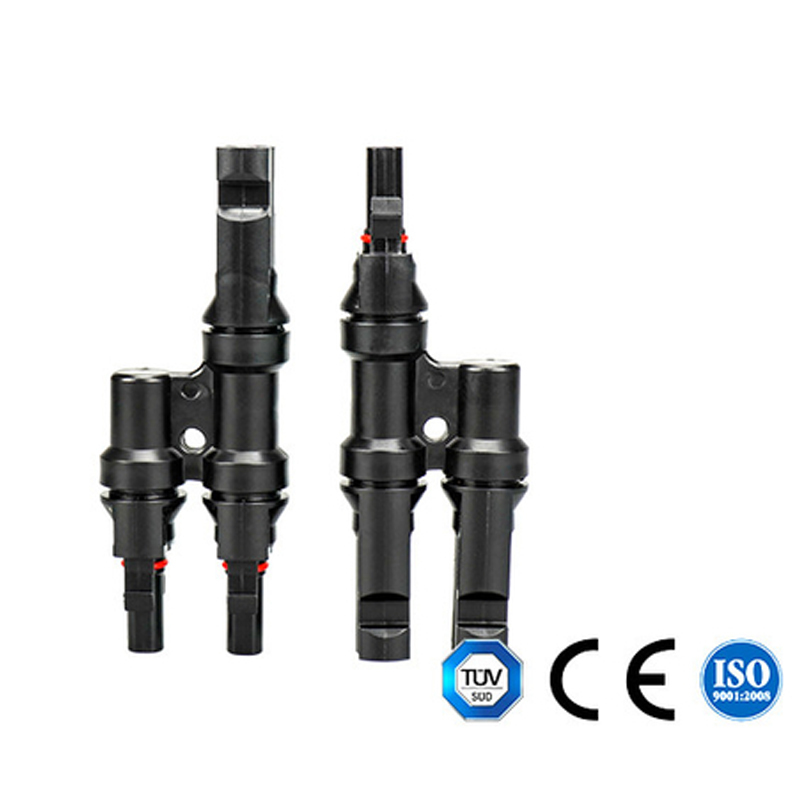

Picture of Y branch solar connector
