TUV EU En50618 1500V DC 1.5sqmm Photovoltaic Solar Power Cable for Solar System
Flexible cables suitable for mobile and fixed installation; Suitable for connection between photovoltaic panels, and photovoltaic panels to the AC inverter; Suitable for indoor and outdoor use.
The materials used in the construction of these cables exceed the thermal endurance test specified in the standard EN 60216 for +120 ºC (temperature index). Compliance with this test provides that, with proper installation, operation and maintenance, the estimated life of the cable is 30 years at 90 °C.
|Type||Cross Section||Strand Design||Conductor Diameter||Conductor Resistance||Outer Diameter||Rated Voltage||Rated Current|
|H1Z2Z2-K 1x2.5mm2||2.5mm2||36x φ0.285mm||2.0mm||8.21 Ω/km||5.4mm||1500VDC||50A|
|H1Z2Z2-K 1x4mm2||4mm2||56x φ0.285mm||2.6mm||5.09 Ω/km||5.9mm||1500VDC||70A|
|H1Z2Z2-K 1x6mm2||6mm2||78x φ0.285mm||3.3mm||3.52 Ω/km||6.7mm||1500VDC||95A|
|H1Z2Z2-K 1x10mm2||10mm2||80x φ0.4mm||4.4mm||1.95 Ω/km||7.4mm||1500VDC||98A|
|H1Z2Z2-K 1x16mm2||16mm2||120x φ0.4mm||5.2mm||1.24 Ω/km||9.2mm||1500VDC||132A|
Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor. Resistance to sunlight, anti-aging, Using the low smoke halogen-free flame retardant materials, higher grade, more safety.
|The product description||Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.|
|Product features||Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.|
|Flame retardant, cutting resistance and penetration resistance.|
|Cable protection level Ⅱ level.|
|With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.|
|It conforms to ROHS, and the insulation resistance is small after immersion.|
|Electrical||1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km|
|2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm|
|3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.|
|Cable structure||Conductor: tinned copper wire 2.5, 4,6,10,16 mm2 PV1 - F|
|25,16 and 10, 6,4,2.5 mm2 PV wire|
|Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.|
|Sheath: low smoke and halogen free material thickness > 0.5mm.|
|Detailed parameters||Ambient temperature: - 40 ℃ ~ + 90 ℃|
|The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)|
|Limited voltage: AC0.6/1kv dc1.8kv.|
(We also produce single core of 2.5mm2, 4mm2, 6mm2,10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

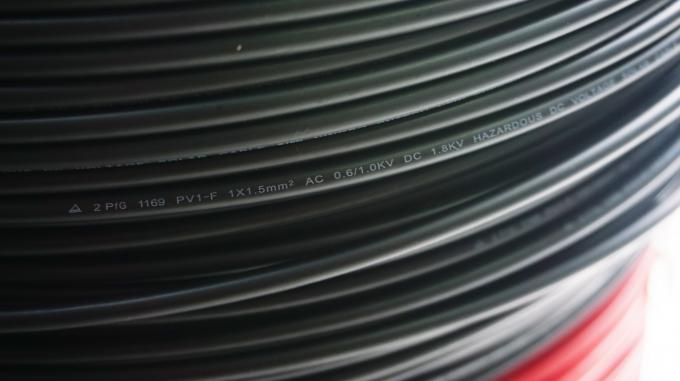

Picture of DC solar cable 1.5mm2
